OS
Asmart 3.0 based on Android 13
-
Processor
Cortex A53 Quad-Core, 2.0GHz
Cortex-M4F, Maximum192MHz
-
Memory
2GB RAM+8GB ROM
2GB RAM+32GB ROM（optional）
-
Displays
4", TFT IPS, 480x480, Capacitive Touch Screen 2-points Touch
-
Buttons
1 settings button
-

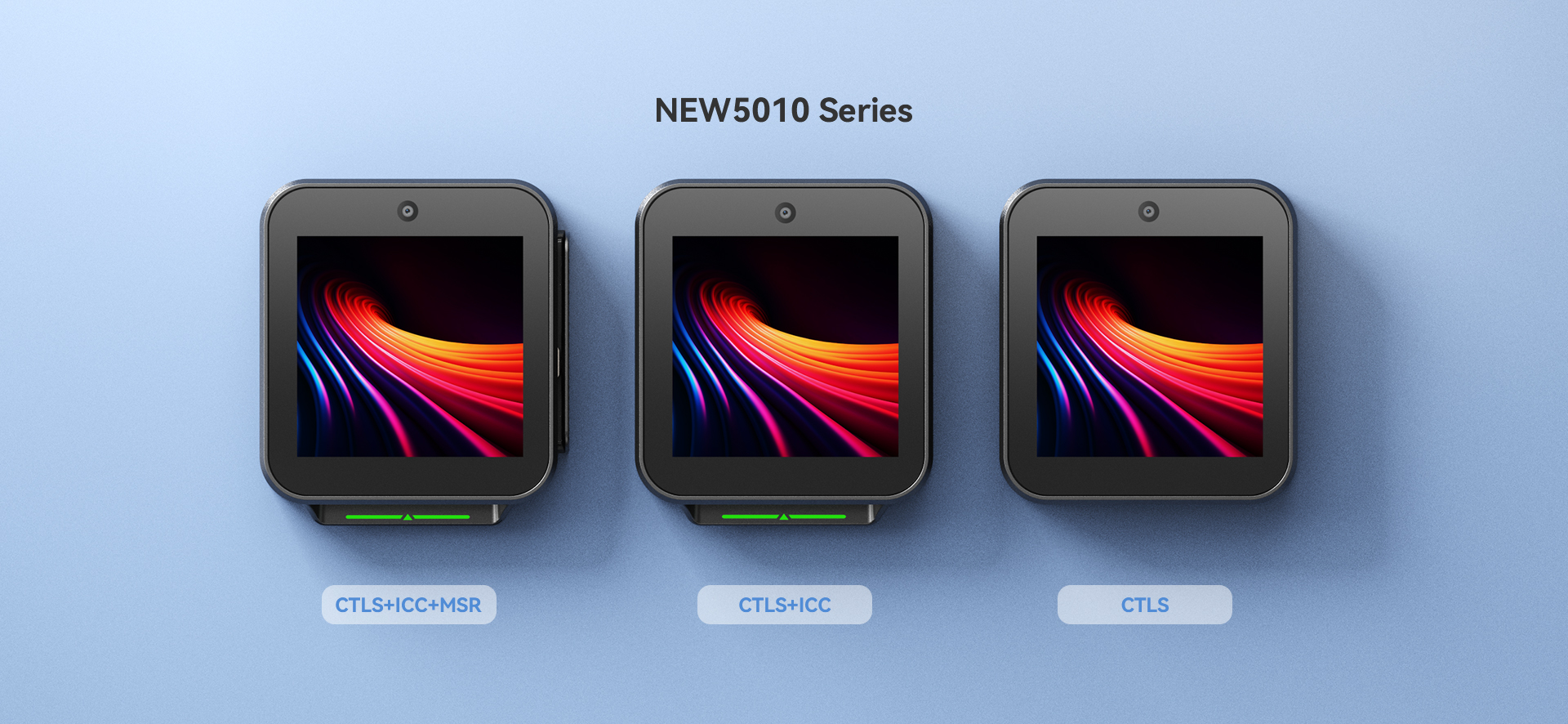

Card Reader

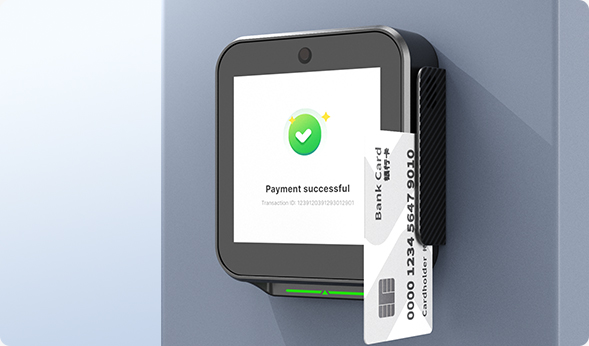

Magnetic Card Reader (Optional)

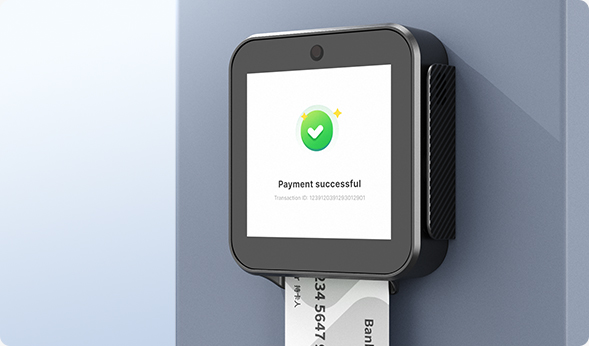

Smart Card Reader (Optional)

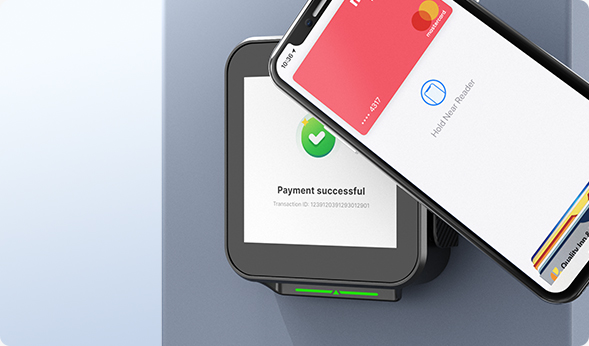

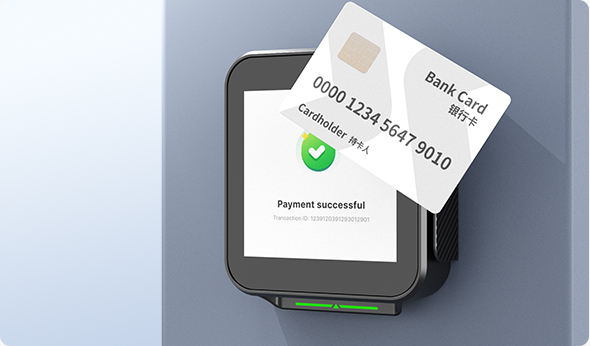

Contactless Card Reader
-

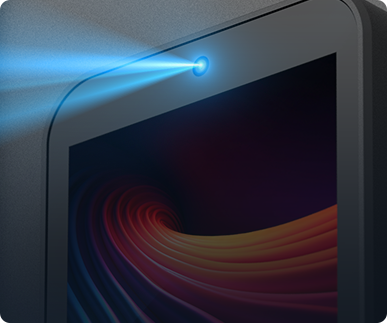

Camera
Front：2MP FF, 5MP FF（Optional）

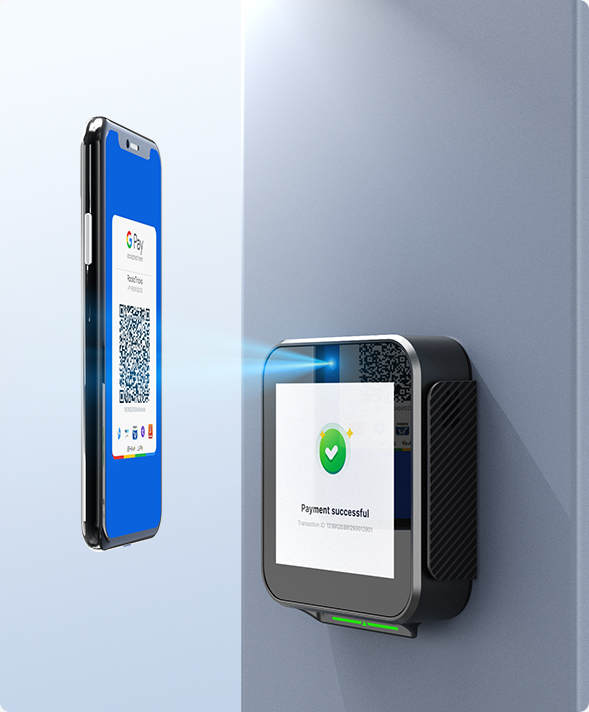

Reads 1D & 2D Codes
-
Communication
4G/3G/2G
WiFi：(802.11 a/b/g/n)2.4G/5G；Bluetooth 5.0
-
GPS
GPS/GLONASS/BEIDOU
-
Card Slots
1*Mini SIM+1*Mini SAM
1*Mini SIM+1*Mini SAM+1*TF Card(Optional)
1*eSIM (Optional)
-
Audio
1*Buzzer.
Optional, 1*speaker
-
Adapter / Power
Input: 100-240V AC, 50/60Hz
Output: 5V DC, 3A
-
Peripheral Ports
1*Type-C USB (Requires customized cable).
1*SMA(4G)(optional)
-
Water & Dust Proof
IP65
-
Impact Protection
IK08 or IK09
-
Remote download
Support OTA update
-
Language
English
-
Working Environment
-10℃ ~ +50℃(Standard Version)
-20℃ ~ +70℃(Pro Standard Version)
5%~95% Non-condensing
-
Storage Environment
-20℃ ~ +60℃(Standard Version);
-30℃ ~ +75℃(Pro Standard Version);
5%~95% Non-condensing
-
Dimensions
112*96.3*26.3mm(L×W×H); Cutout: 78.5*67.5mm
-
Weight
330g
-
Certifications
PCI PTS 6.X, EMV L1&L2, EMV CL L1, Quick pass, Visa PayWave, MasterCard PayPass, American Express, Discover D-PAS, JCB, Felica, TQM, RoHS，Interac flash, IP65, IK08, ATEX, etc.
-
Accessories
Mounting Fixture

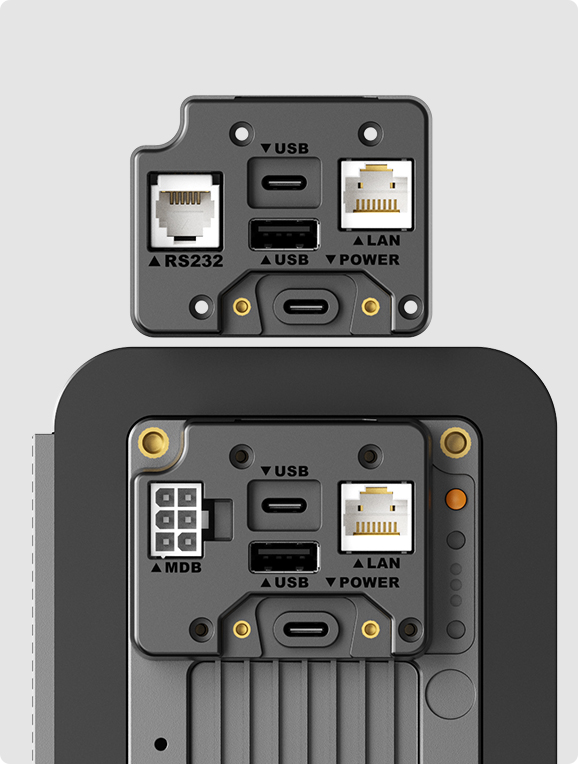

HUB1: 1*Ethernet, 1*USB-C(only power), 1*USB-C Device, 1*USB-A Host，1*RS232（Optional）
HUB2: 1*Ethernet, 1*USB-C(only power), 1*USB-C Device, 1*USB-A Host，1*MDB(Master)（Optional）
HUB3: 1*Ethernet, 1*USB-C(only power), 1*USB-C Device, 1*USB-A Host，1*MDB(Slave)（Optional）
1*External 4G Antenna（Optional）
