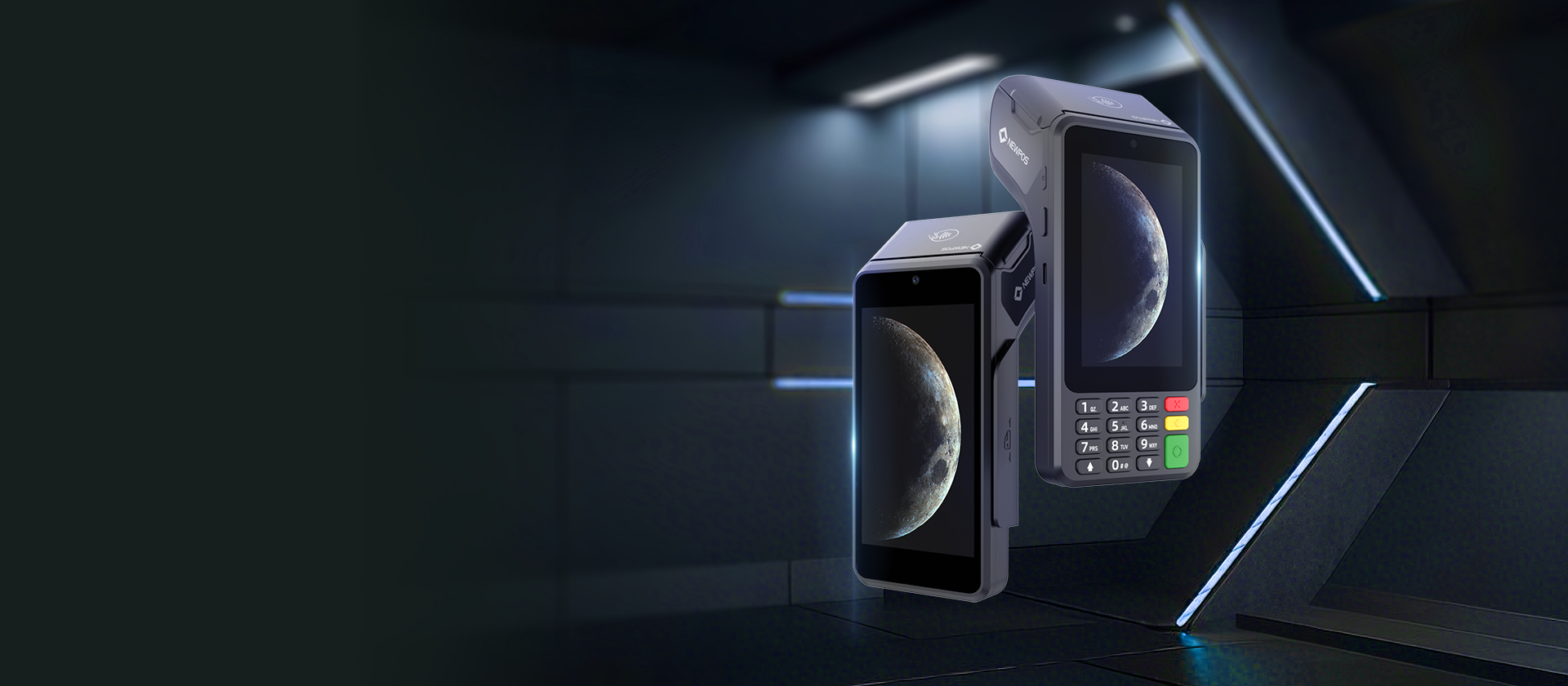

NEW9810

Smart POS Terminal
With Keypad /Full Screen

Versatile smart POS for various scenarios

Processor

Cortext-A53 Quad Core, 2.0GHz CPU

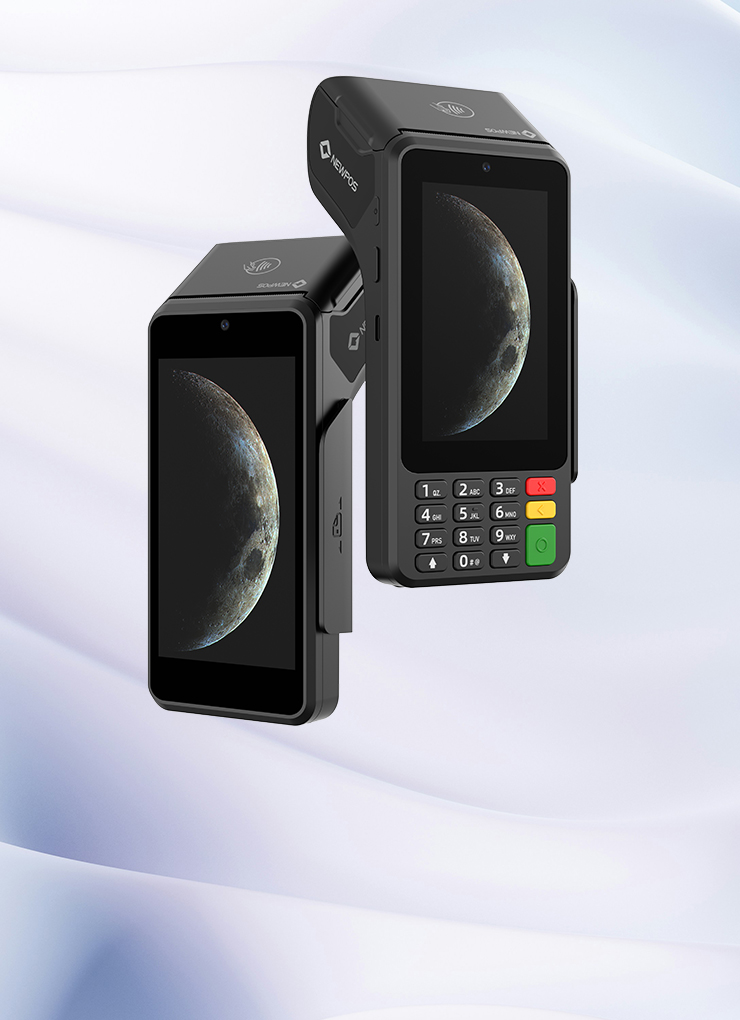

Two display sizes

4 inch with keyboard
5 inch Full Screen

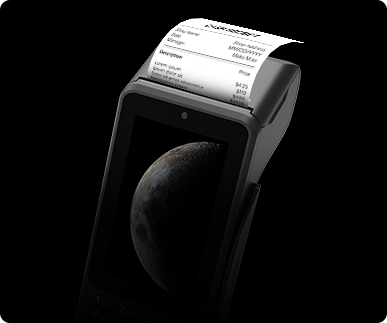

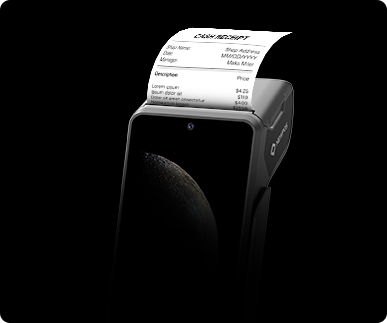

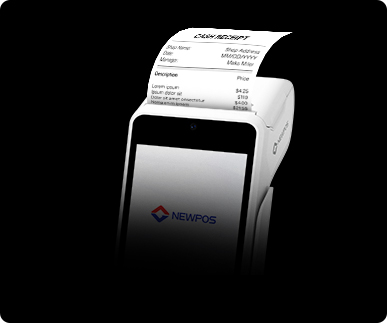

Fast Thermal Printer

Printer speed: 80mm/s.

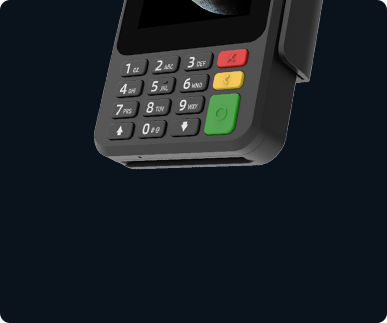

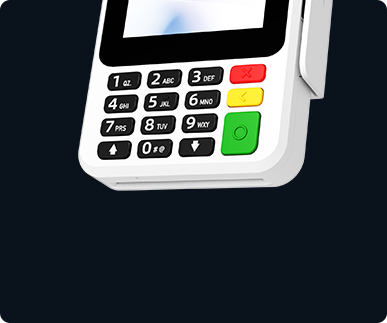

Keypad

Durable and comfortable design Compatible design for the visually impaired
Long-lasting Battery

7.2V/2600mAh Option:7.2V/3350mAh

High Performance

NEW9810 is equipped with a Quad-Core 2.0GHz high-performance CPU, capable of smoothly running the Android 13 system on 1GB DDR + 8GB eMMC

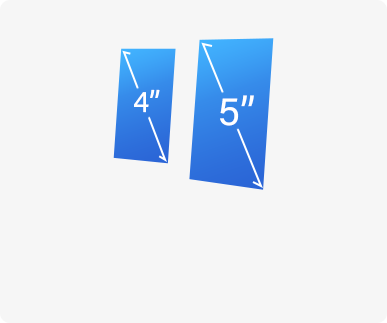

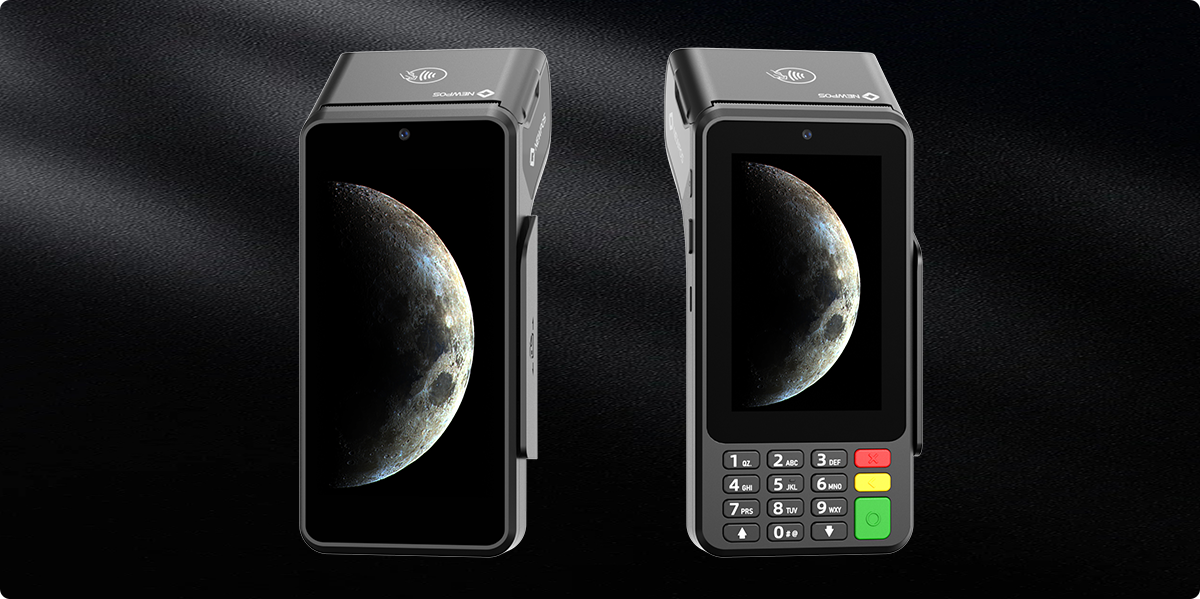

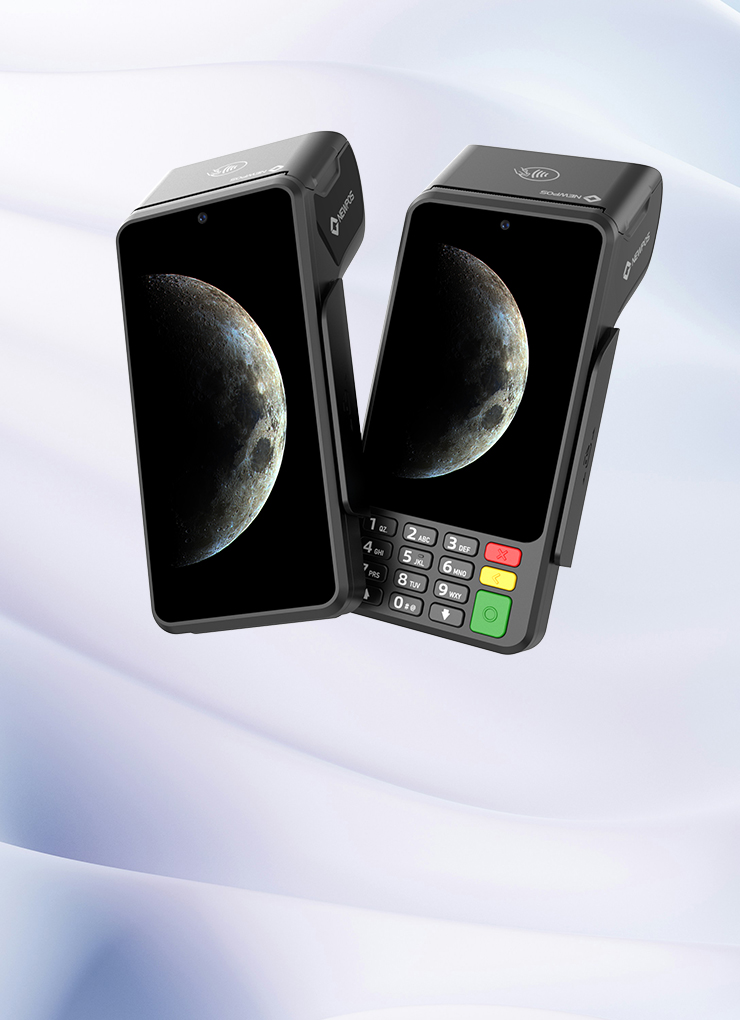

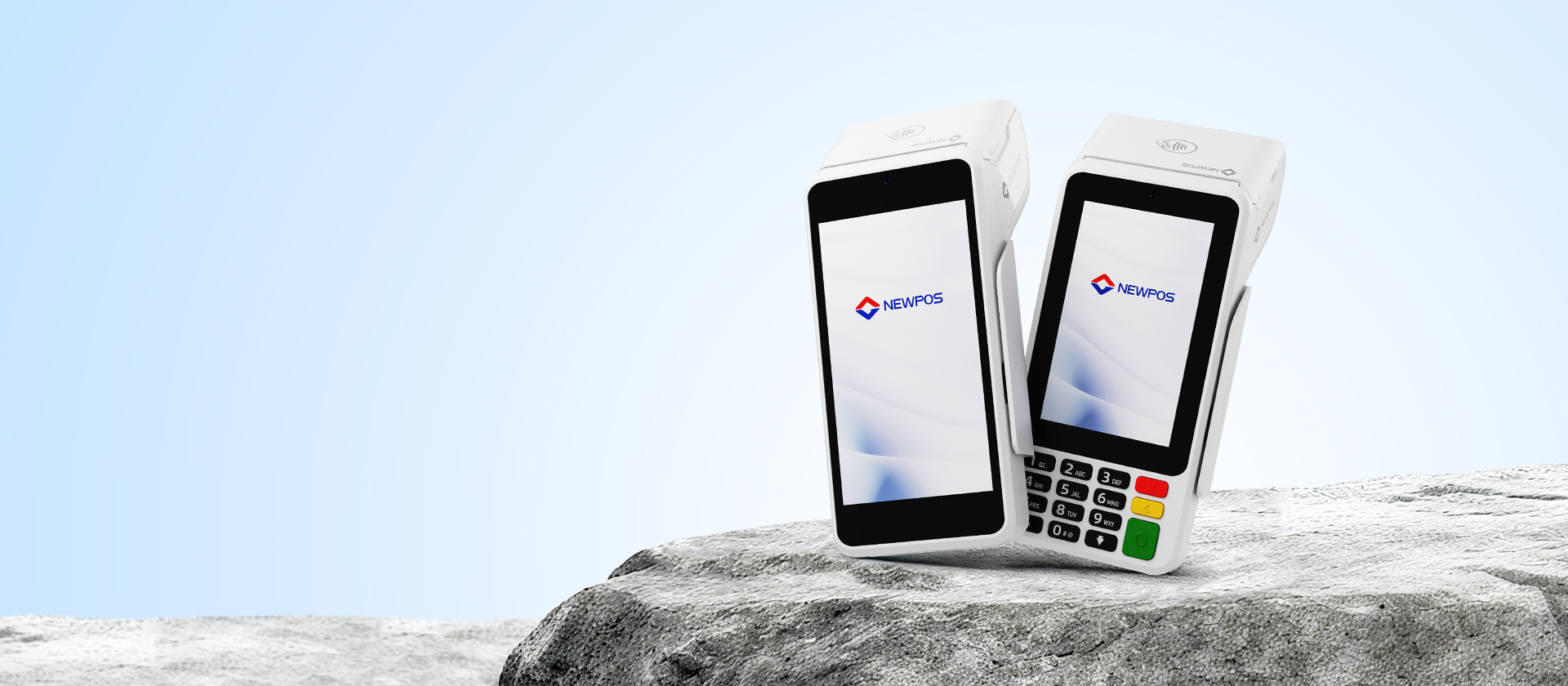

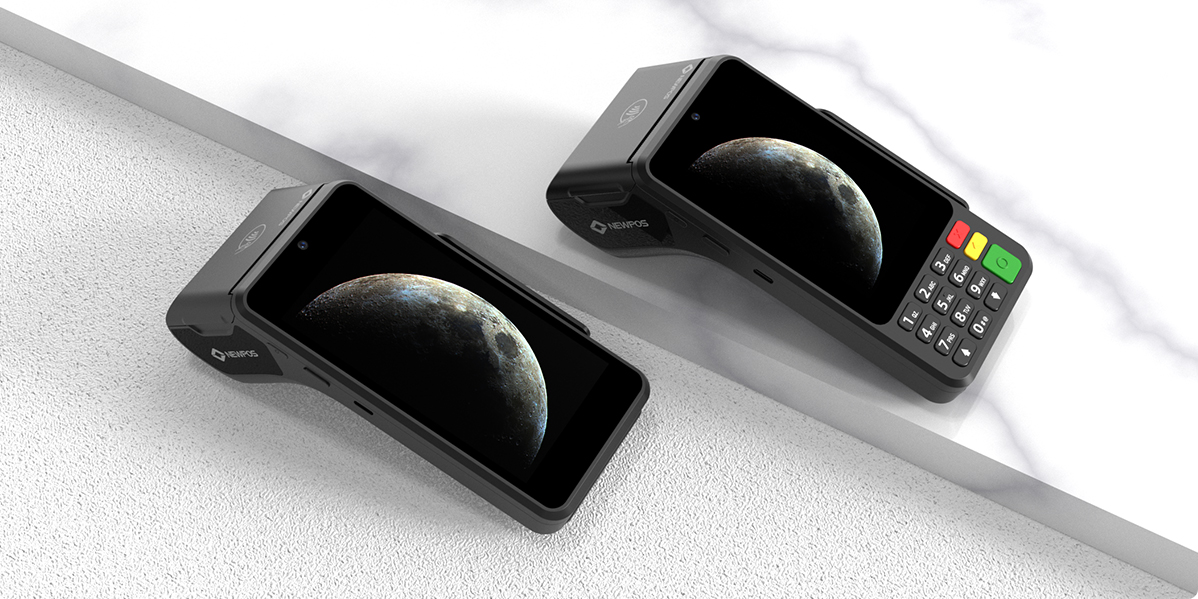

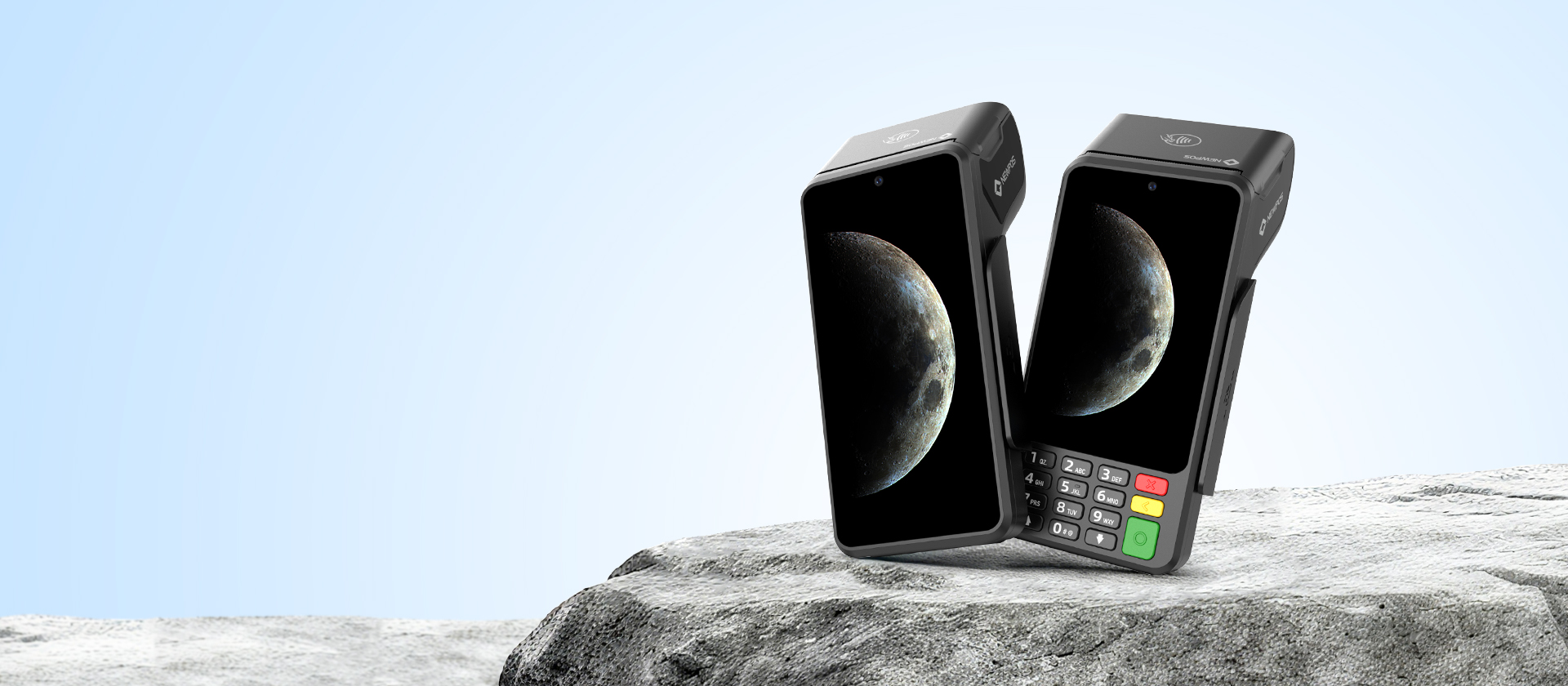

Two display sizes,one solution

The NEW9810 platform offers dual screen configuration options, providing enhanced versatility for a broader range of application scenarios

Advanced Communications

The NEW9810 integrates multiple wireless communication bands, enabling secure payments anytime, anywhere.

4G/3G/2G
Wi-Fi 2.4GHz && 5.0GHz
Bluetooth 5.0

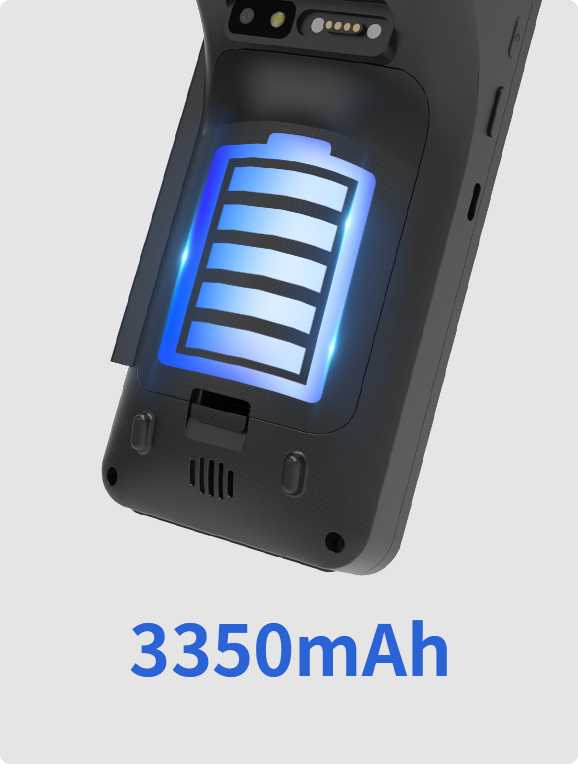

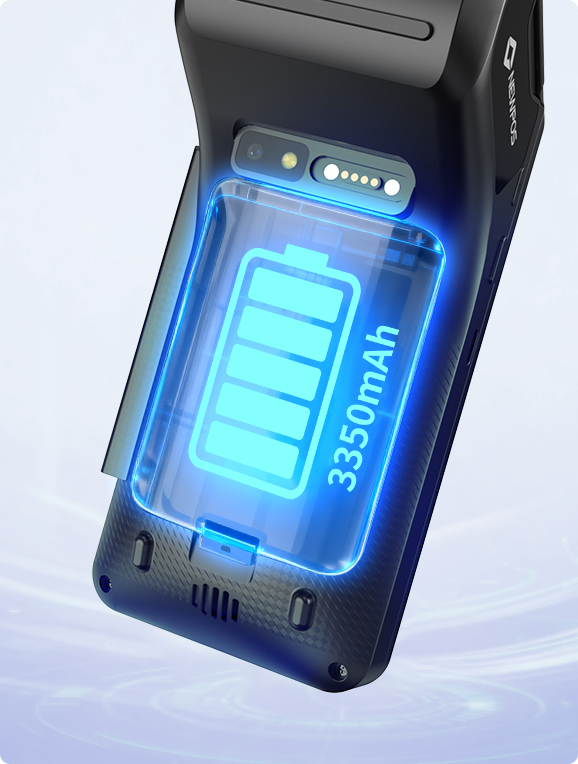

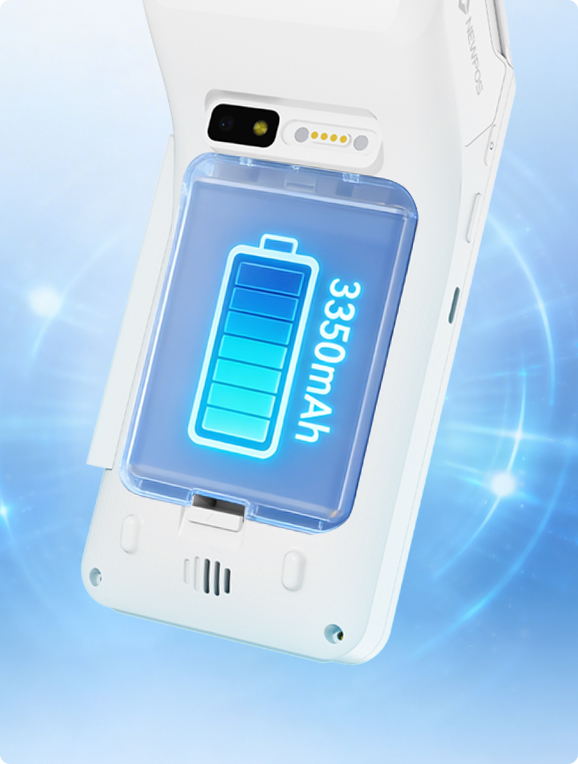

Long-lasting Battery

Equipped with a high-voltage dual- cell lithium battery, paired with a 7.2V/2600mAh capacity, the product offers extended usage time.

Optional high-capacity
configuration: 7.2V/3350mAh

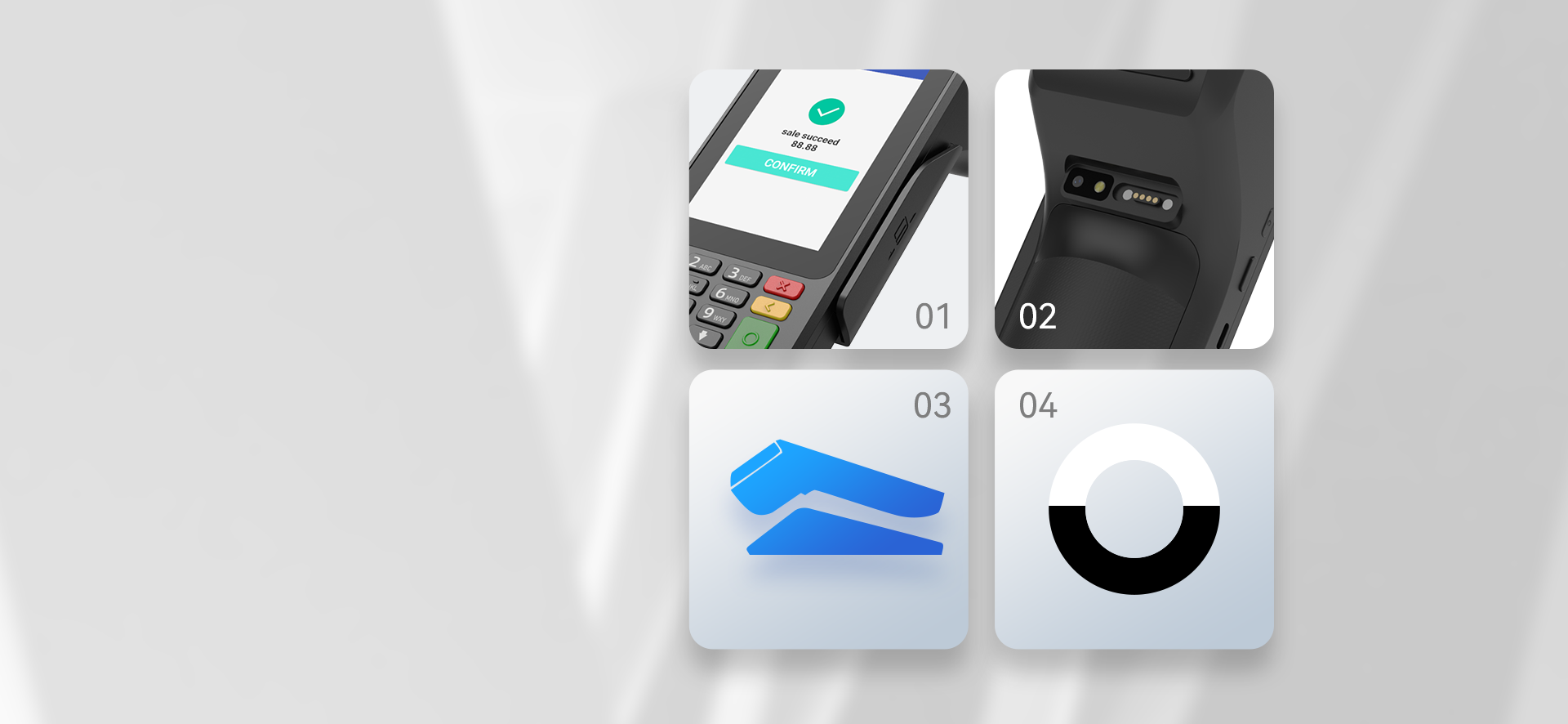

More options

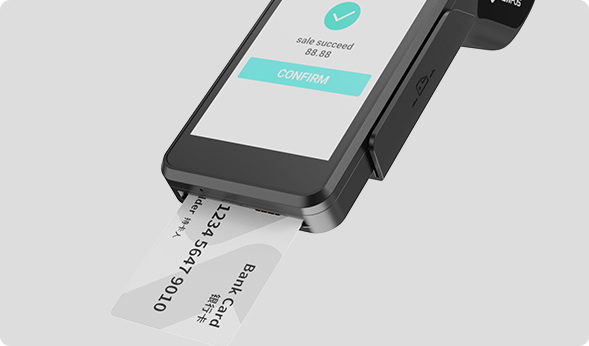

01、Magnetic stripe card function
02、Magnetic charging interface
03、Charging cradle
04、Customized Color

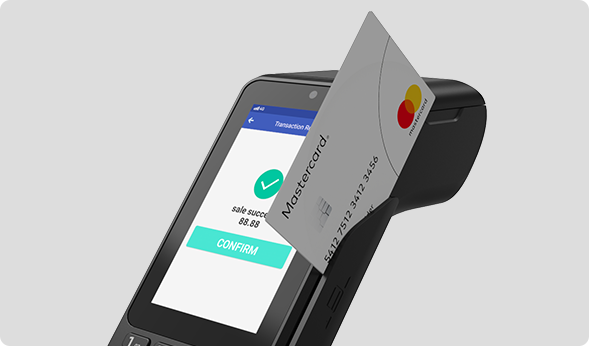

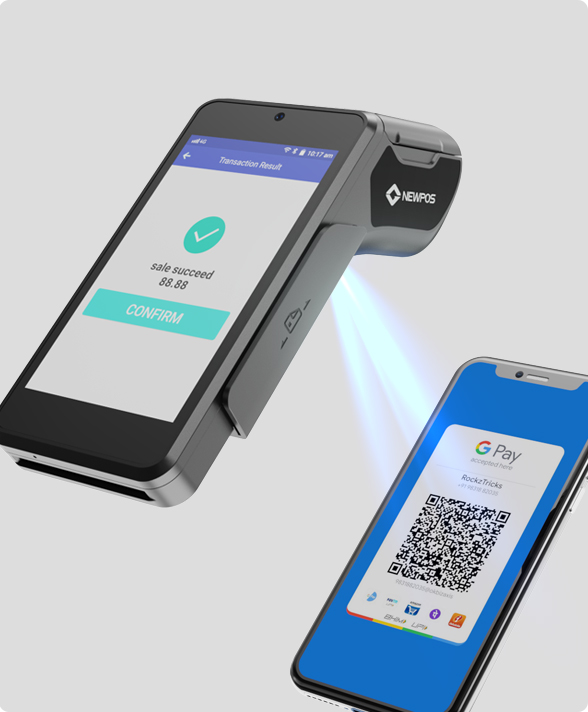

Payments Methods

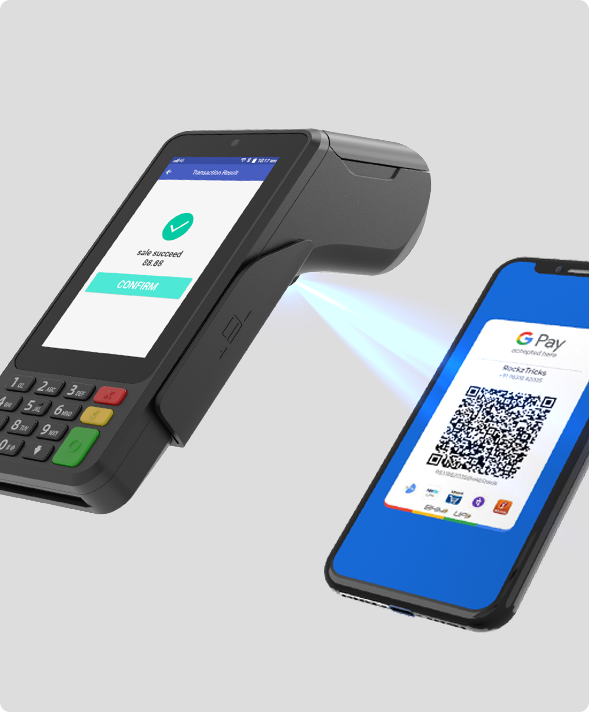

QR codes

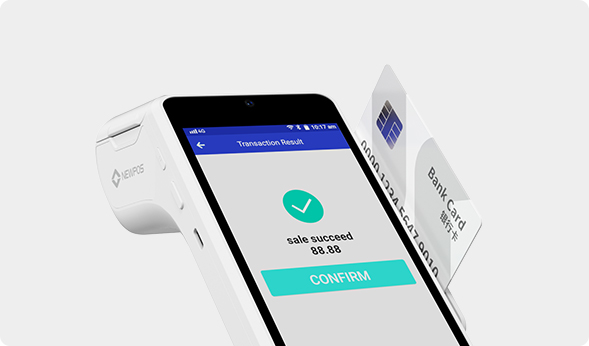

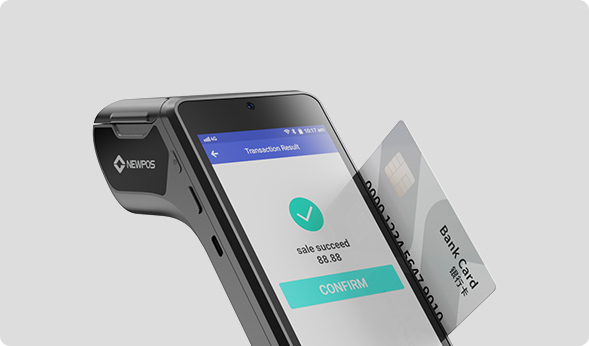

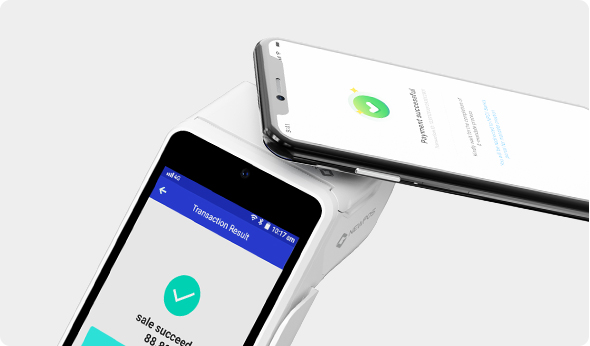

NFC

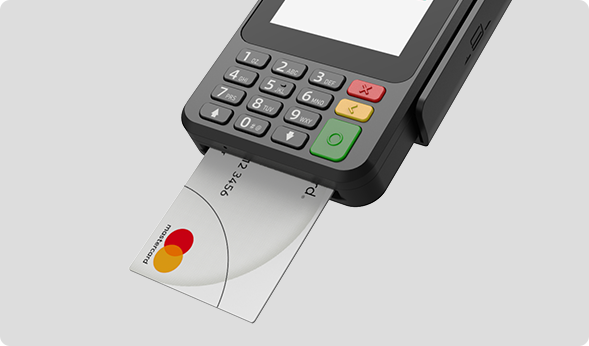

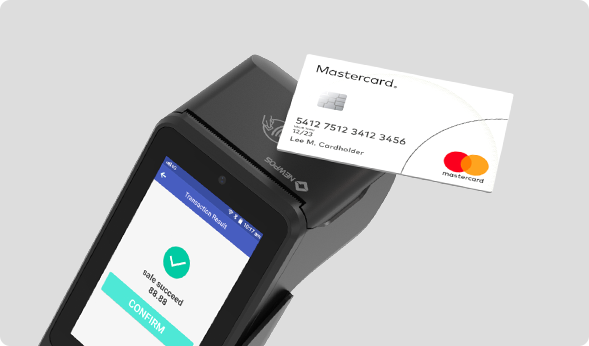

Magnetic Card

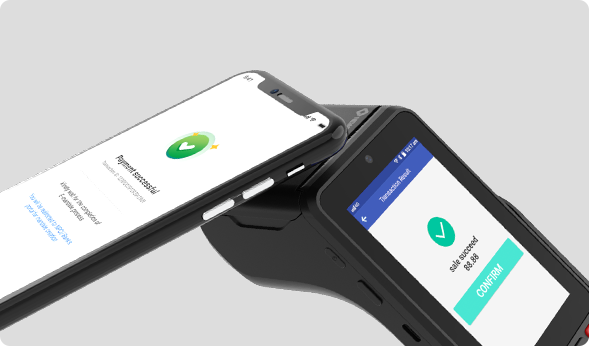

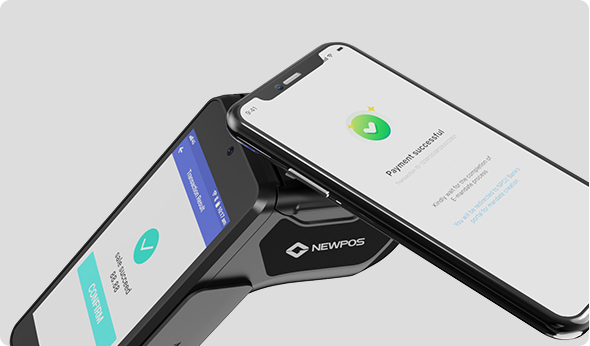

Mobile Payment

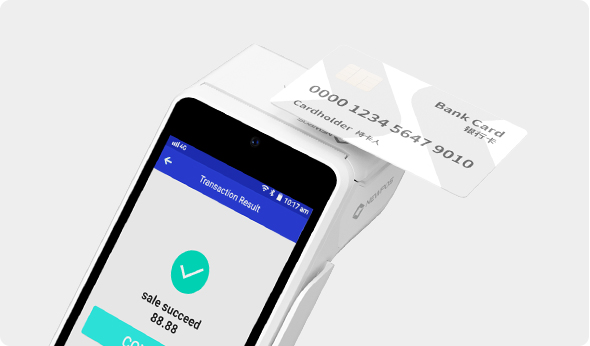

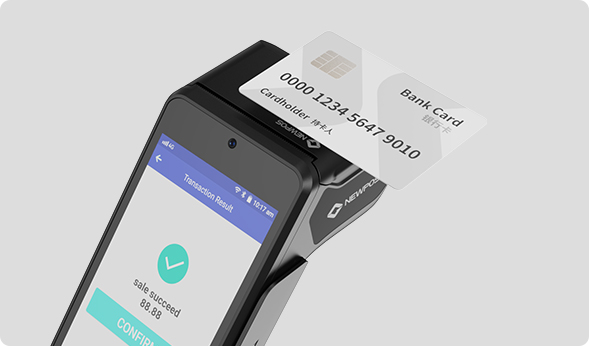

IC Card

Flexible Adaptability

Restaurants, retail, banks, government, hospitals

Retail Restaurants Hospitals Banks Hotels

Specifications

OS

Asmart, Powered by Android 13
Processor

Cortex A53 Quad-Core, 2.0GHz + Secure Processor
Memory

1GB RAM + 8GB Flash
2GB RAM + 32GB Flash(Optional)
Extended microSD Card Slot Up to 128GB
Card Readers

Magnetic Stripe | Chip & PlN | Contactless
Chip & PlN | Contactless (Optional)
Cameras

Front: N/A
Front: 2MP Fixed Focus(Optional)
Rear: 0.3MP Fixed Focus
Rear: 5MP Auto Focus, with Flashlight (Optional)
Wireless Communication

4G/3G/2G
Wi-Fi (802.11a/b/g/n/ac) 2.4G&5G
Bluetooth 5.0
Battery

7.2V/2600mAh/18.72Wh (Equal to 3.6V/5200mAh)
7.2V/3350mAh/24.12Wh (Equal to 3.6V/6700mAh)(Optional)
Printer

Speed: 80mm/sec | Paper Roll Outer Diameter: 40mm | Paper width: 58mm
Card Slots

2 Nano SIM + 2 Micro SAM + 1 SD
eSIM + 1 Nano SIM + 2 Micro SAM + 1 SD(Optional)
Positioning

GPS I GLONASS I BEIDOU | GALILEO
Audio

1 Speaker
1 Microphone(Optional)
Ports

1 USB Type-C OTG | 4 PIN POGO PIN
Adapter

Input: 100-240V AC, 50Hz/60Hz | Output: 5.0V DC, 2.0A
Operating Environment

Operating Temperature: 0°C~50°C (32°F~122°F)
Relative Humidity: 5%~95% (Non-Condensing)
Storage Environment

Storage Temperature: -20°C~60°C (-4°F~140°F)
Relative Humidity: 5%~95% (Non-Condensing)
Accessories

Charging Base: 1 Power Port (Type-C) (Optional)
Certifications

PCI PTS 6.x | EMV L1 & L2 | EMV CL1 | Visa PayWave l MasterCard PayPass | Unionpay Quickpass | American Express | Discover D-PAS | JCB J/Speedy | Anatel | ABECS | MasterCard TQM | CE | RoHS
Displays

NEW9810
4" IPS, 480 x 800 Pixels
Multi-Point Capacitive Touch Screen

NEW9810F
5" IPS FW + 480 x 854 Pixels
Multi-Point Capacitive Touch Screen
5" IPS HD + 720 x 1280 Pixels (Optional)
Multi-Point Capacitive Touch Screen
Keys / Buttons

NEW9810
17 Keys: 10 numeric keys | 5 function keys | 1 Power ON/OFF | 1 Custom Key
Adjustable Backlight(Optional)

NEW9810F
1 Power ON/OFF | 1 Custom Key
Physical

NEW9810
178 x76.8 x66.1mm, 380g (including battery)

NEW9810F
178 x76.8 x66.1mm ,390g (including battery)
