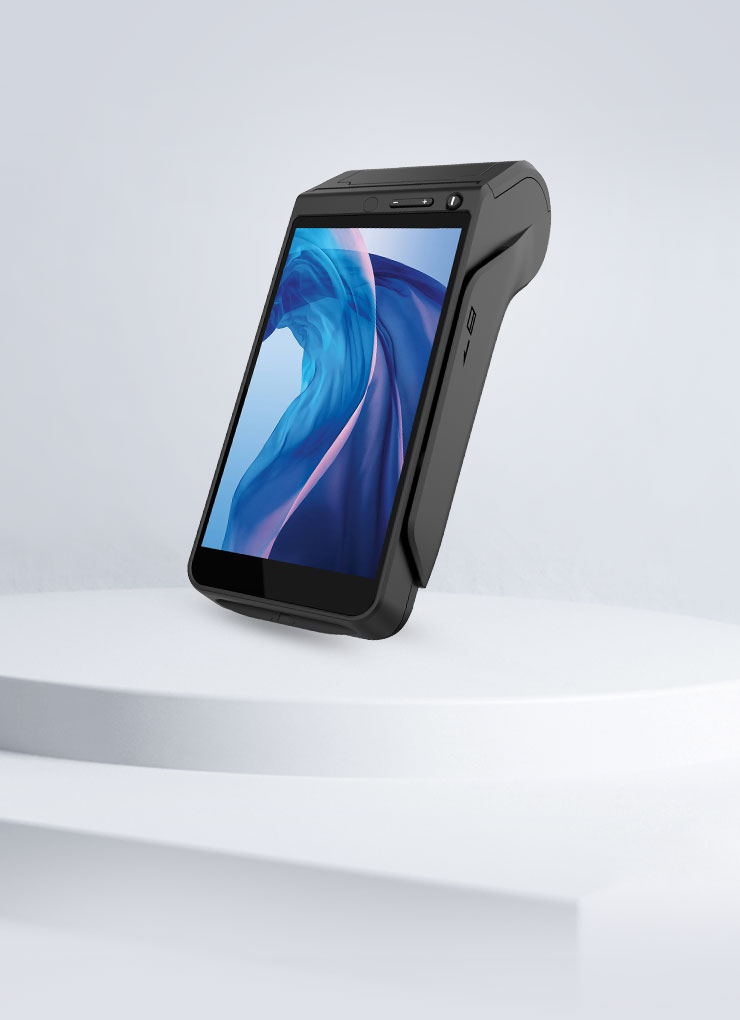

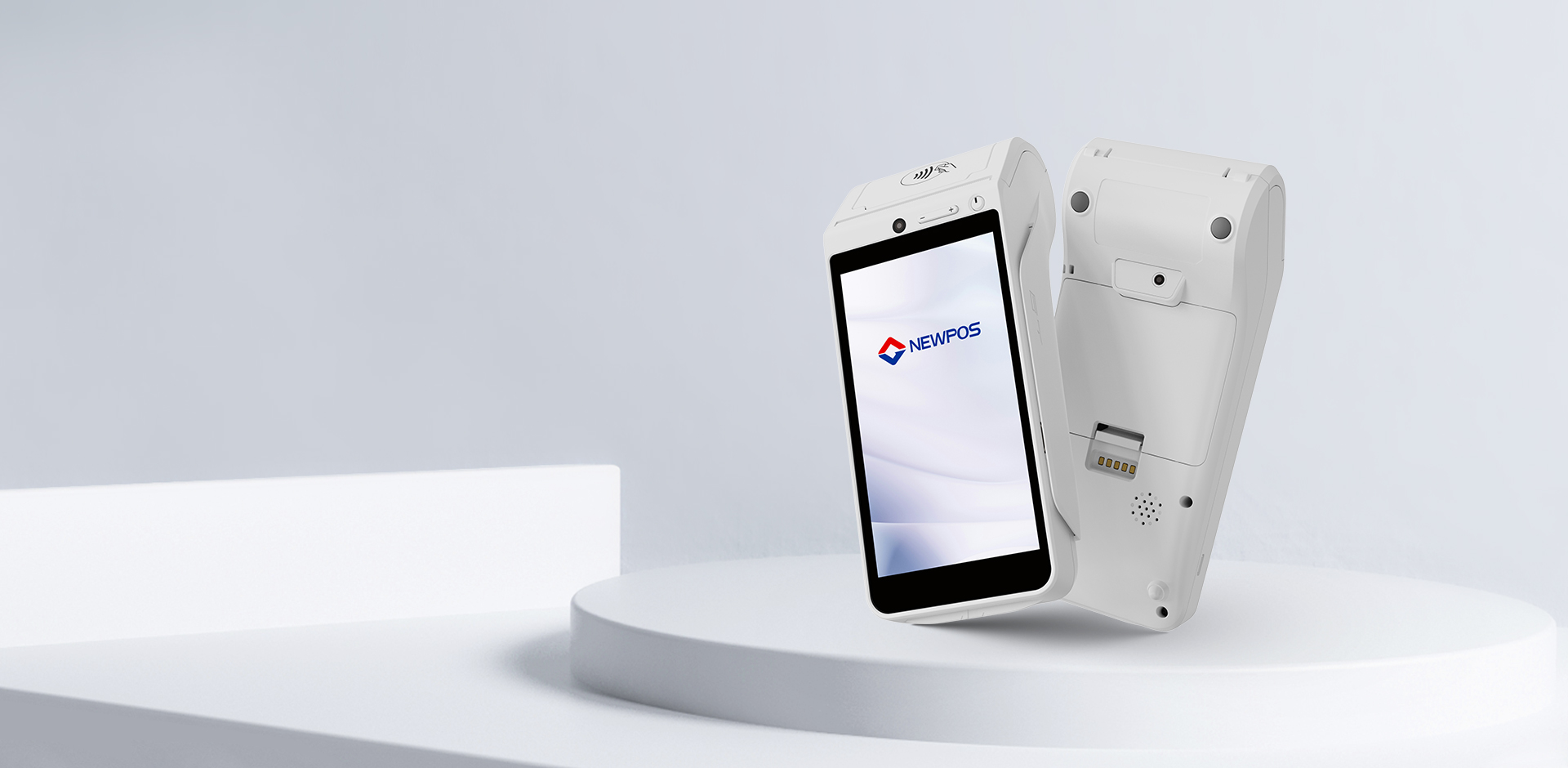

NEW9220
Smart POS Terminal
Inheriting the classic,Looking towards the future
CPU
Quad-core Cortex A53
  • 58mm
    A thermal printer
  • 5.5 inch
    HD Touchscreen. 720 x 1280
  • Double Camera
    0.3 MP front camera 5 MP rear camera
  • Battery
    7.2V/2600mAh
Powerful Performance, Superior Experience
The advanced quad-core 1.6G processor has strong performance and provides hardware assurance for a convenient and fast payment experience

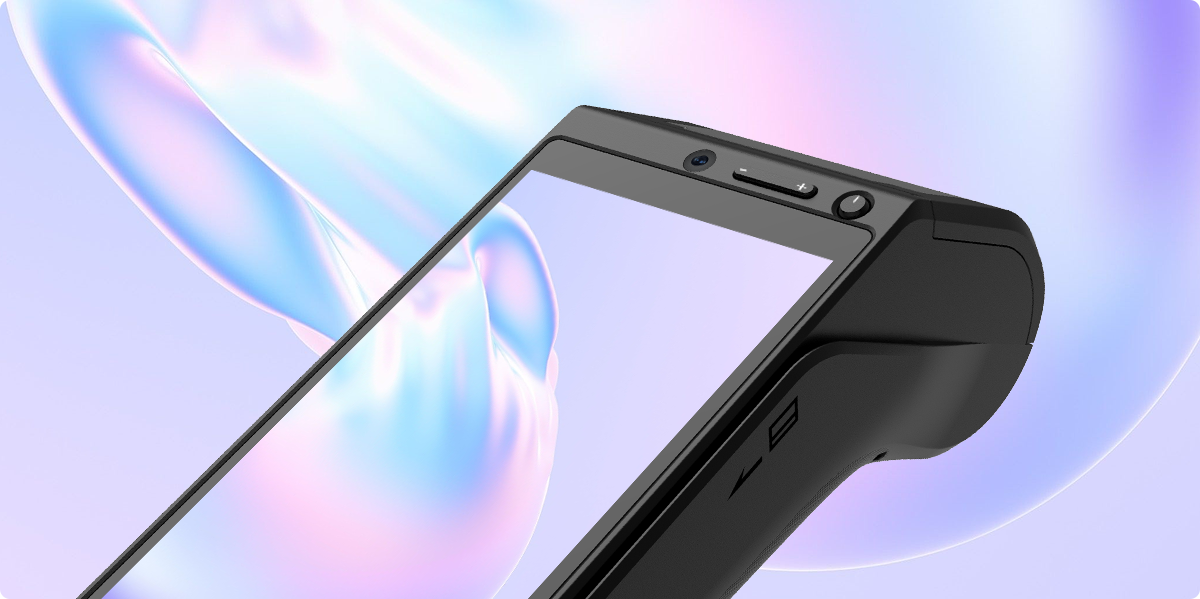

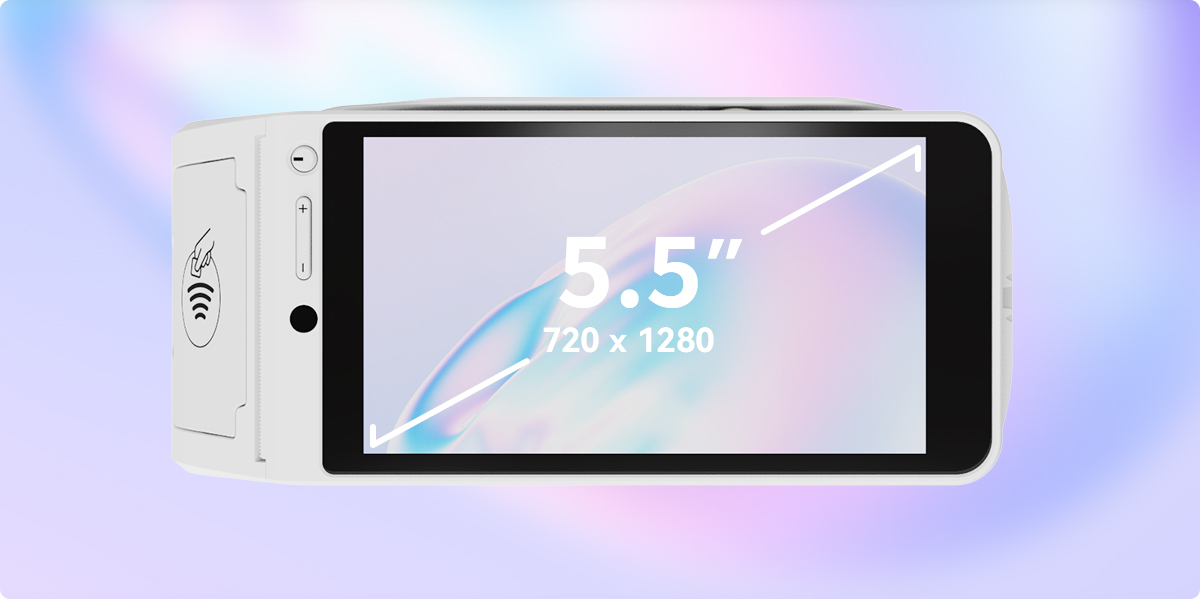

Splendid Screen Display
The 5.5-inch touch screen adjusts its brightness based on current lighting conditions and provides you vivid images and fascinating interaction experience.

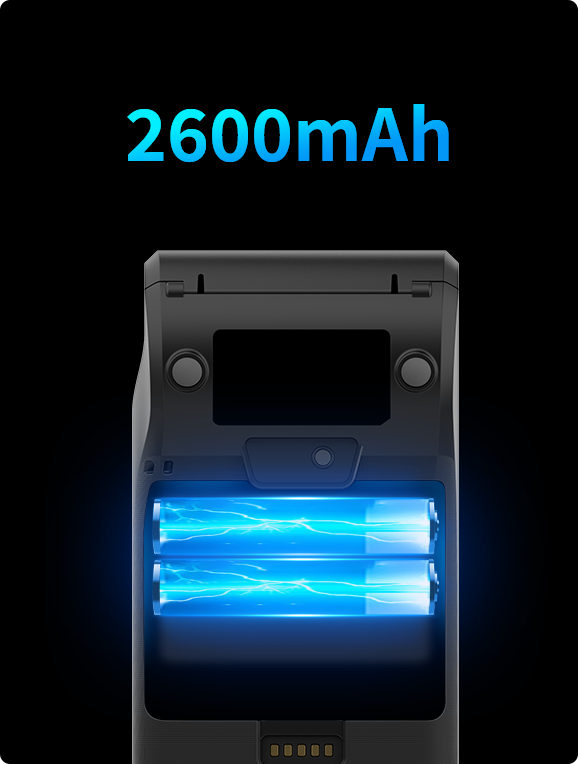

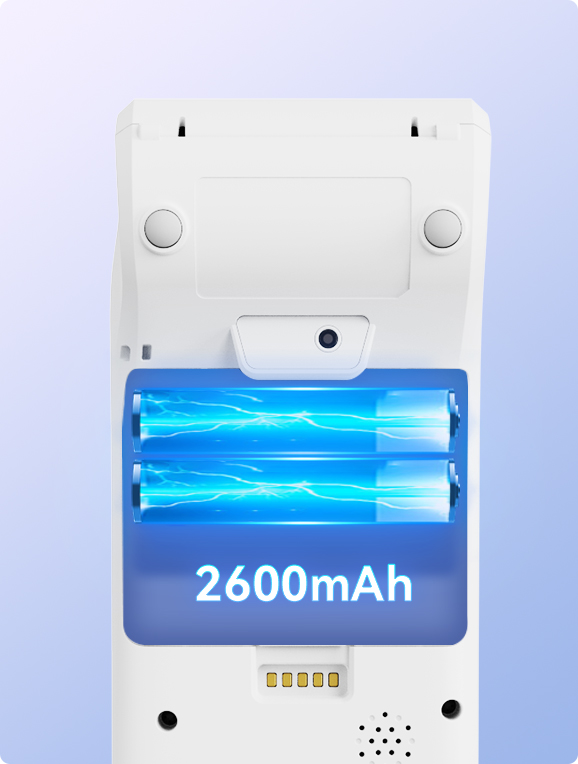

  • Long Battery Life

    Outstanding 7.2V/2600mAh battery capacity can support a full day's use with a single charge.

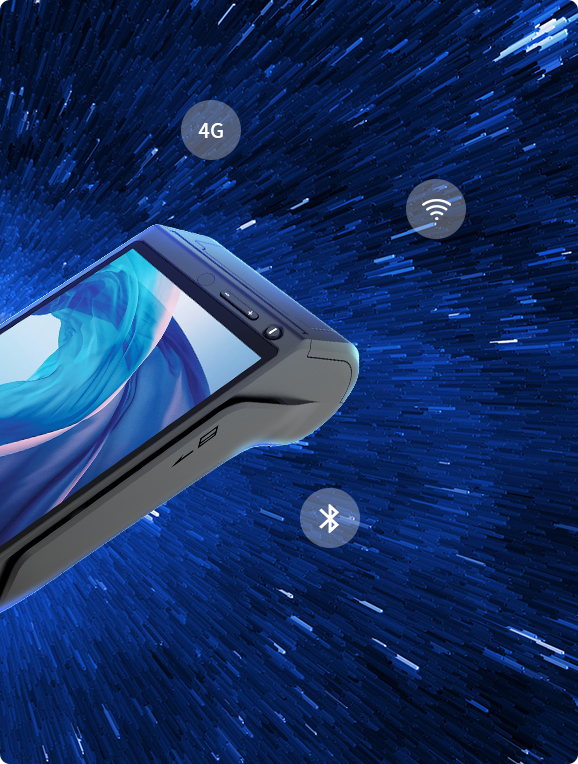

  • All Solutions For Full Connection

    With the help of solutions for full connection, you could make payment or process data rapidly and securely on the spot through: 2G/3G/4G, Wi-Fi,Bluetooth.

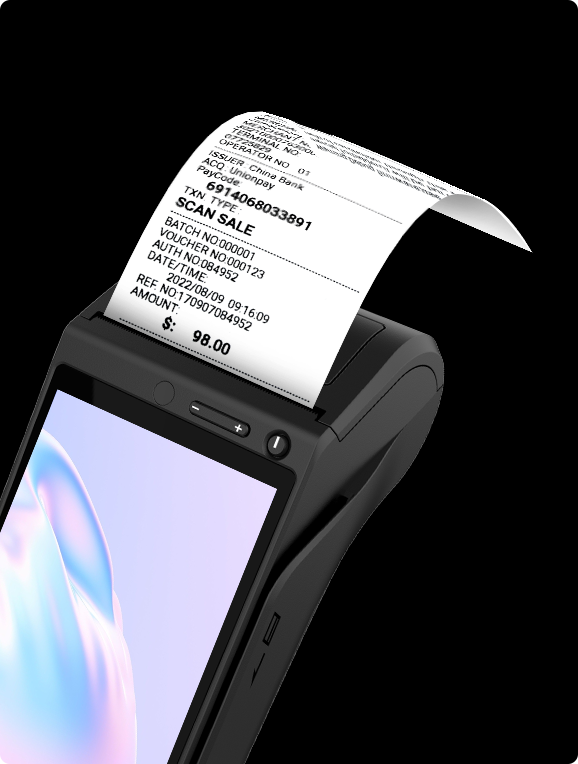

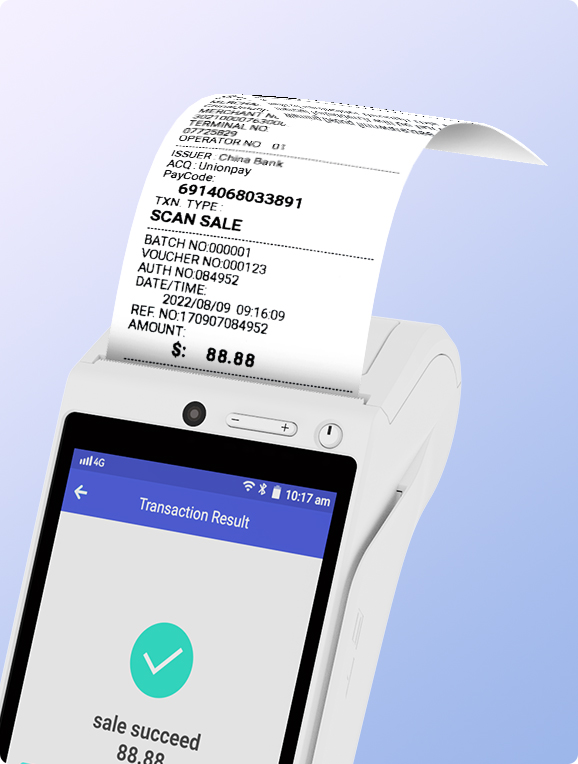

  • High-Speed and Portable Printer

    The NEW9220 has a built-in high-speed thermal printer, which can easily and quickly print receipts anytime, anywhere.

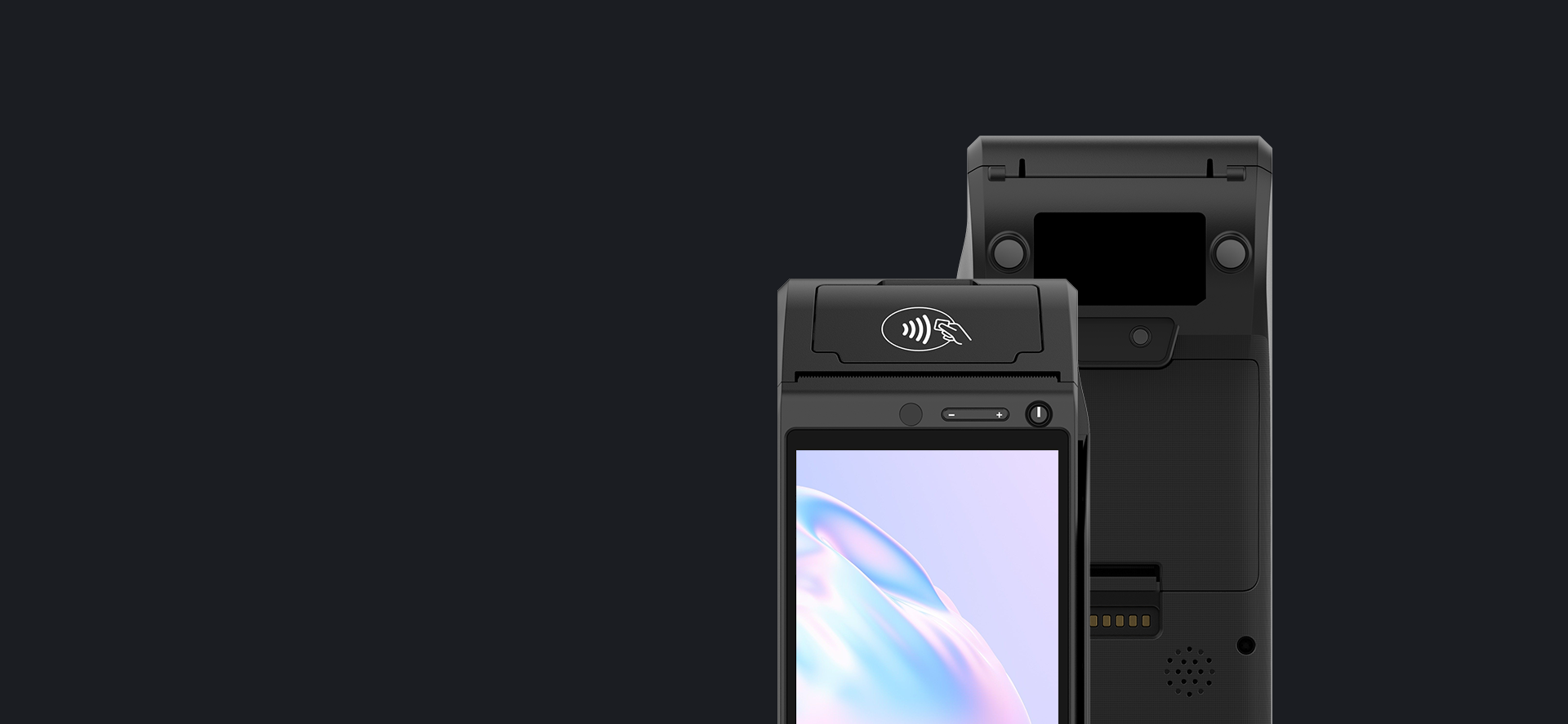

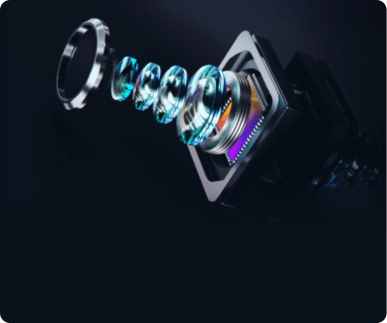

Dual Camera

0.3MP Front camera and 5MP autofocus rear camera catch every detail of the codes, and makes payment more rapid and safer.

  • 0.3MP
    Front
  • 5MP
    Rear

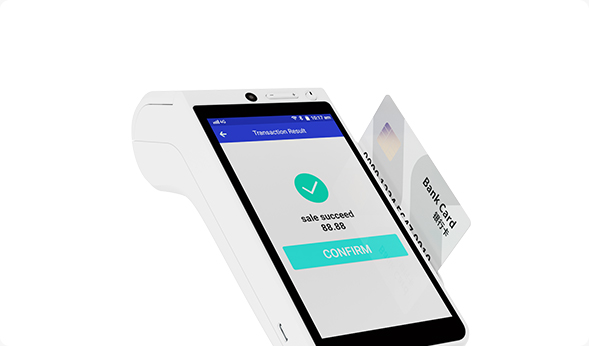

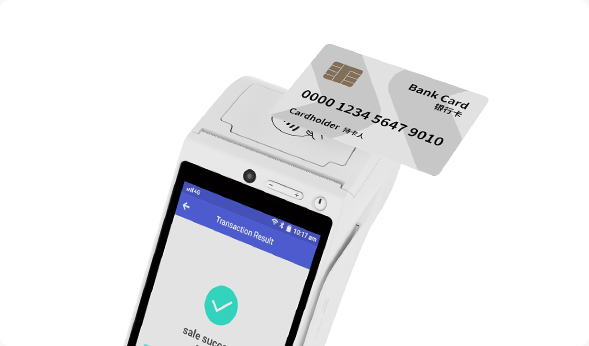

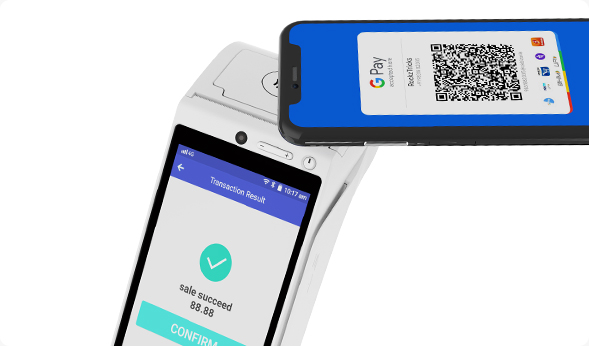

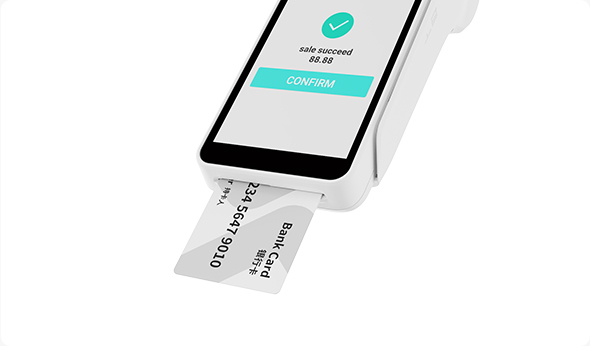

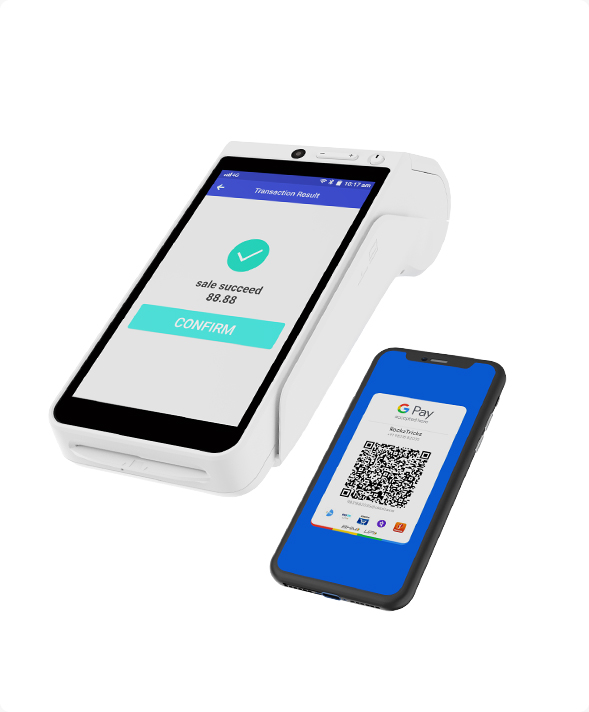

Supporting All Payments

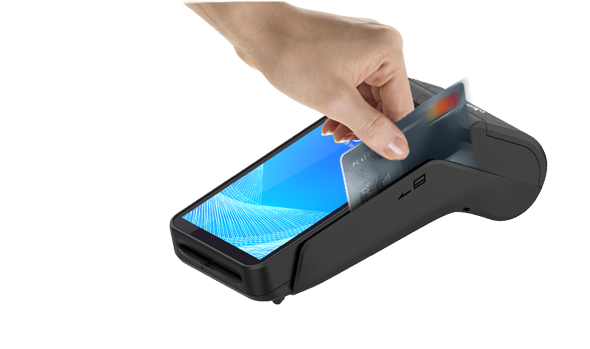

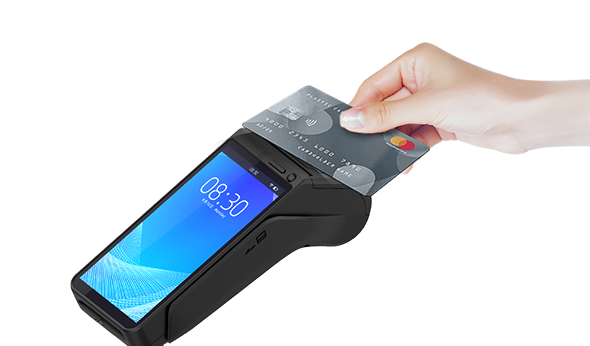

It supports various payment methods, such as magnetic card, IC card, contactless transaction and code scanning transaction. A machine can be used for various forms, making collection simple.

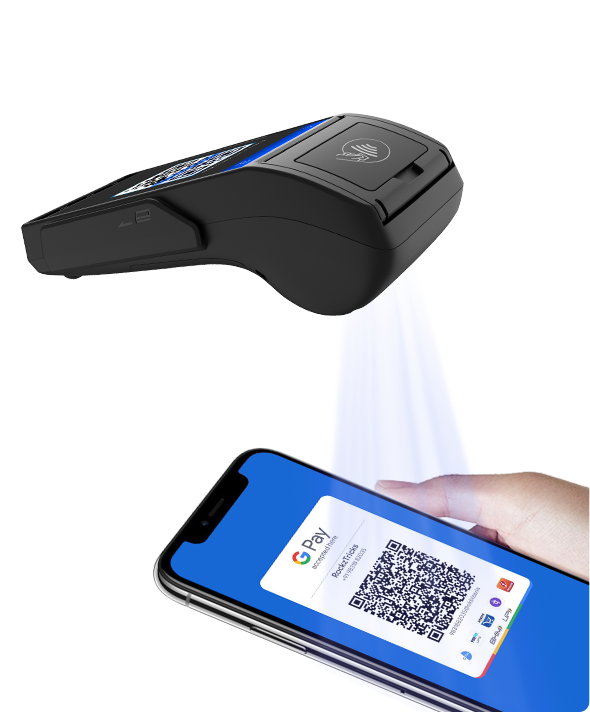

  • QR Code

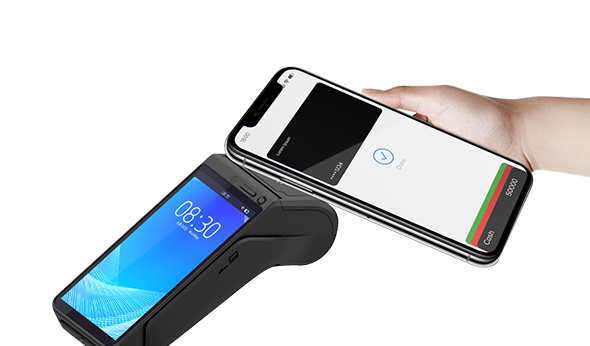

  • Contactless Card
  • NFC
  • Magnetic Card

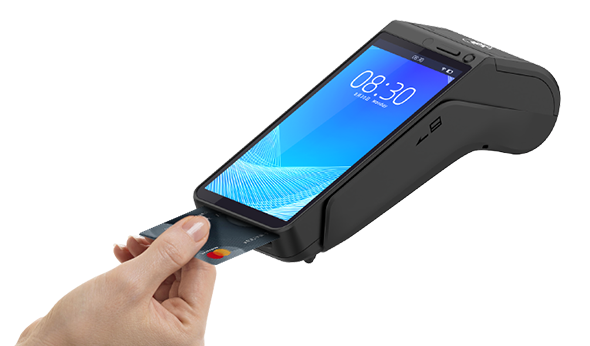

  • IC Card
Flexible Adaptability
Specifications
  • OS
    Asmart, Powered by Android 12
  • Processor
    Octa-Core, 2 x Cortex A75 1.6Ghz, 6 x Cortex A55 1.6 GHz + Secure Processor
  • Memory
    2GB RAM + 8GB Flash
    2GB RAM + 32GB Flash
    Extended MicroSD  Card Slot Up to 256GB
  • Card Readers
    Magnetic Stripe | Chip & PlN | Contactless
  • Cameras
    Front: 0.3MP Fixed Focus
    Front: 2MP Fixed Focus(optional)
    Rear: 5MP Auto Focus, with Flashlight
  • Display
    5.5" IPS HD  720 x 1280 Pixels
    Multi-Point Capacitive Touch Screen
  • Wireless Communication
    2G/3G/4G
    Wi-Fi (802.11a/b/g/n/ac), 2.4GHz & 5GHz
    Bluetooth5.0(BR/EDR+BLE)
  • Battery
    7.2V/2600mAh/18.7Wh (Equal to 3.6V/5200mAh )
    7.2V/3350mAh/24.1Wh (Equal to 3.6V/6700mAh)(optional)
  • Printer
    High Speed Printer  | Paper Roll Outer Diameter: 40mm | Paper width: 58mm
  • Card Slot
    2 Mini SIM + 1 Mini SAM
    2 Mini SIM + 2 Mini SAM(Optional)
    2 Mini SIM + 1 Mini SAM + 1 Micro SD(Optional)
    eSIM  + 1 Mini SIM + 1 Mini SAM + 1 Micro SD(Optional)
  • Positioning
    GPS | GLONASS | BEIDOU | GALILEO
  • Keys / Buttons
    1 Power ON/OFF | 1 Volume+ | 1 Volume-
  • Fingerprint Reader
    Fast recognized fingerprint reader (Optional)
  • Audio
    1 Speaker
    1 Microphone (optional)
  • Ports
    1 USB Type-C OTG | 5 PIN POGO PIN
  • Adapter
    Input: 100-240V AC, 50Hz/60Hz
    Output: DC 5V/2A
  • Physical
    192 x 84 x 63.5mm, 486g (including battery)
  • Operating Environment
    Operating Temperature: 0°C~50°C (32°F~122°F)
    Relative Humidity: 5%~95% (Non-Condensing)
  • Storage Environment
    Storage Temperature: -20°C~60°C (-4°F~140°F )
    Relative Humidity: 5%~95% (Non-Condensing)
  • Certifications
    PCI PTS 6.x | EMV L1 & L2 | EMV CL1 | Visa PayWave l MasterCard PayPass | Unionpay Quickpass | American Express | Discover D-PA| JCB J/Speedy | CE | MIR
