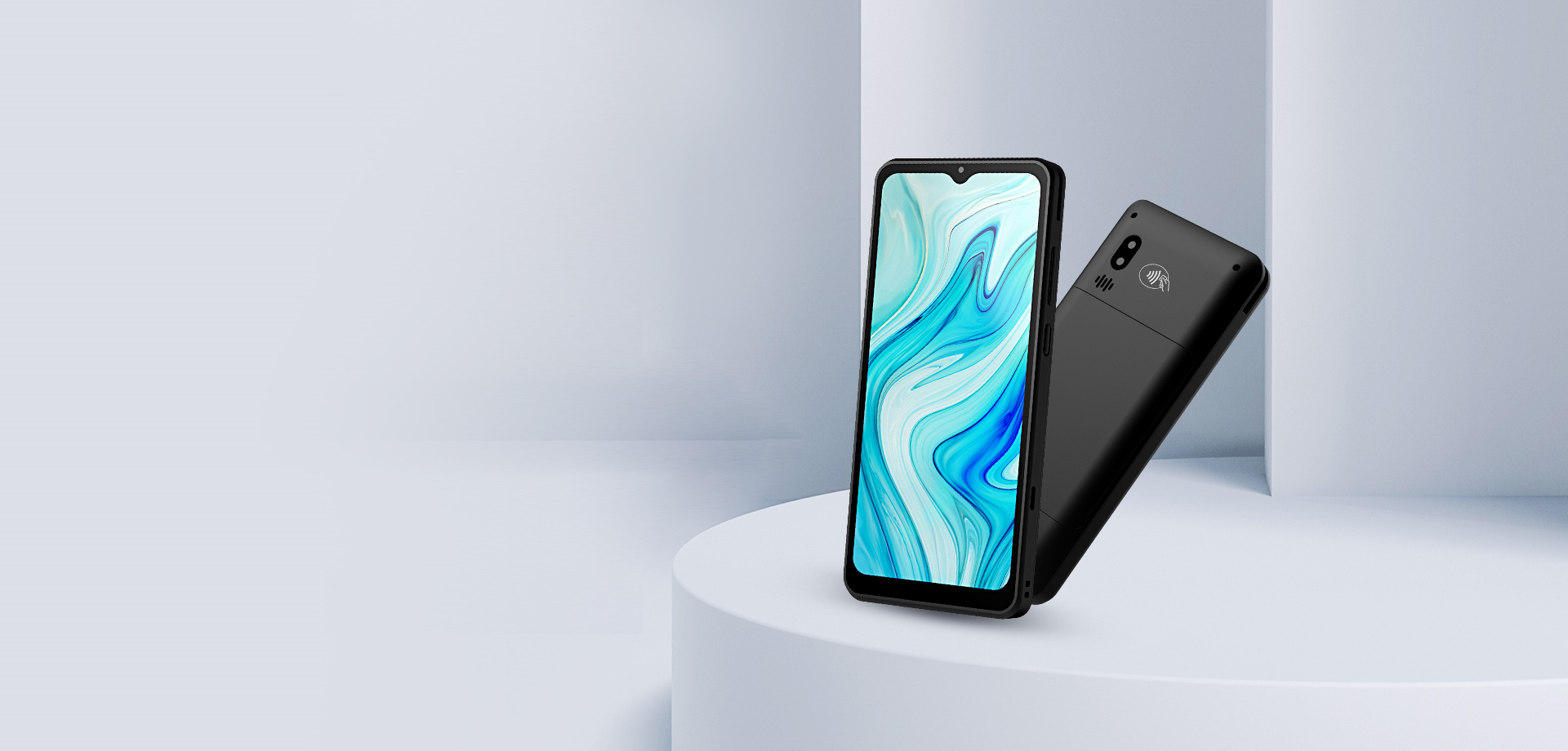

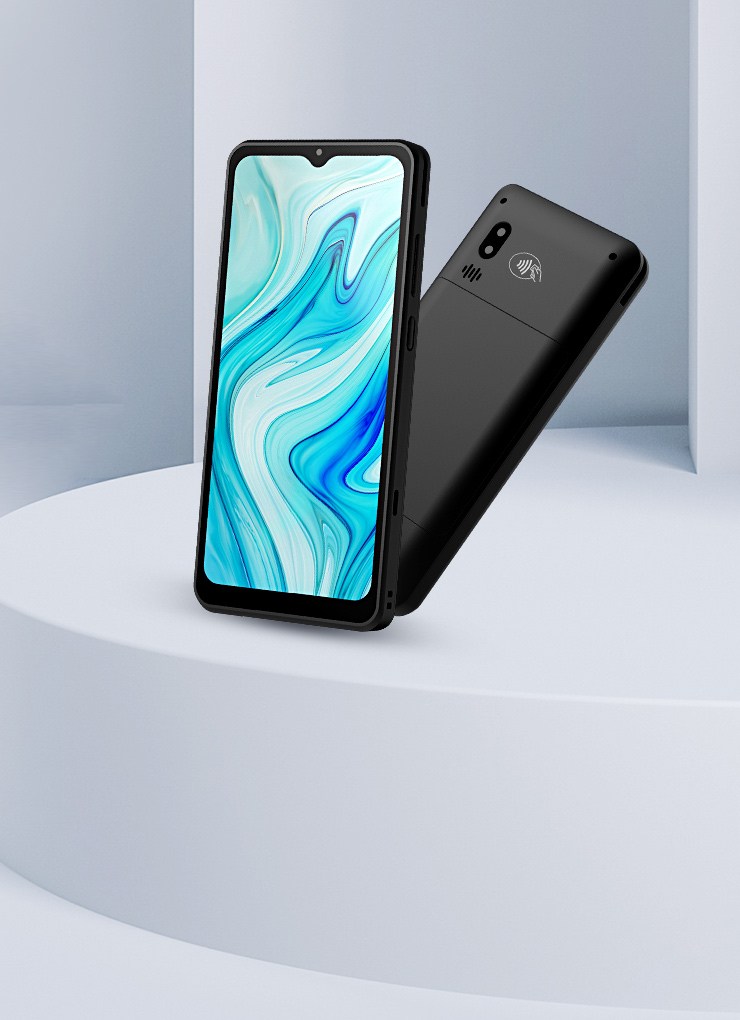

NEW9310
Smart POS Terminal
Large Screen Design, Inspiring the Future.




CPU
Quad-core cortex A53
  • Wireless communication
    4G,3G,2G,wifi,BT
  • 6.5 inch HD screen
  • Double Camera
    2MP front 5 MP rear
  • battery
    3.8V/3000mAh
Powerful Performance, Superior Experience
A more powerful Quad-core 1.4G processor makes transactions to run seamless and faster than ever.

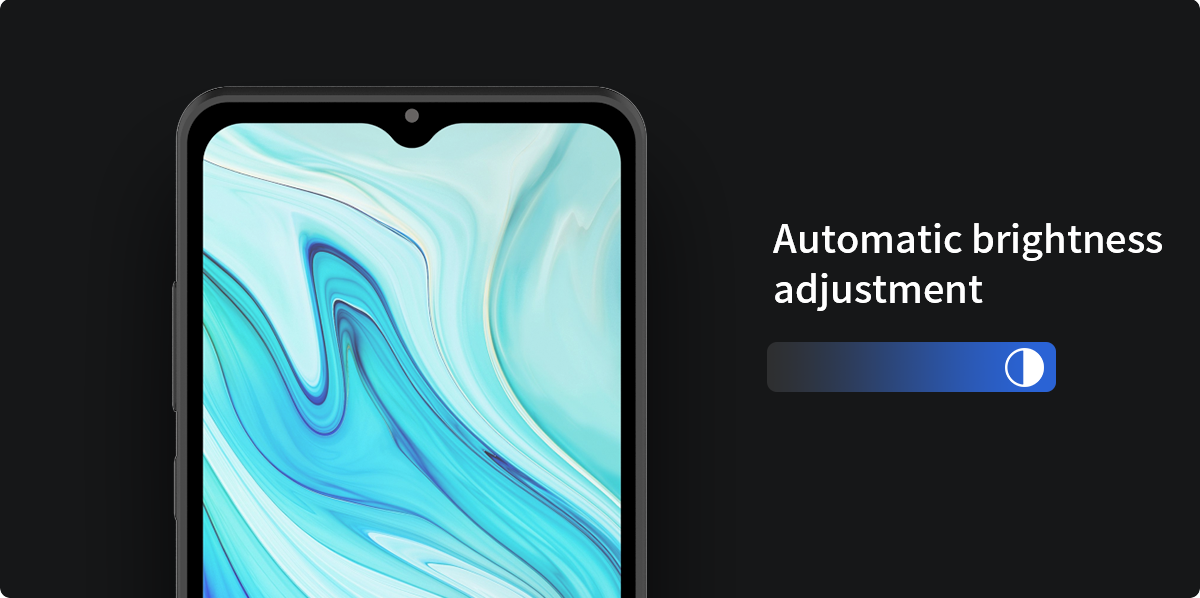

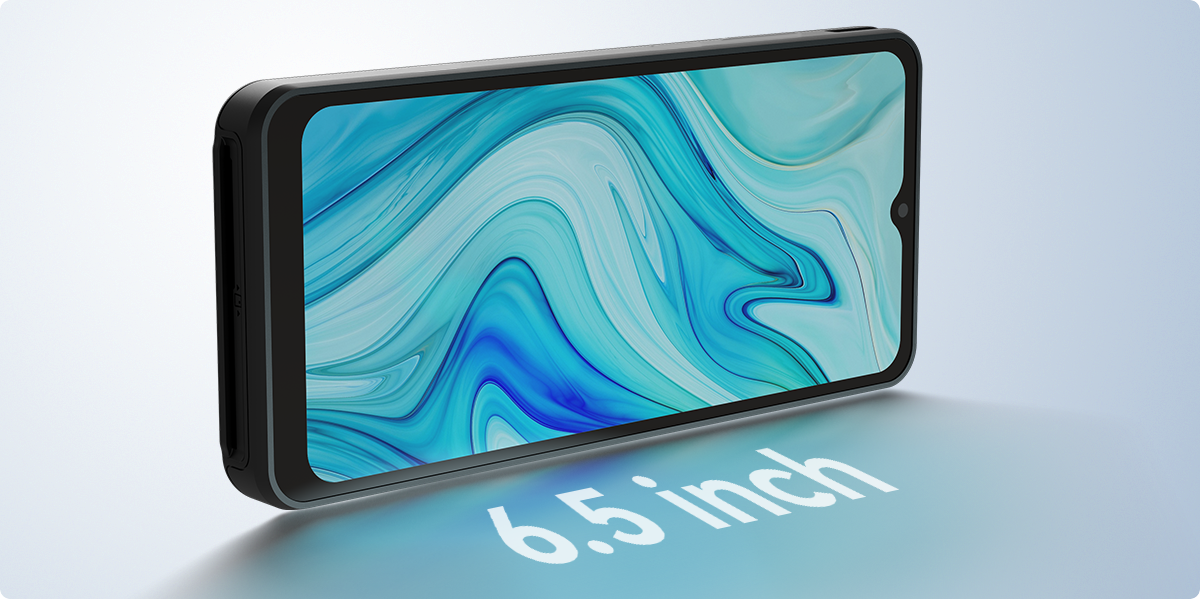

Splendid Large Screen Display
The 6.5-inch touch screen adjusts its brightness based on current lighting conditions and provides you the ultimate visual experience in any environments.

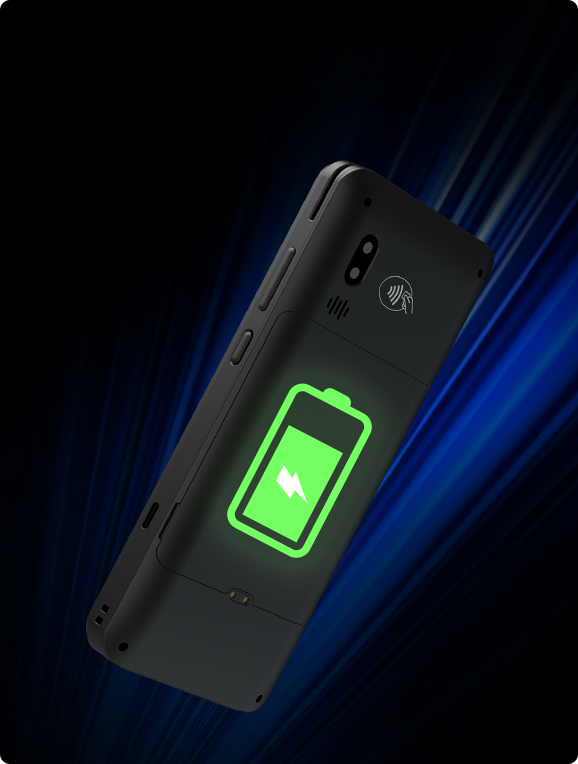

  • Long Battery Life
    The rechargeable 3000mAh/3.8V battery ensures the NEW9310 keeps transacting smoothly a full day with a single charge.

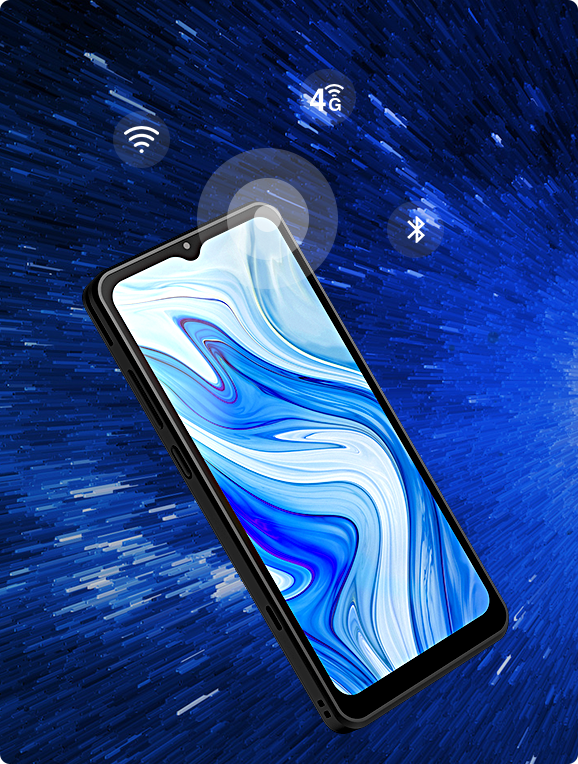

  • All Solutions For Full Connection

    With the help of solutions for full connection, you could make payment or process data rapidly and securely on the spot through: 2G/3G/4G, Wi-Fi,Bluetooth.



  • NEW9310

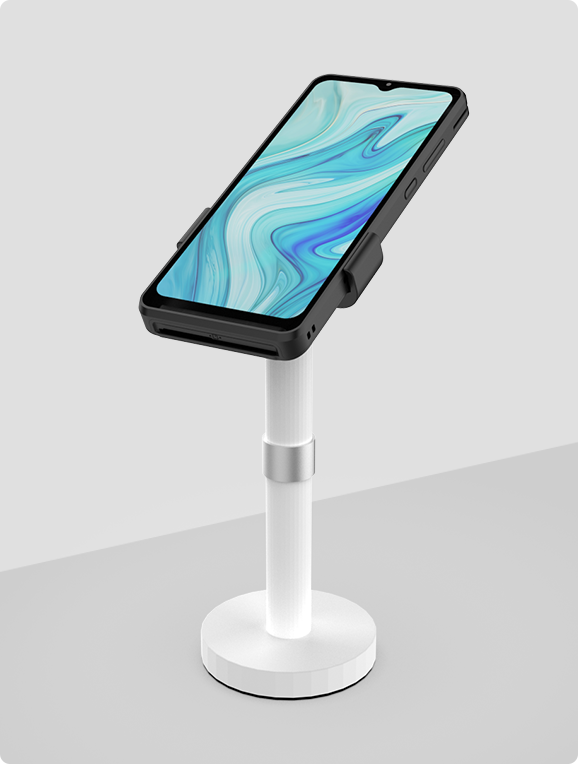

    Special base
    Step-by-step buckle
    Fast loading and unloading

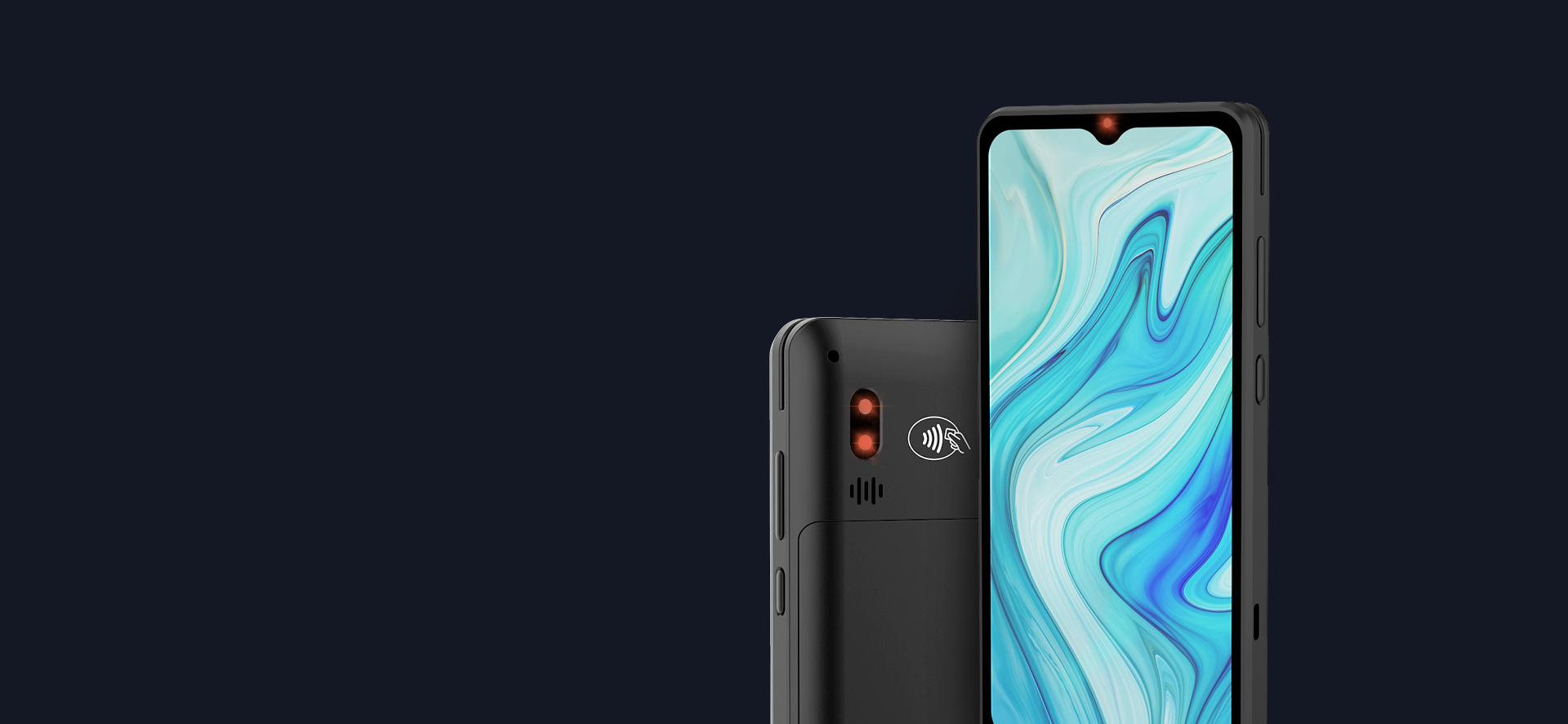

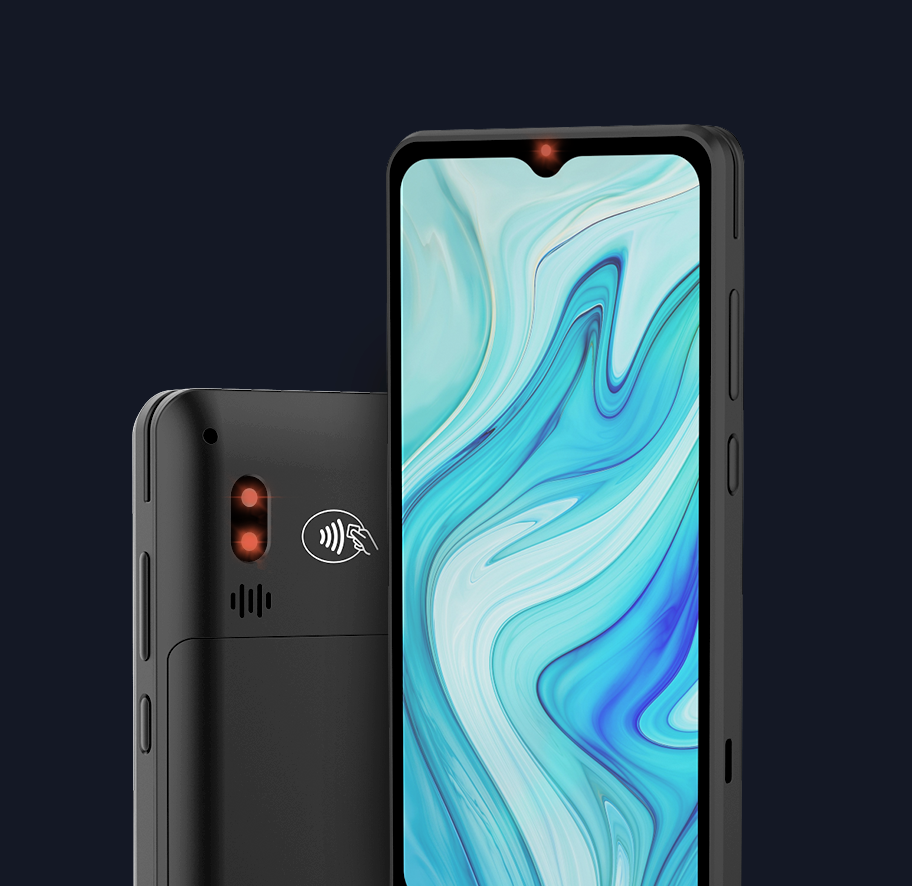

Dual Camera

2MP Front camera and 5MP autofocus rear camera catch every detail of the codes, and makes payment more rapid and safer.

  • 2MP
    Front
  • 5MP
    Rear
Supporting All Payments
It supports various payment methods, such as magnetic card, IC card, contactless transaction and code scanning transaction. A machine can be used for various forms, making collection simple.
  • QR Code
  • Contactless Card
  • NFC
  • IC Card
  • Magnetic Card
Flexible Adaptability
Specifications
  • OS
    Asmart, Powered by Android 10
  • Processor
    Cortex A53 Quad-Core, 1.4GHz + Secure Processor
  • Memory
    1GB RAM + 8GB Flash
    2GB RAM+16GB Flash (optional)
  • Card Reader
    Magnetic Stripe | Chip & PlN | Contactless
  • Camera
    Front: 2MP Fixed Focus
    Rear: 5MP Auto Focus, with Flashlight
  • Display
    6.5" IPS HD+  1600 x 720 Pixels
    6.5" IPS HD+  1280 x 576 Pixels(Optional)
  • Wireless Communication
    2G/3G/4G
    Wi-Fi (802.11a/b/g/n/ac), 2.4GHz & 5GHz
    Bluetooth4.2
  • Battery
    3.8V/3000mAh/11.4Wh
  • Card Slots
    2 Mini SIM + 1 Mini SAM
    2 Mini SIM + 2 Mini SAM(optional)
  • Positioning
    GPS | GLONASS | BEIDOU
  • Keys / Buttons
    1 Power ON/OFF | 1 Volume+ | 1 Volume-
  • Audio
    1 Speaker
  • Ports
    1 USB Type-C OTG | 2 PIN POGO PIN
  • Adapter
    Input: 100-240V AC, 50Hz/60Hz | Output: DC 5V/1A
  • Physical
    167.5 x 76.5 x 16.8mm, 255g (including battery)
  • Operating Environment
    Operating Temperature: 0°C~50°C (32°F~122°F)
    Relative Humidity: 10%~95% (Non-Condensing)
  • Storage Environment
    Storage Temperature: -20°C~60°C (-4°F~140°F )
    Relative Humidity: 5%~95% (Non-Condensing)
  • Certifications
    PCI PTS 6.x | EMV L1 & L2 | EMV CL1 | Visa PayWave l MasterCard PayPass | Unionpay Quickpass | American Express | Discover D-PAS | JCB J/Speedy  | Rupay | ABECS | MasterCard TQM | CE | TQM | CBI NSICC | MIR | CPACE
