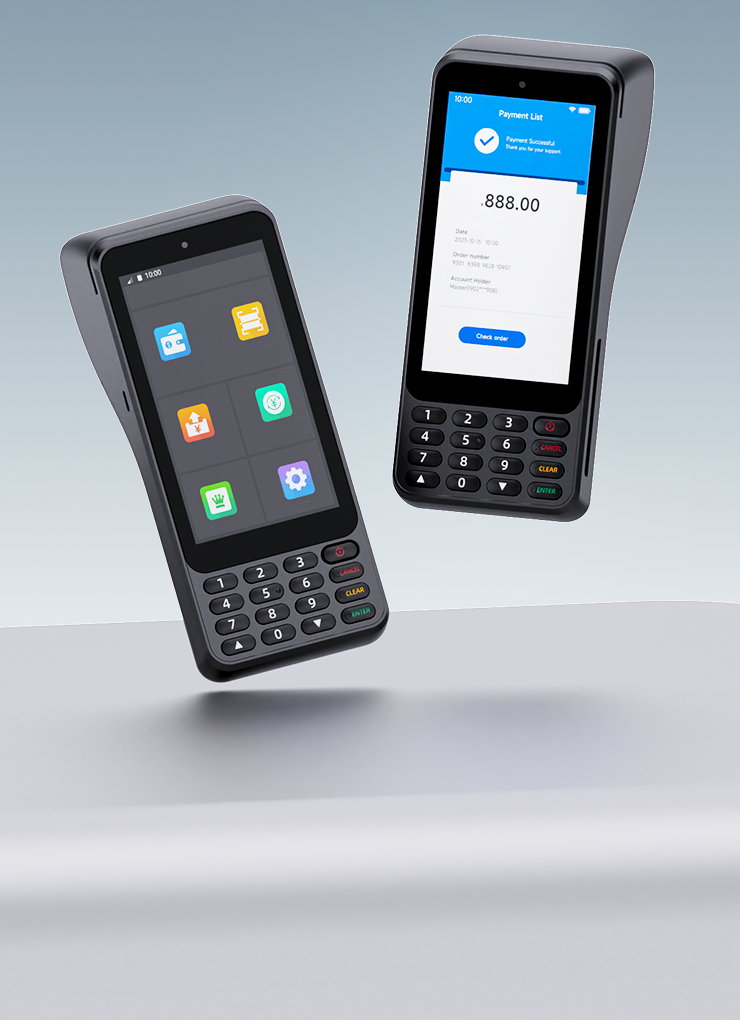

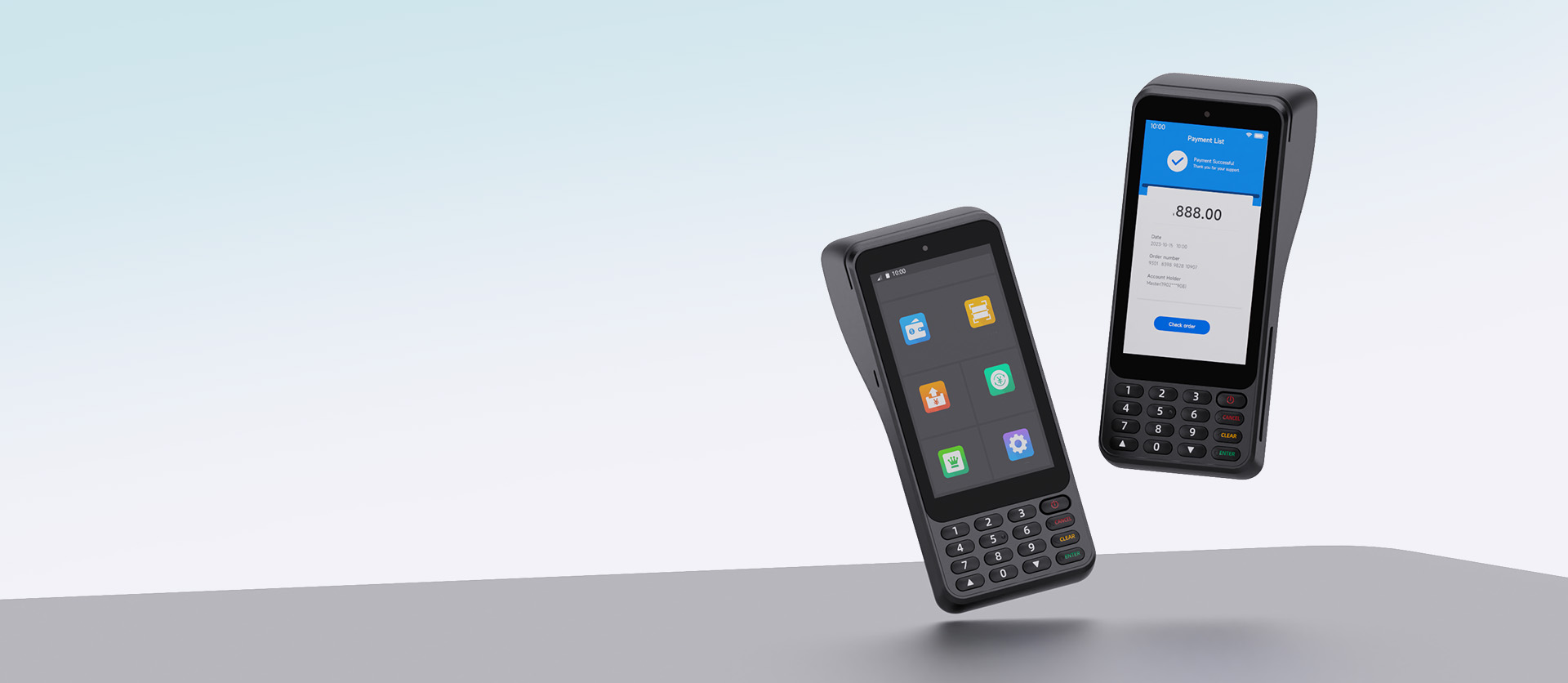

NEW9010

Smart POS Terminal

Advanced leadership,
a combination of the most modern and classic.

High Performance

2.0GHz Faster CPU Cortext-A53 Quad Core

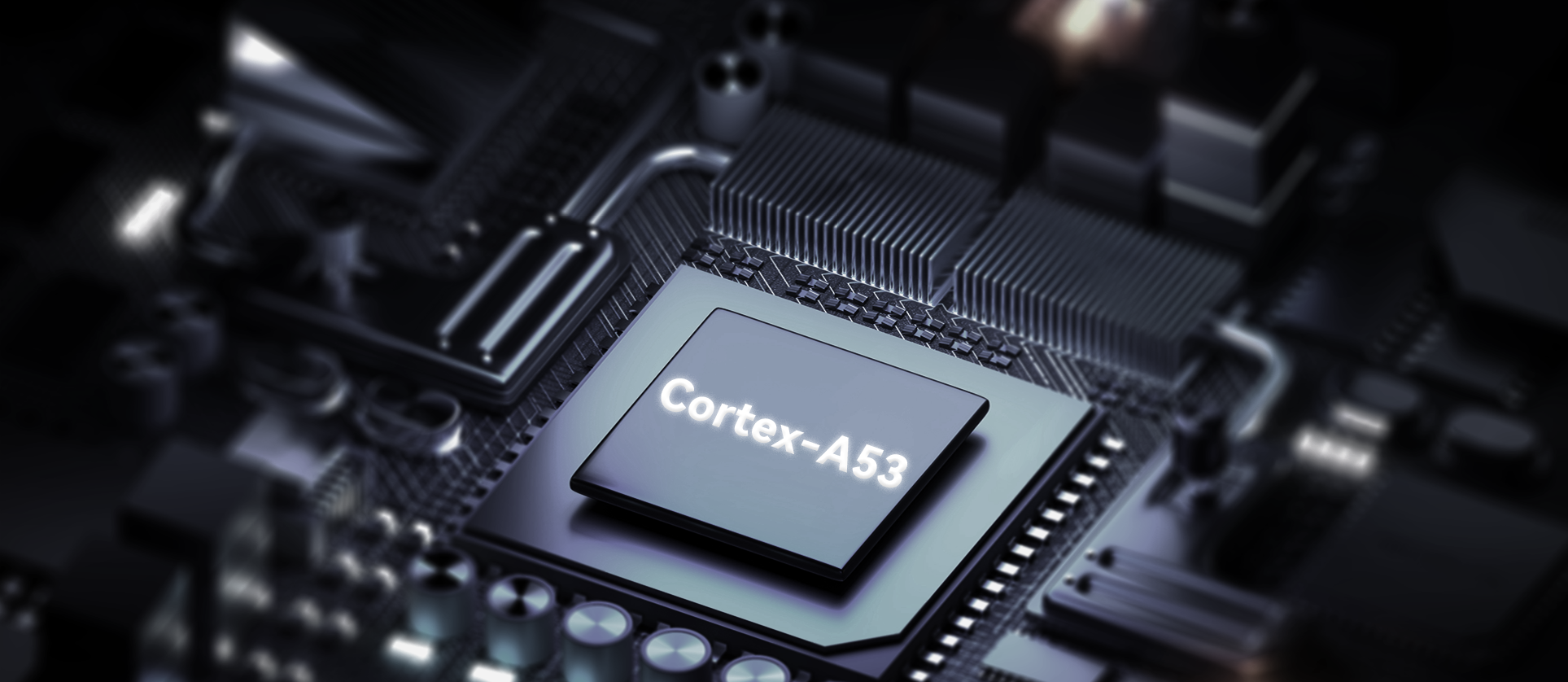

High Performance

NEW9010 is based on the ARM Cortext-A53 Quad Core, a processor with the speed of 2.0GHz. NEW9010 is very premium on its performance.

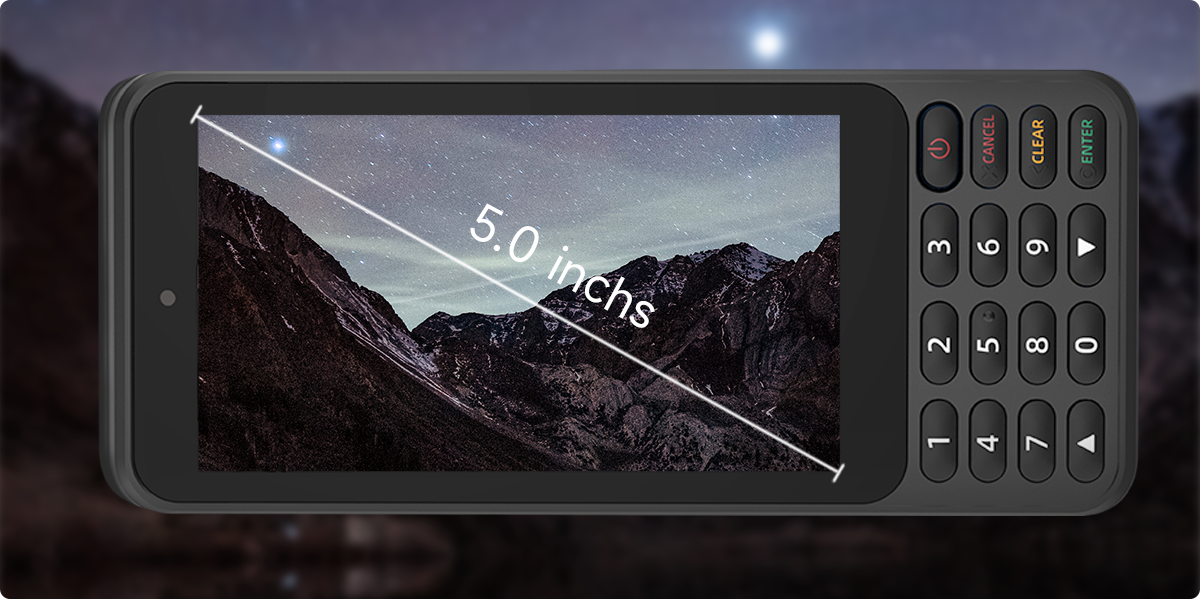

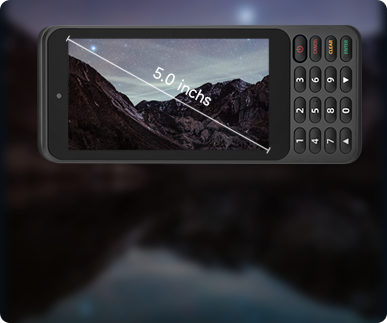

Bigger Screen

NEW9010 is the portable POS terminal with a 5.0” big screen to deliver extraordinary visual and operation experience.

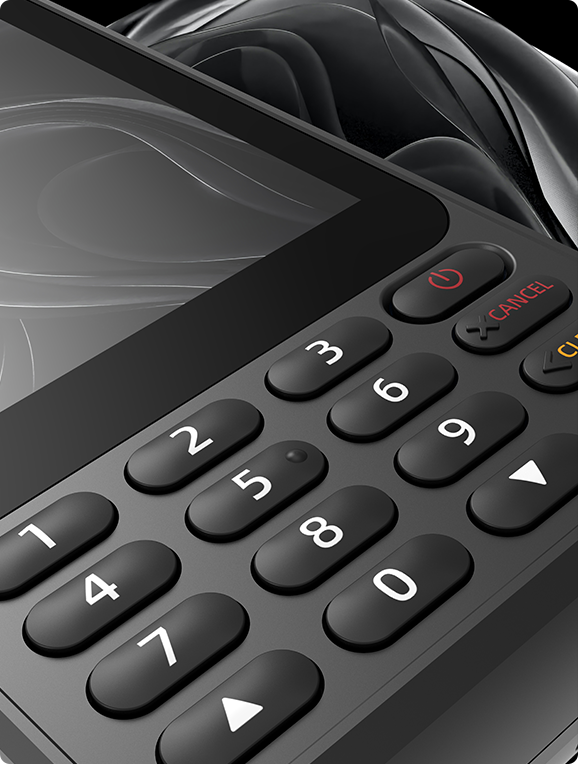

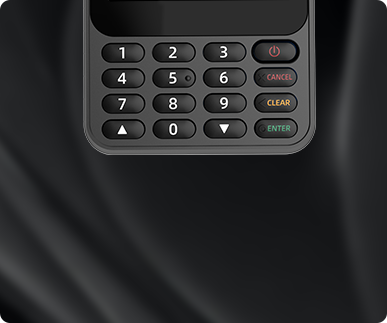

Physical PIN input keypad

Entering amounts and passwords is more convenient and efficient.

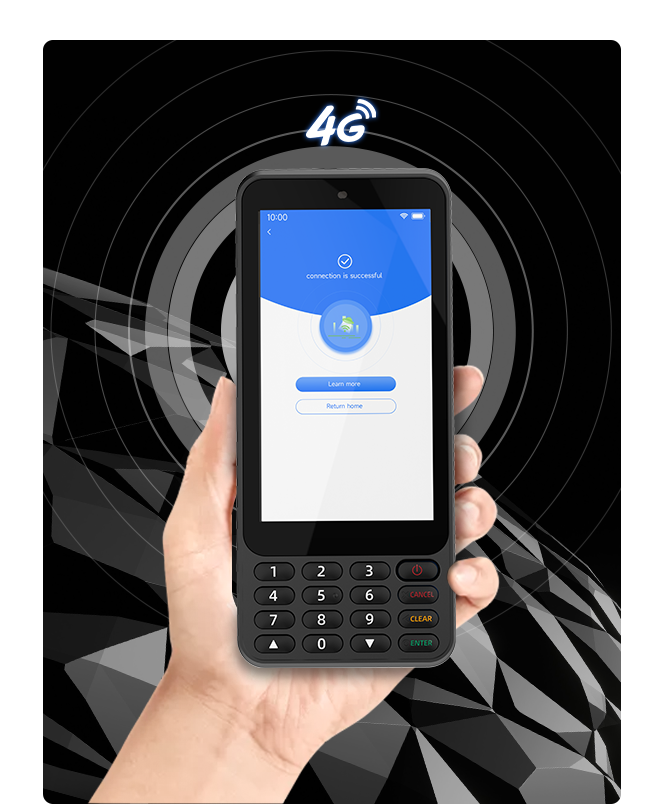

Use NEW9010 Anywhere

NEW9010 adopts Qualcomm chipsets and powerful communication module, to ensure fast and stable communication and strong network adaptability.

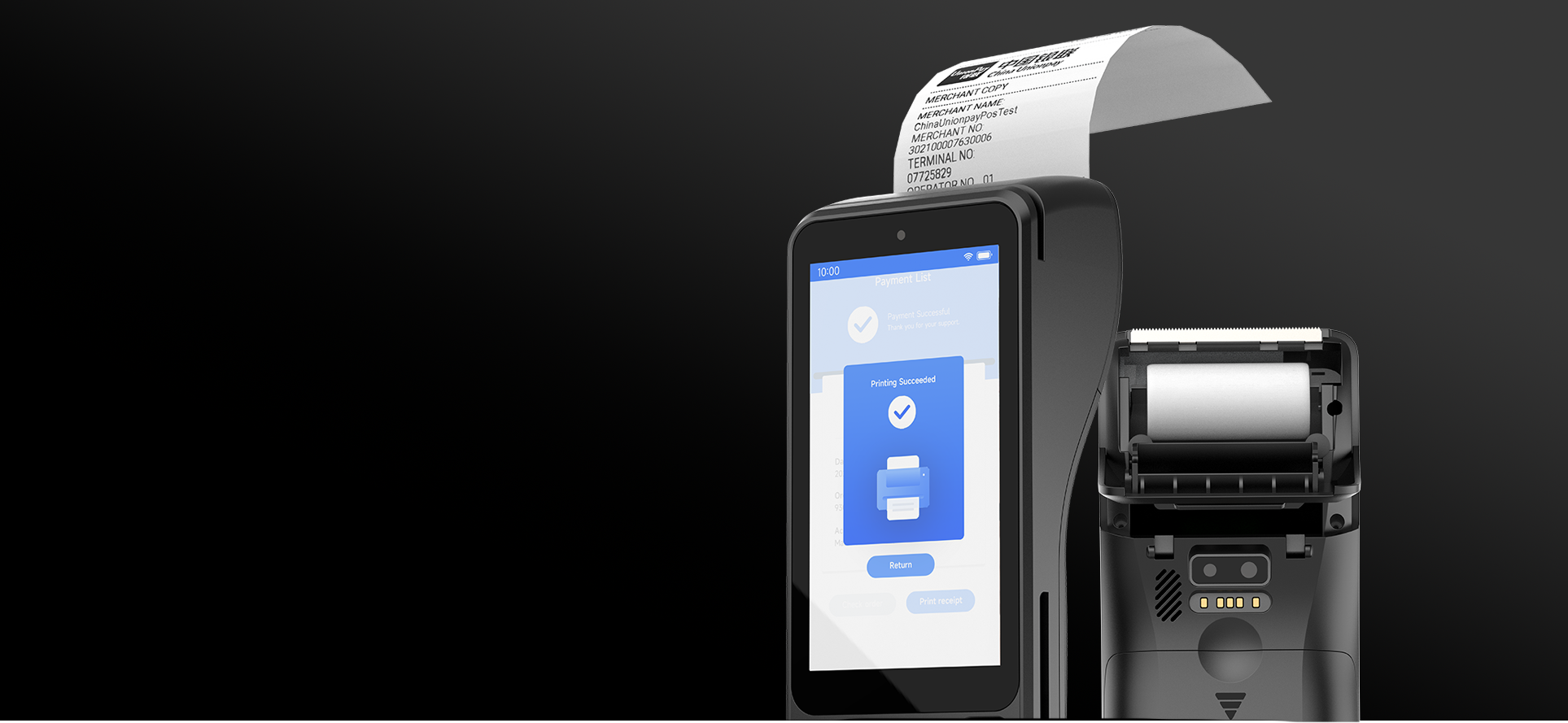

Printer speed greater than 90mm/s.

Equipped with a metal paper cutter, with long service life and smooth paper tearing.

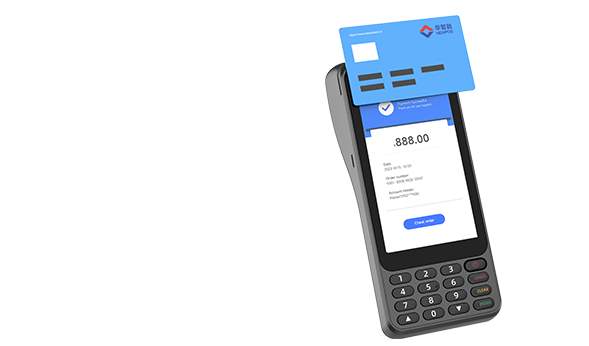

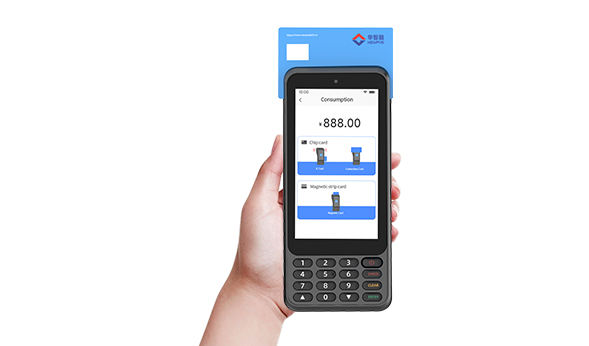

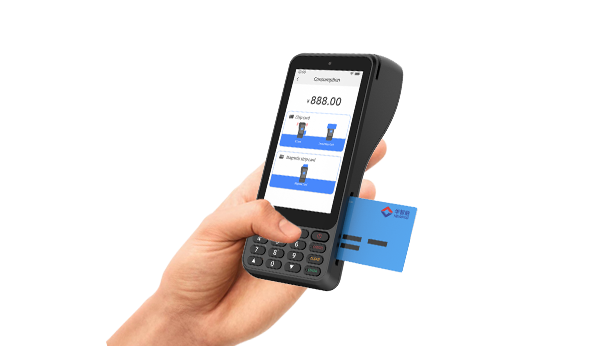

Payment Methods

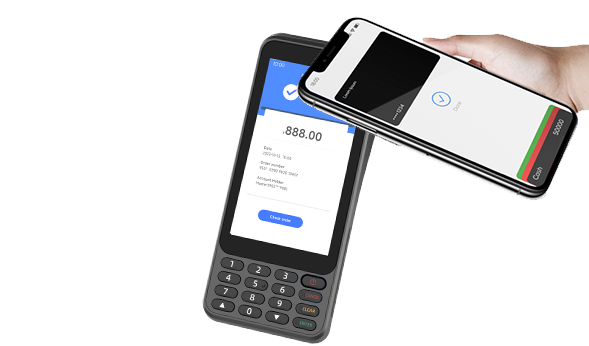

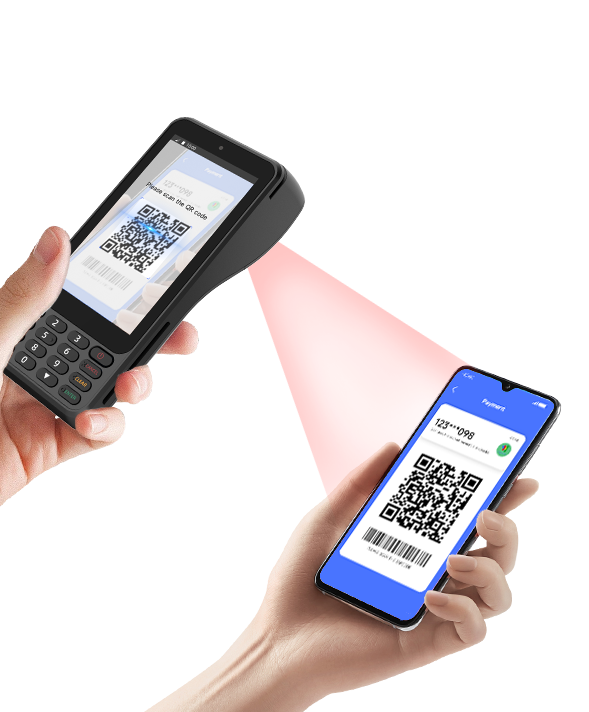

NEW9010 accepts payments of magnetic stripe cards, IC cards, contactless/NFC and 1D&2D codes.

Flexible Adaptability

Restaurant Hotels Banks Retail

Technical Specifications

Processor

AP: Cortex Quad-core A53,2.0GHz
SP: CSO security core,60MHz
Memory

2GB RAM + 8GB ROM
2GB RAM +16GB ROM (optional)
OS

Asmart
Displays

5" HD, IPS, 1280*720, with adjustable
backlight,Capacitive multi-touch screen,
support electronic signature
Physical Key

Numeric x 10
Function x 5
Power x 1
Card Readers

Chip & PIN
Contactless
Magnetic Stripe
Printer

High-speed thermal printer,
Print Speed: 90mm/s
Paper Roll: 58*40mm
Metal paper cutter
Camera

ront camera, 2MP,FF
Rear camera,5MP,AF, support 1D/2D
Speaker

Speaker x 1, 10cm>90dB
Wireless Communication

4G/3G/2G
Wi-Fi 2.4G&5G
Bluetooth5.0
Positioning

GPS , GLONASS , BEIDOU
Card Slot

2xSIM +2xSAM
1 x eSIM (optional)
Power

Battery: 7.2V/2600mAh,
7.2V/3200mAh (optional),
Adapter: 5V/2A
Peripheral Ports

1 x Type C OTG USB
Pogo pin

Magnetic Charging (optional)
Functional Base (optional)
Physical

190mm x80mmx 57.4mm 450g(including battery)
Environment

Operating temperature: 0℃C-50℃
Storage temperature: -20°C~60°C
Relative humidity: 5%~ 95%
(Non-condensing)
Certifications

PCIPTS 6.x, EMV L1&L2, EMV CL L1, Certificatlons QUICS, TQM, PayWave, PayPass, American Express,Discover D-PAS, JCB, Anatel, ABECS, ATEX, CE.
