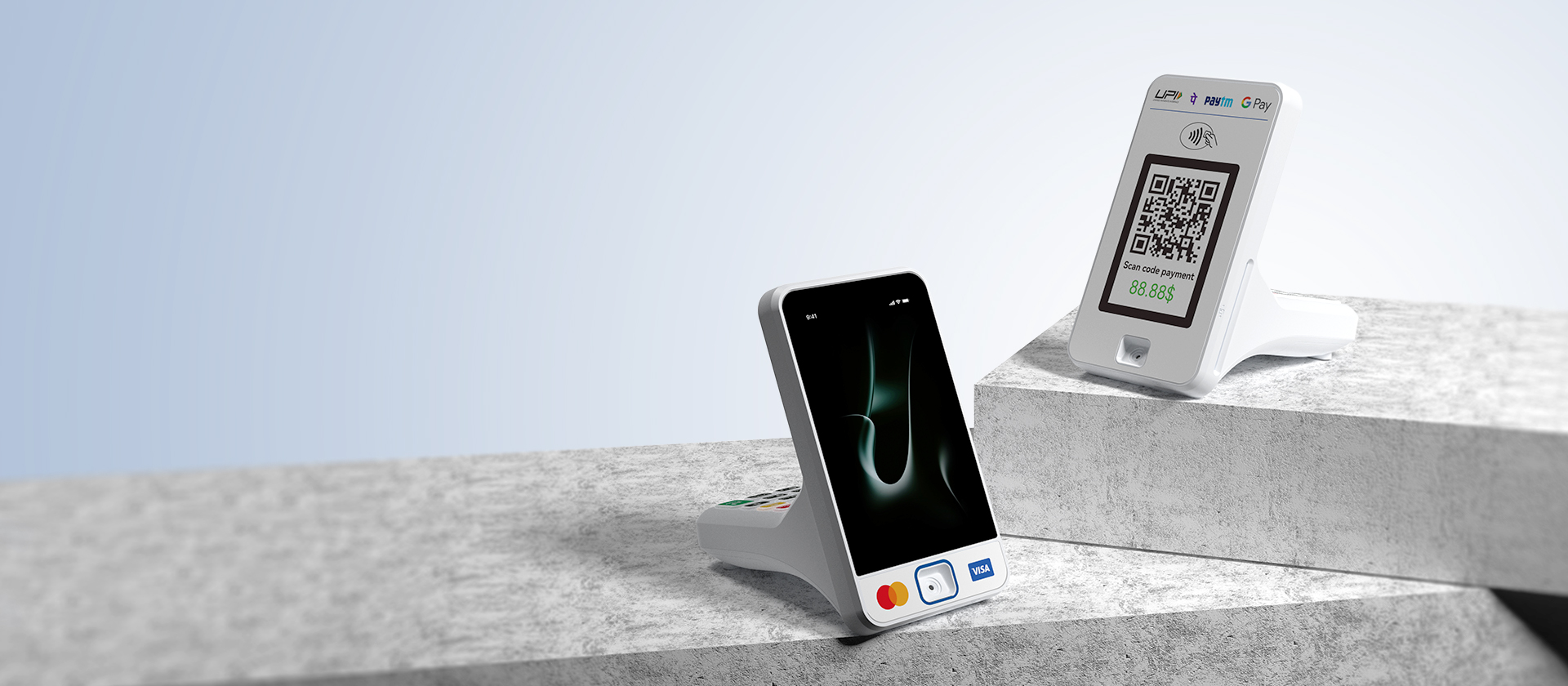

MDP910

Card Payment SoundBox

Leading the new fashion of payment, Redefining SoundBox

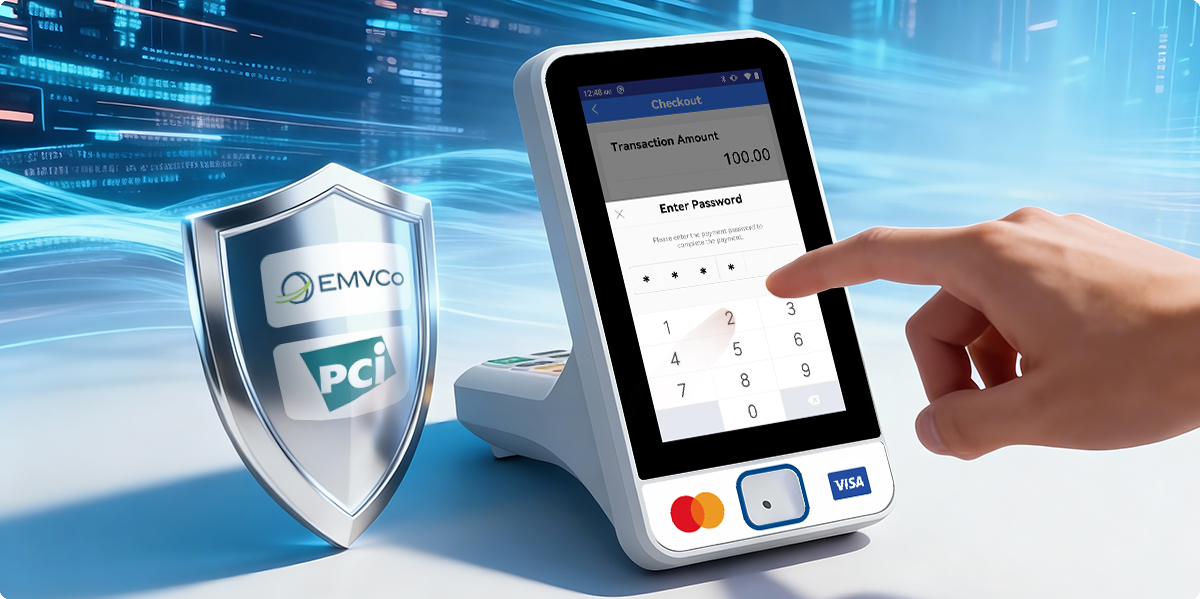

Highest Security Standards

MDP910 features PIN input functionality and adheres to POS terminal requirements,Pass PCI 6.X and EMV financial certifications which ensures secure and compliant payment processing for merchants.

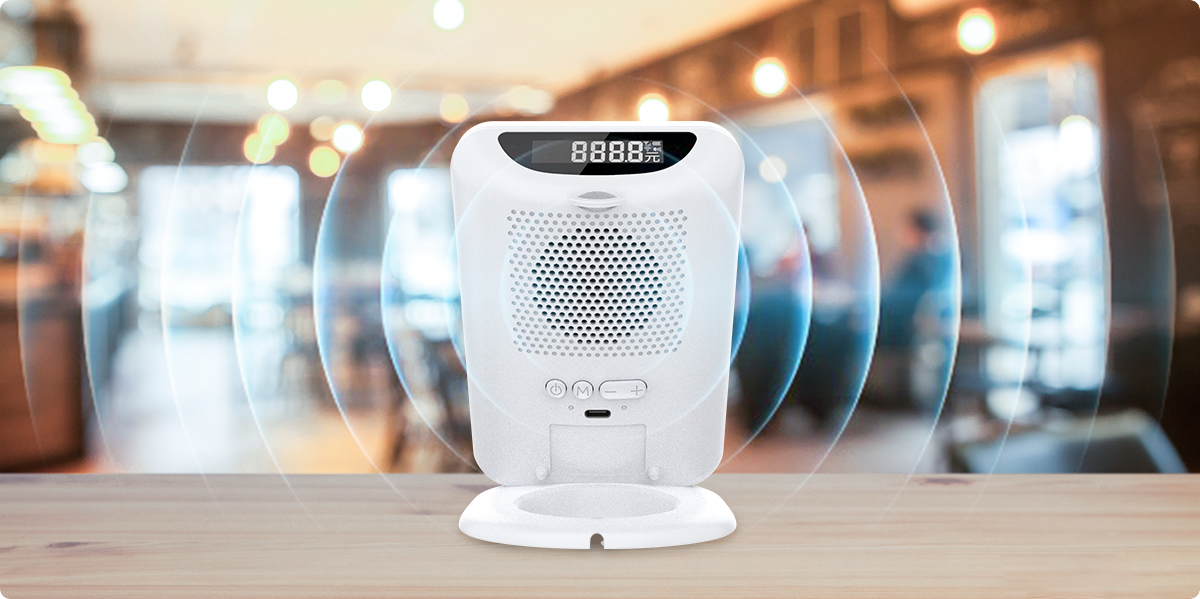

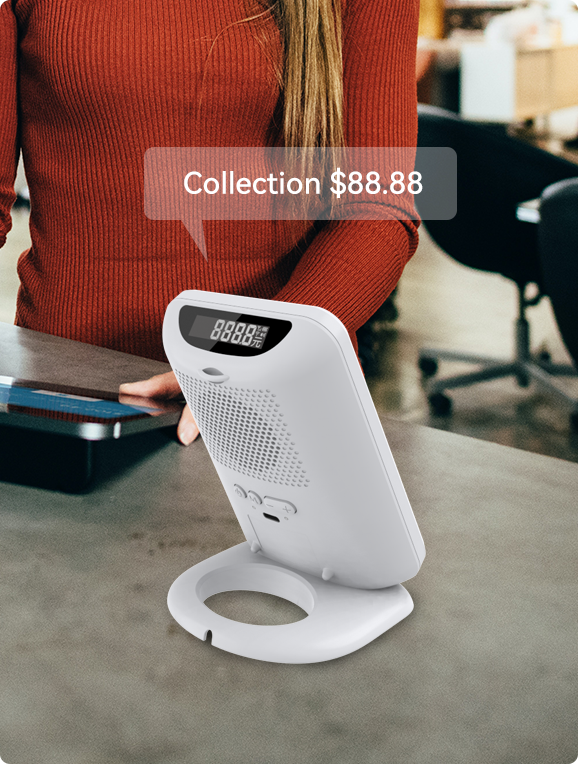

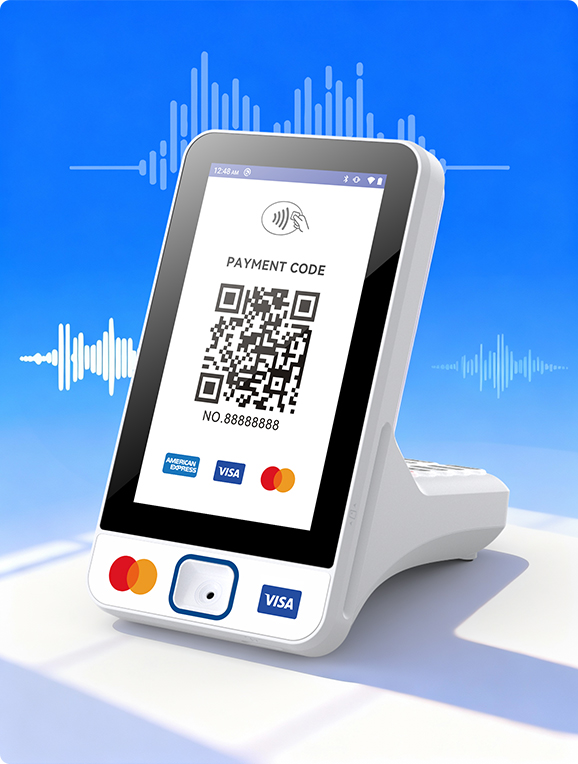

Hi-Fi Speaker

which ensures good sound quality even when the volume is turned up high”The sound of the payment amount is clearer.
Powerful Battery

3.7V/4000mAh/14.8Wh
3.7V/5200mAh/19.24Wh (Optional)

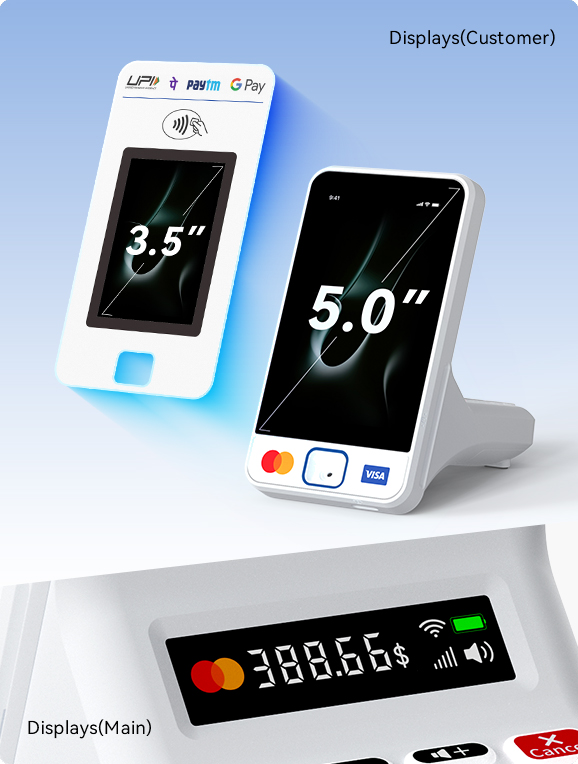

Color Dual-Screen Display

Displays(Customer)

5-inch or 3.5-inch color display supporting Tap on screen and dynamic QR code presentation for seamless transactions

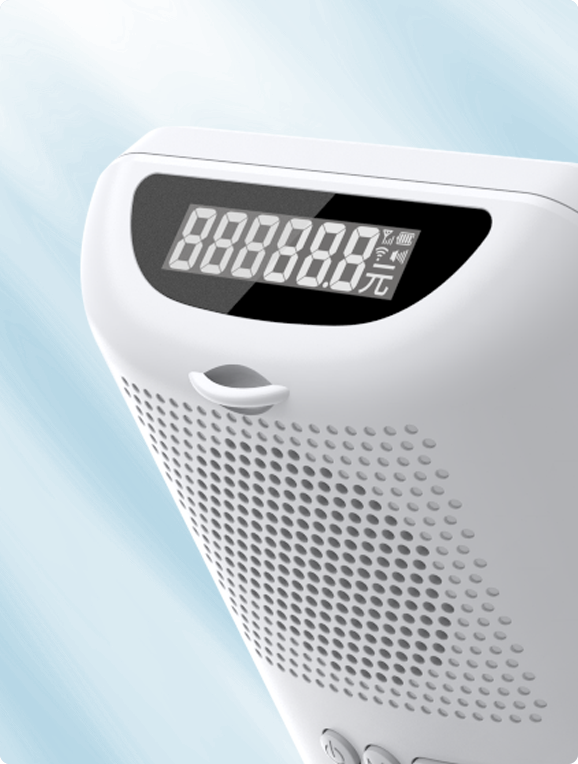

Displays(Main)
2.3-inch color display clearly displays transaction amounts, confirmation, status icons

Integrates multiple payment methods

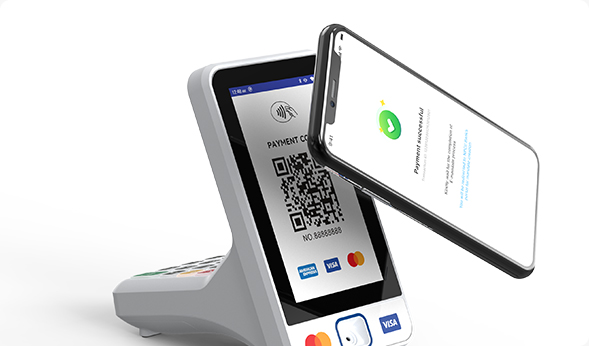

MDP910 accepts payments of IC cards, contactless/NFC and 1D&2D codes.

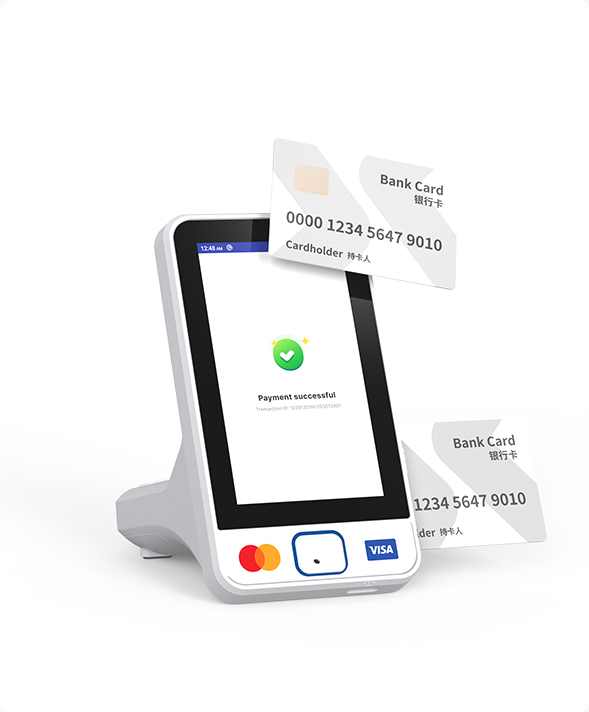

Contactless/IC cards
NFC

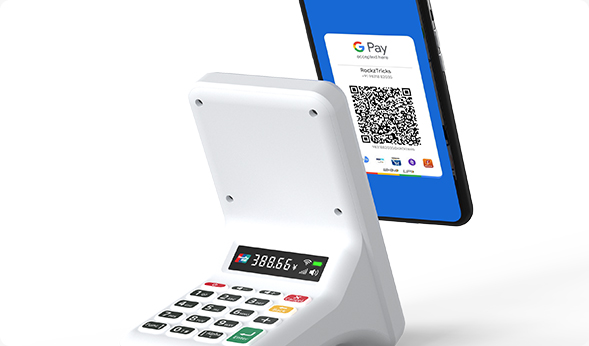

1D&2D codes

Minimalist Payment Solution for SME

multiple usage modes to flexibly adapt to various checkout scenarios.

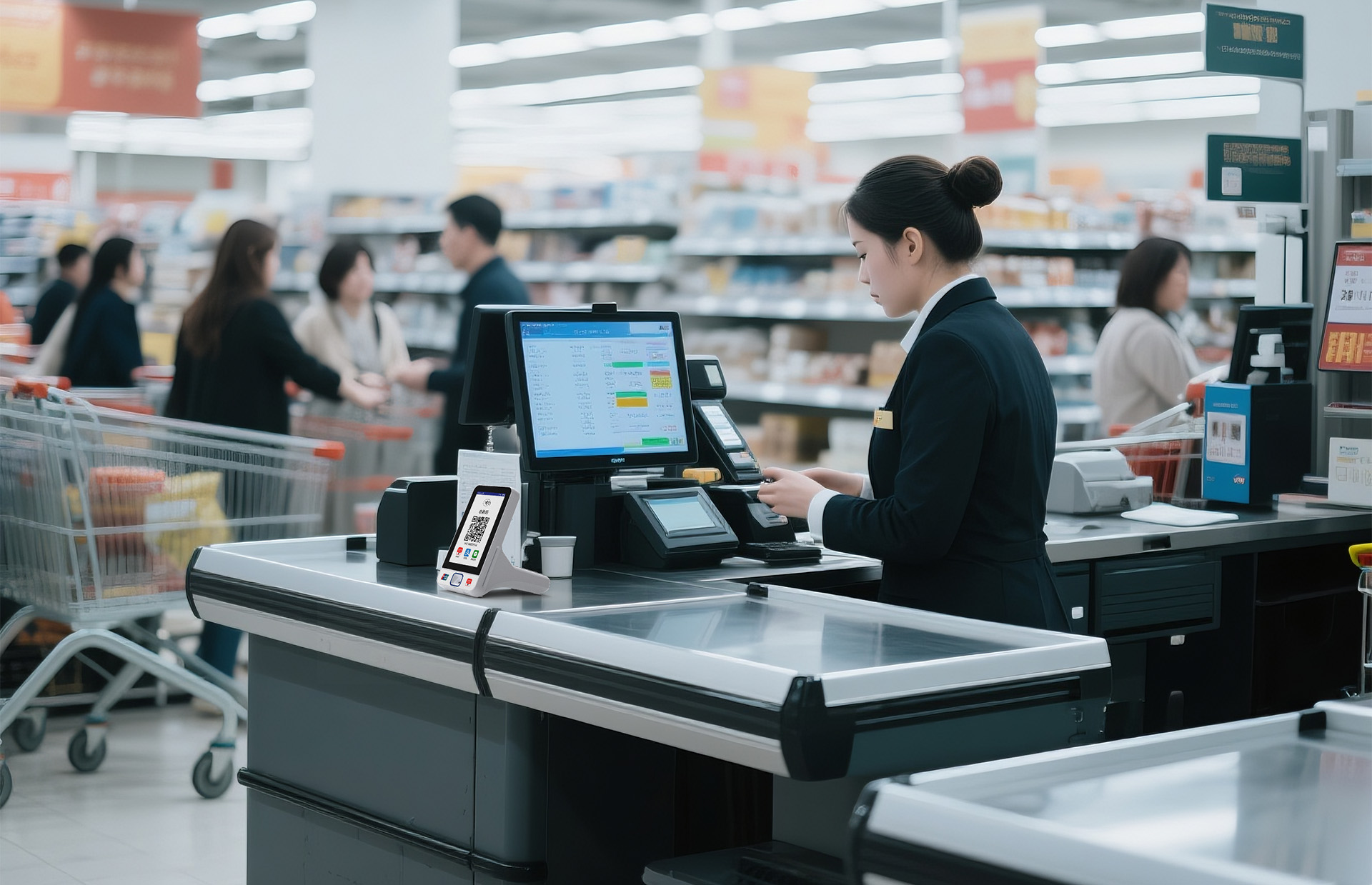

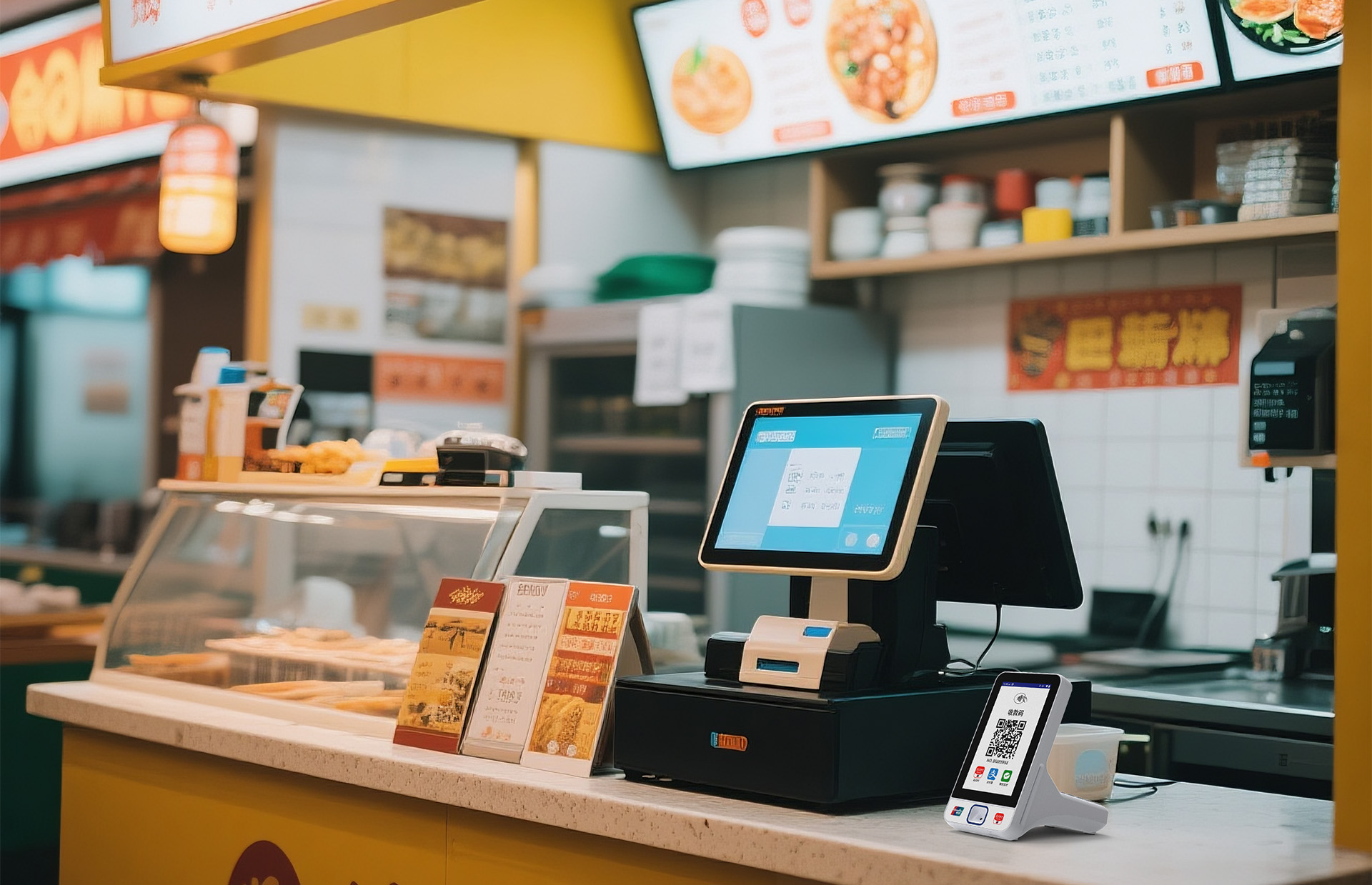

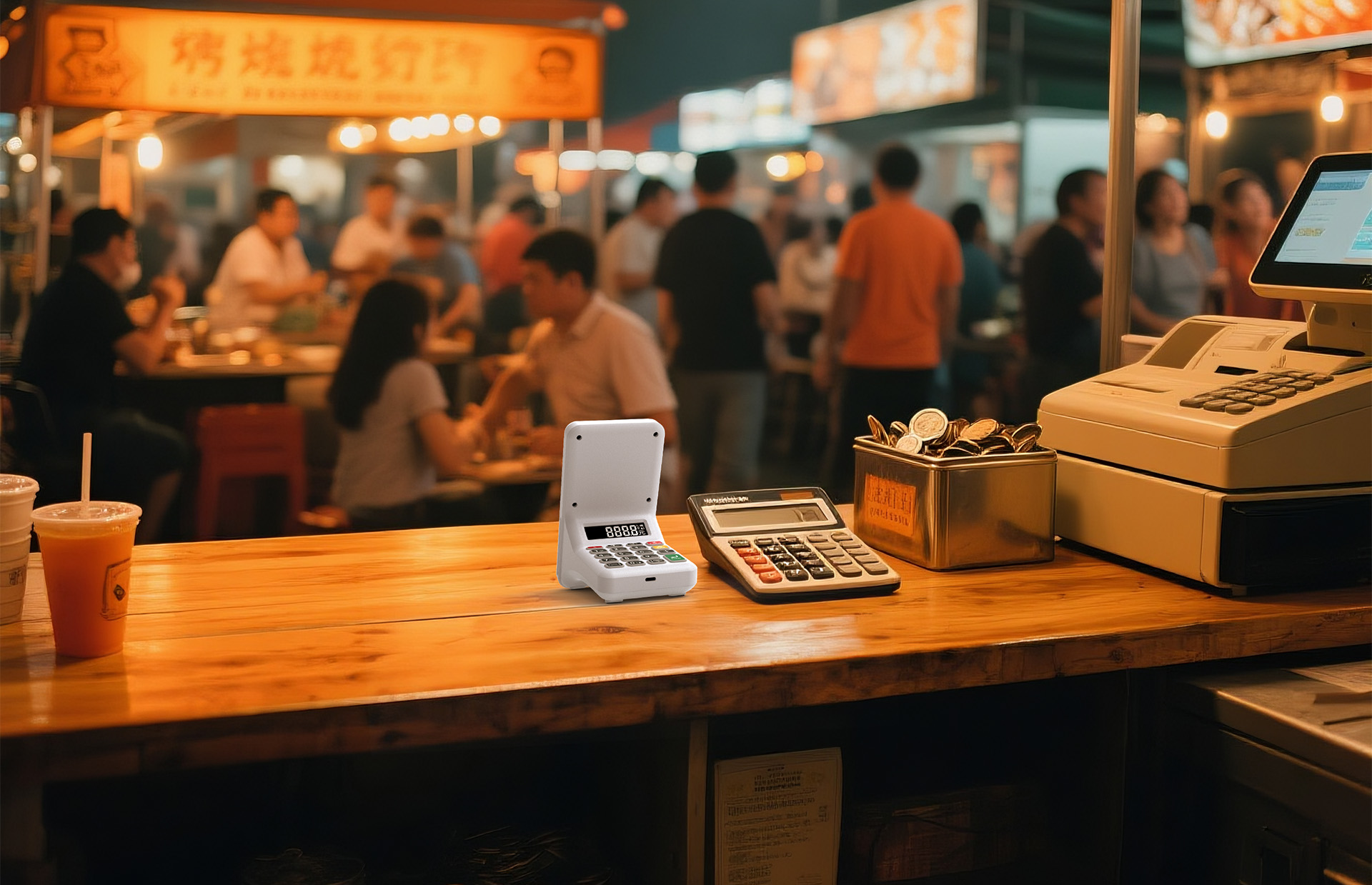

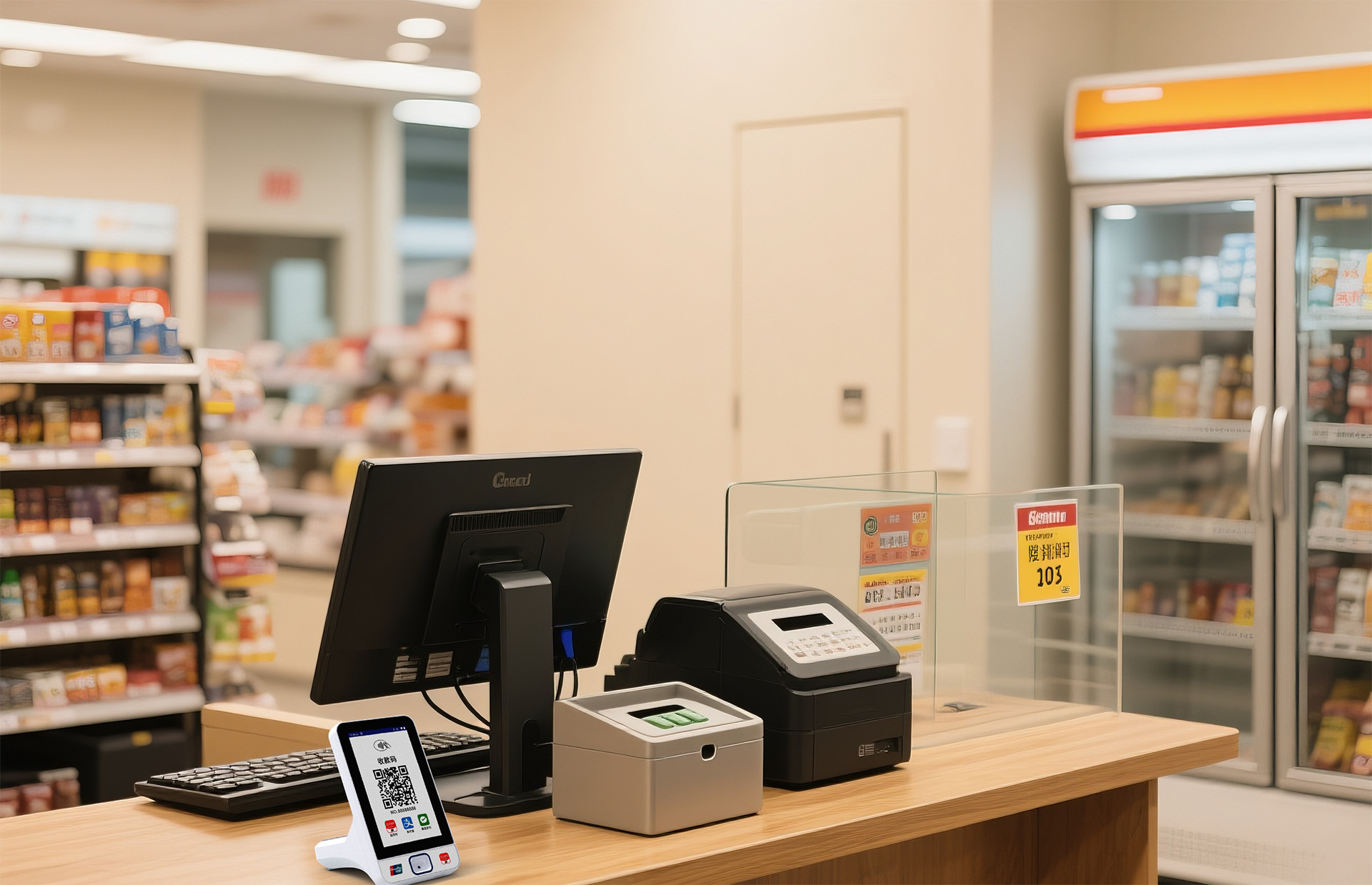

Convenience store Fast food restaurant Street Stall Supermarket

Specifications

OS

RTOS
Processor

Cortex A5 500MHz + Secure Processor
Memory

16MB RAM + 24MB Flash
Card Readers

Chip & PlN | Contactless
Cameras

0.3MP Focus，SUPPORT QR Code 1D/2D (Optional)
Displays (Customer)

5'' 480 x 854 Pixel | Color Screen | Secure virtual keypad for PIN entry
Displays(Main)

2.3'' 284 x 76 Pixel | Color Screen
Wireless Communication

2G/4G
Wi-Fi (802.11b/g/n), 2.4GHz (Optional)
Battery

3.7V/4000mAh/14.8Wh
3.7V/5200mAh/19.24Wh (Optional)
Card Slot

1 Nano SIM
eSIM (Optional)
Keys / Buttons

19 Keys: 10 numeric keys | 6 function keys | 1 Power ON/OFF | 1 Volume+ | 1 Volume-
Adjustable Backlight (Optional)
Audio

1 Speaker
Ports

1 USB Type-C
Adapter

Input: 100-240V AC, 50Hz/60Hz | Output: DC 5V/1A
Dimensions

143.2mm*88mm*145.6mm(L*W*H)
Weight

474g(Battery included)
Operating Environment

Operating Temperature:0°C~50°C (32°F~122°F)
Relative Humidity: 5%~95% (Non-Condensing)
Storage Environment

Storage Temperature: -20°C~60°C (-4°F~140°F )
Relative Humidity: 5%~95% (Non-Condensing)
Accessories

1m charging cable
1.5m data cable (Optional)
Certifications

PCI PTS 6.x | EMV L1 & L2 | EMV CL1 | Visa PayWave l MasterCard PayPass | Unionpay Quickpass | American Express | Discover D-PAS | JCB J/Speedy | WPC | Rupay | MasterCard TQM | Google smart TAP
