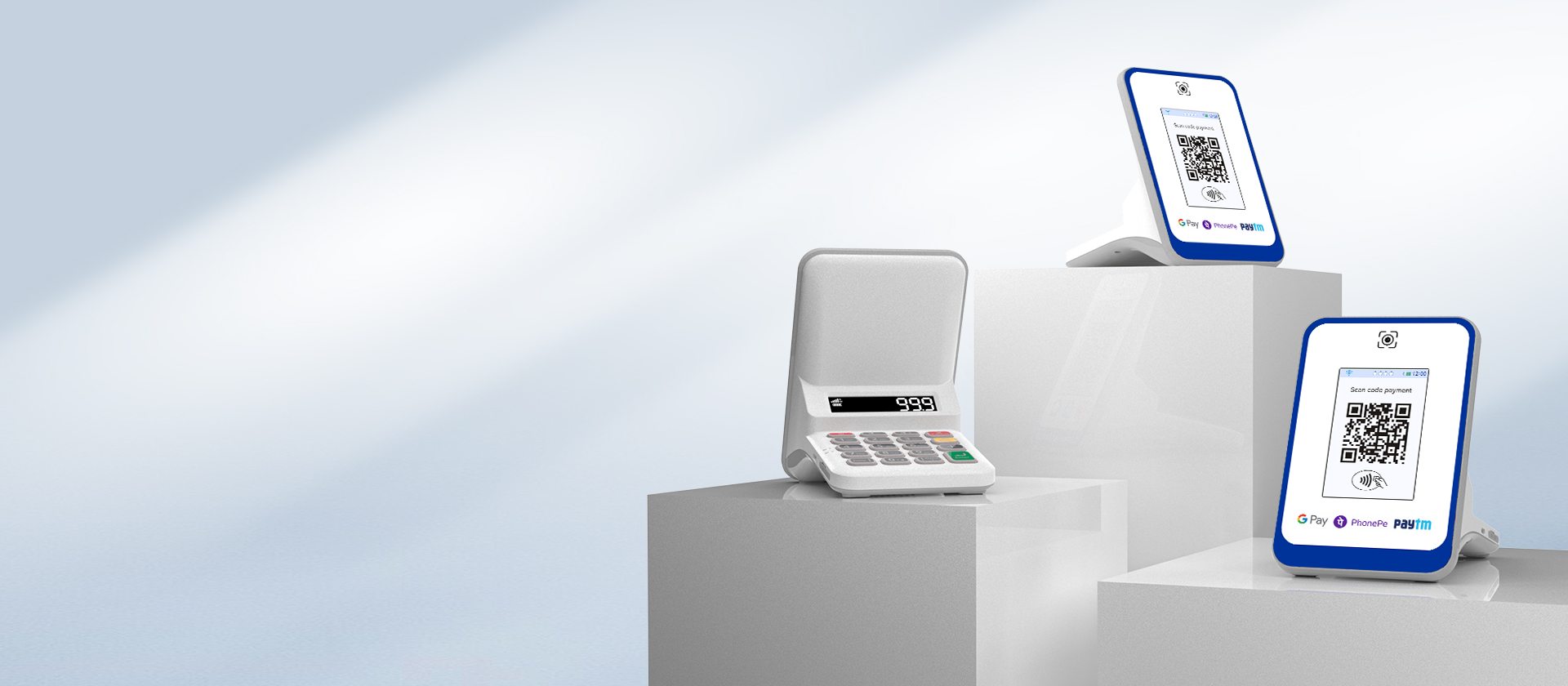

MDP820

NFC Card Payment Cloud Speaker

Smart payment, making business easier

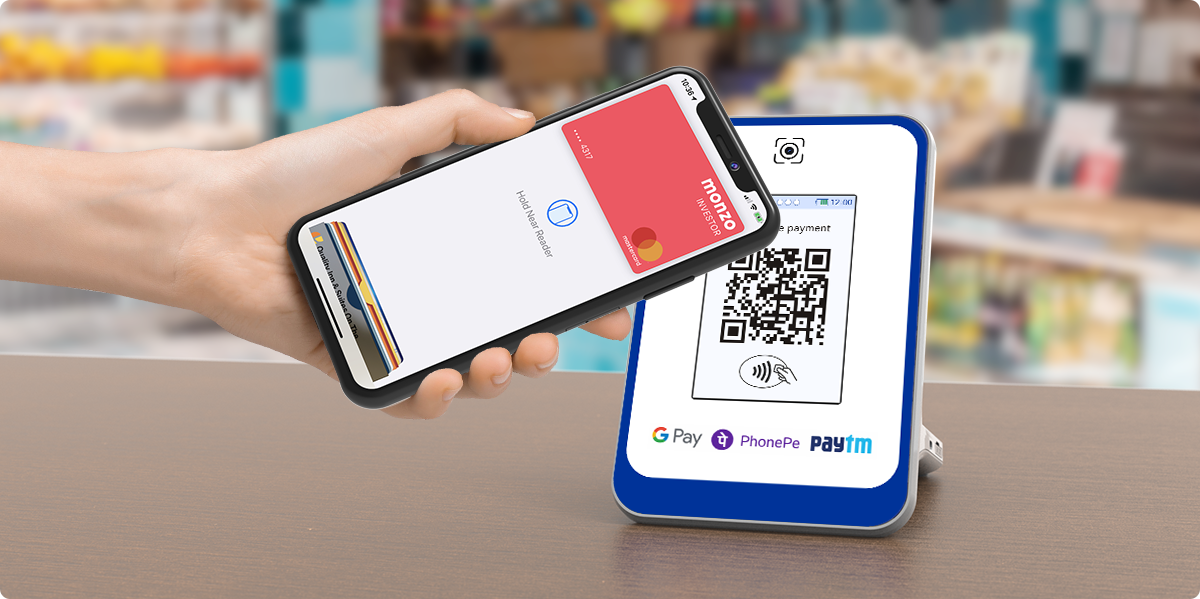

Touch and pay, opening a new era of convenient payment collection

Contactless payment, quick response, touch and pay, making payment collection easier than ever before.

Multi-function integration, more efficient payment collection

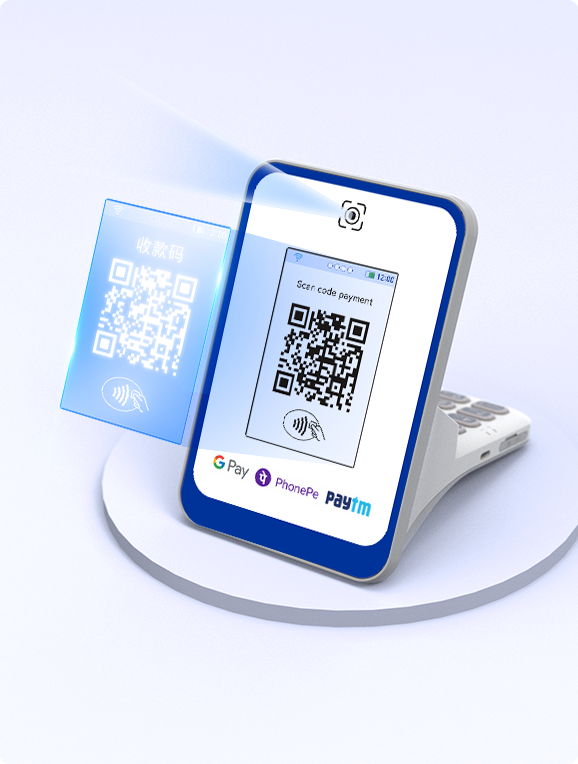

3.5-inch high-definition screen, real-time display of dynamic QR code

0.3MP camera, captures every detail, making payment faster
Secure payment, protect every transaction

Pass PCI, EMV, VISA, Mastercard and other certifications to ensure the security of the payment process and protect the financial security of merchants and customers

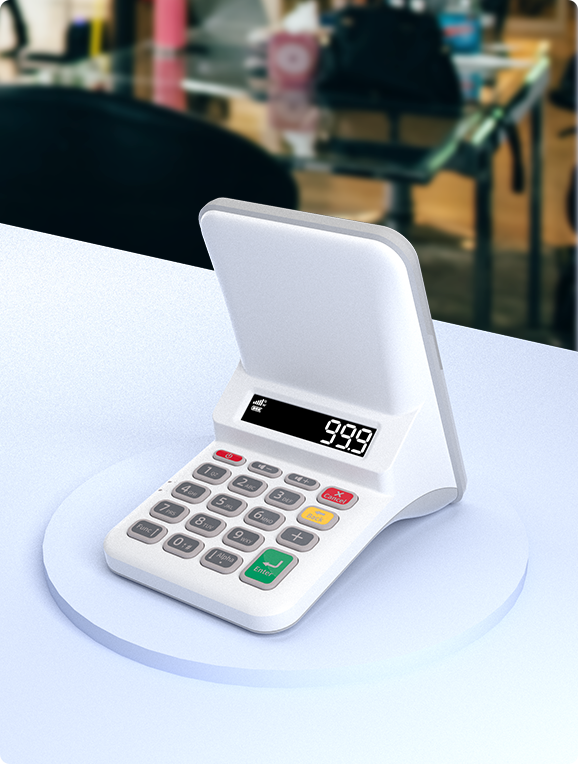

Receive money Visible and audible

7-digit 8-segment LCD screen allows the amount of money to be clearly visible

Built-in 3Ω/3W speaker ensures that the sound prompt of each transaction is clearly audible in a noisy environment

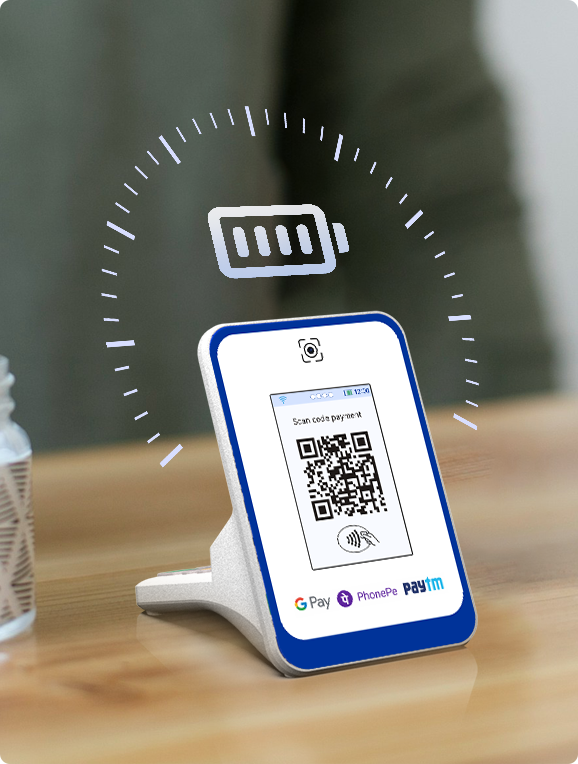

Long Battery Life

Built-in high-capacity battery, long battery life.

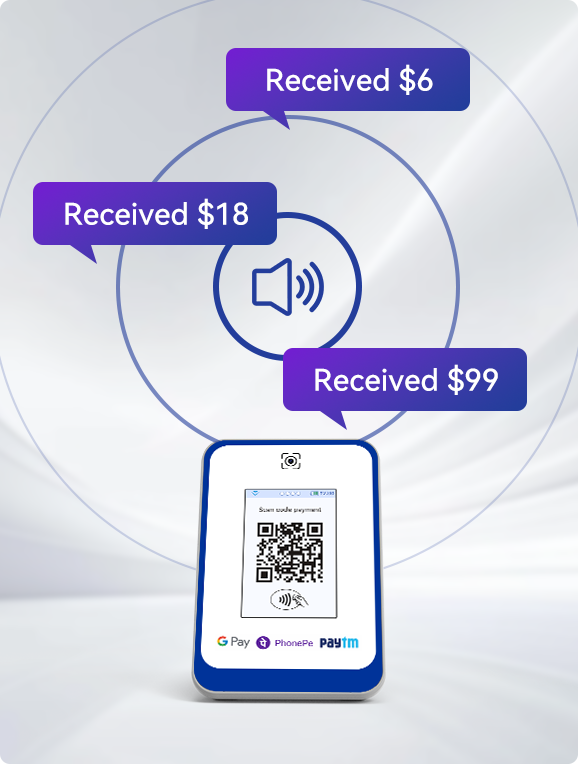

Real-time broadcast Reject missed orders

Using 4G (Cat.1) communication, broadcast faster and more stable, broadcast in real time, refuse to evade bills, and receive payment more assured.

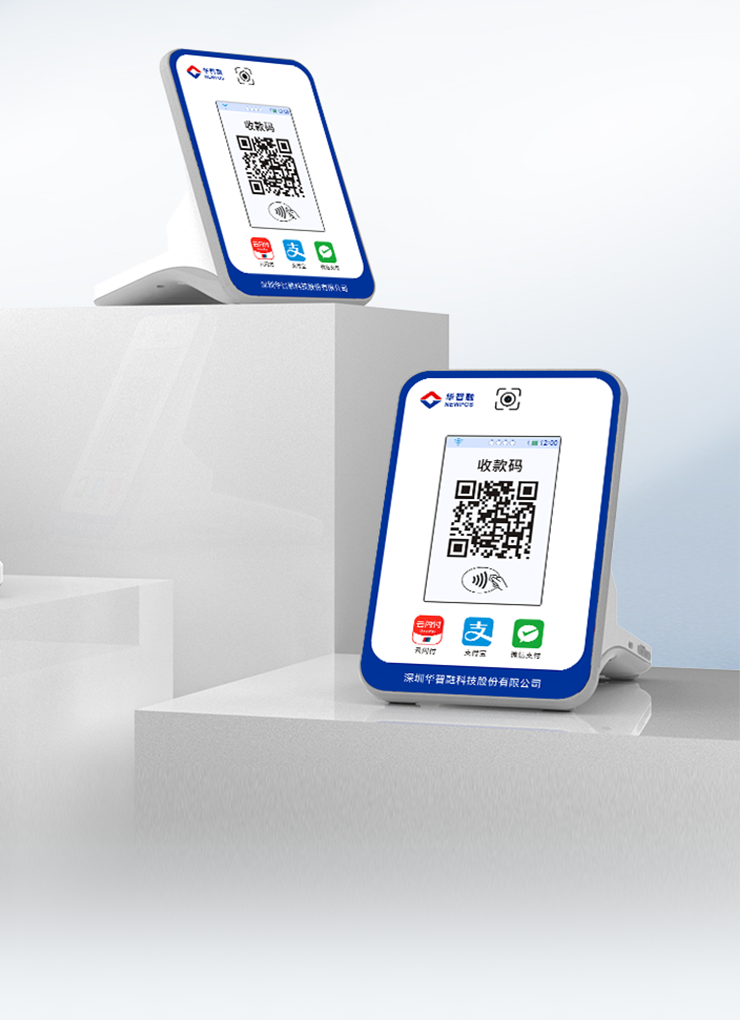

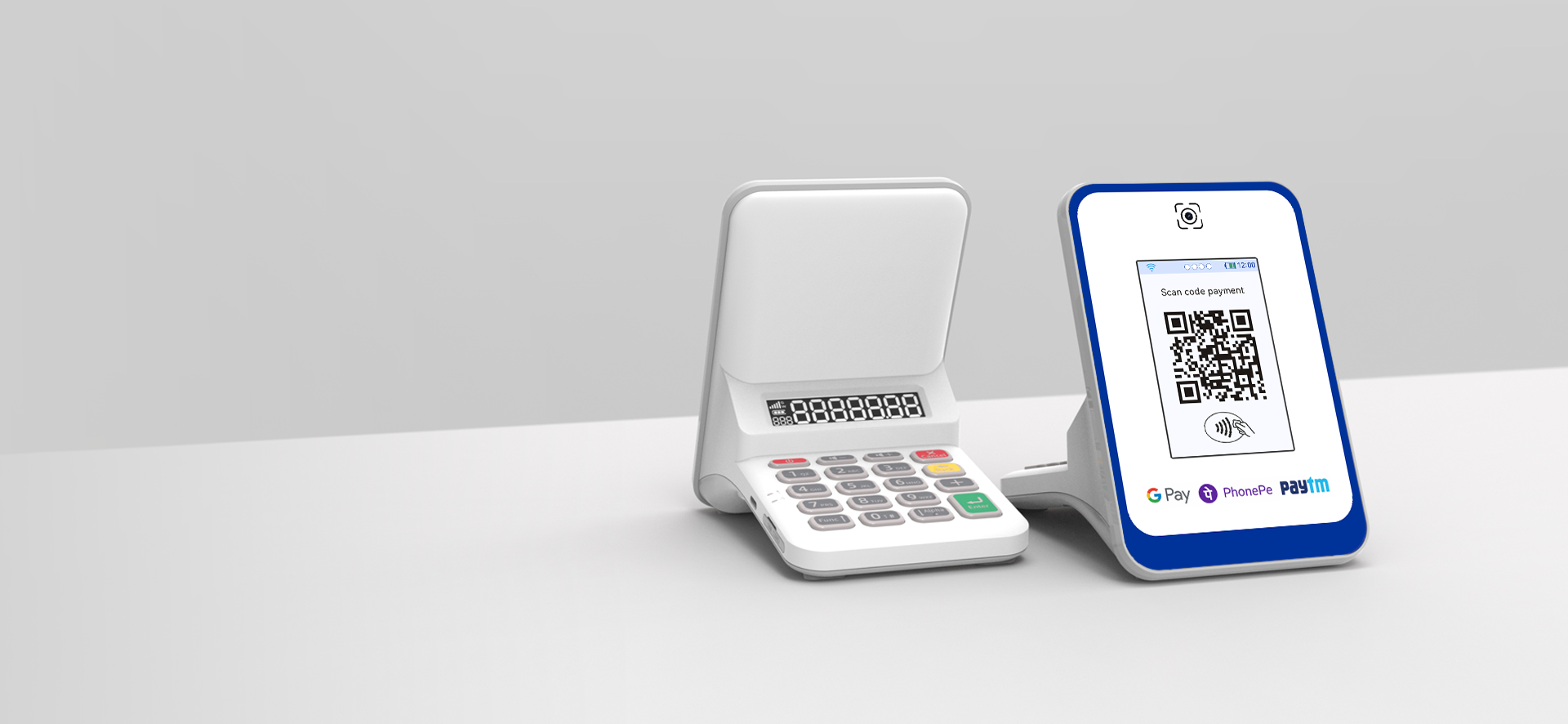

Integrated design, More convenient to carry

The code plate and the host are integrated with a lightweight and integrated design, which is suitable for use in all scenarios and is more convenient to carry.

Applicable Merchants

Market, Convenience Store, Fast Food, Snack, Cooked Food, Breakfast Shop, Sweet Tea, Cold Drink, etc.

Convenience Store Fast-Food Restaurant Vegetable Market Street Stall

Specifications

OS

RTOS
Processor

Cortex A5 500MHz + Secure Processor
Memory

16MB RAM + 24MB Flash
Card Readers

Contactless
LED Indicator

1 x Three-color state indicator | 1 x Charging indicator
Cameras

0.3MP Focus，SUPPORT QR Code 1D/2D
Displays(Customer)

3.5“ 320 x 480 Pixel | Color Screen
2.4“ 320 x 240 Pixel | Color Screen
Displays(Main)

7-Digit Segment Code Digital Screen
Wireless Communication

2G/4G
Wi-Fi (802.11b/g/n), 2.4GHz & Bluetooth5.0
Battery

3.7V/2000mAh/7.4Wh
Card Slot

1 Mini SIM
eSIM
Keys / Buttons

19 Keys: 10 numeric keys | 6 function keys | 1 Power ON/OFF | 1 Volume+ | 1 Volume- ; Adjustable Backlight
Audio

1 Speaker（3Ω , 3W）
Ports

1 USB Type-C
Adapter

Input: 100-240V AC, 50Hz/60Hz | Output: DC 5V/1A
Dimensions

138mm L×98mm W×135mm H
Weight

292g
Operating Environment

Operating Temperature: 0°C~50°C (32°F~122°F)
Relative Humidity: 5%~95% (Non-Condensing)
Storage Environment

Storage Temperature: -20°C~60°C (-4°F~140°F )
Relative Humidity: 5%~95% (Non-Condensing)
Other

Code cards can be customized
Certifications

PCI Non PED 6.x | EMV CL1 | Visa PayWave l MasterCard PayPass | RuPay | American Express | MasterCard TQM | CE
