NEW5310
Smart POS Terminal

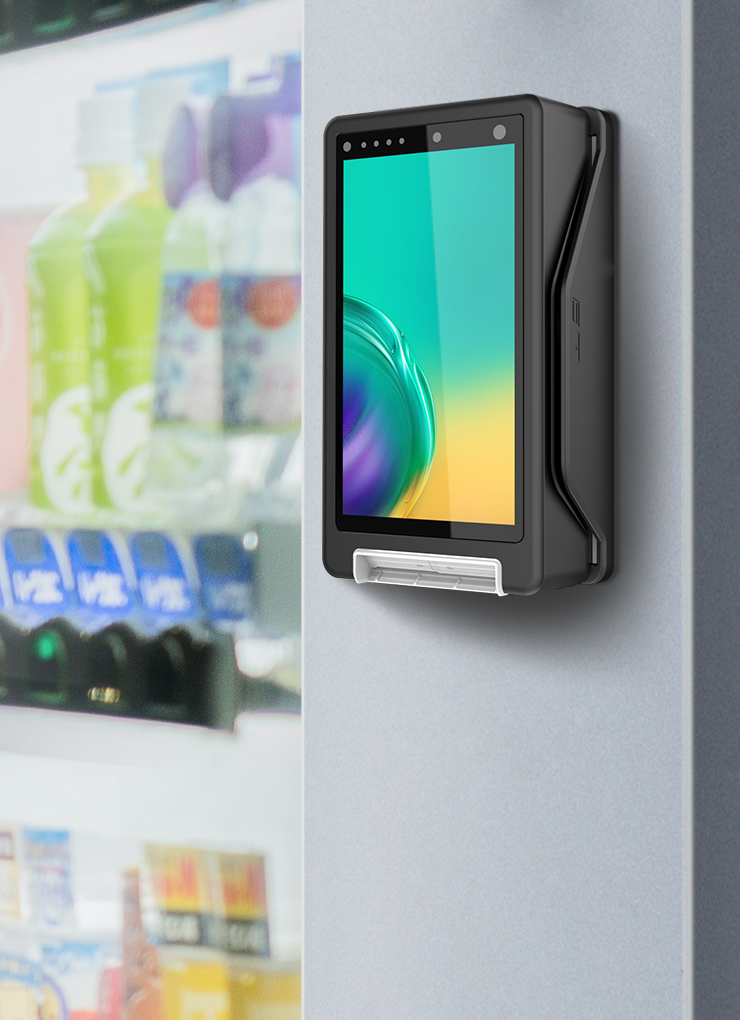

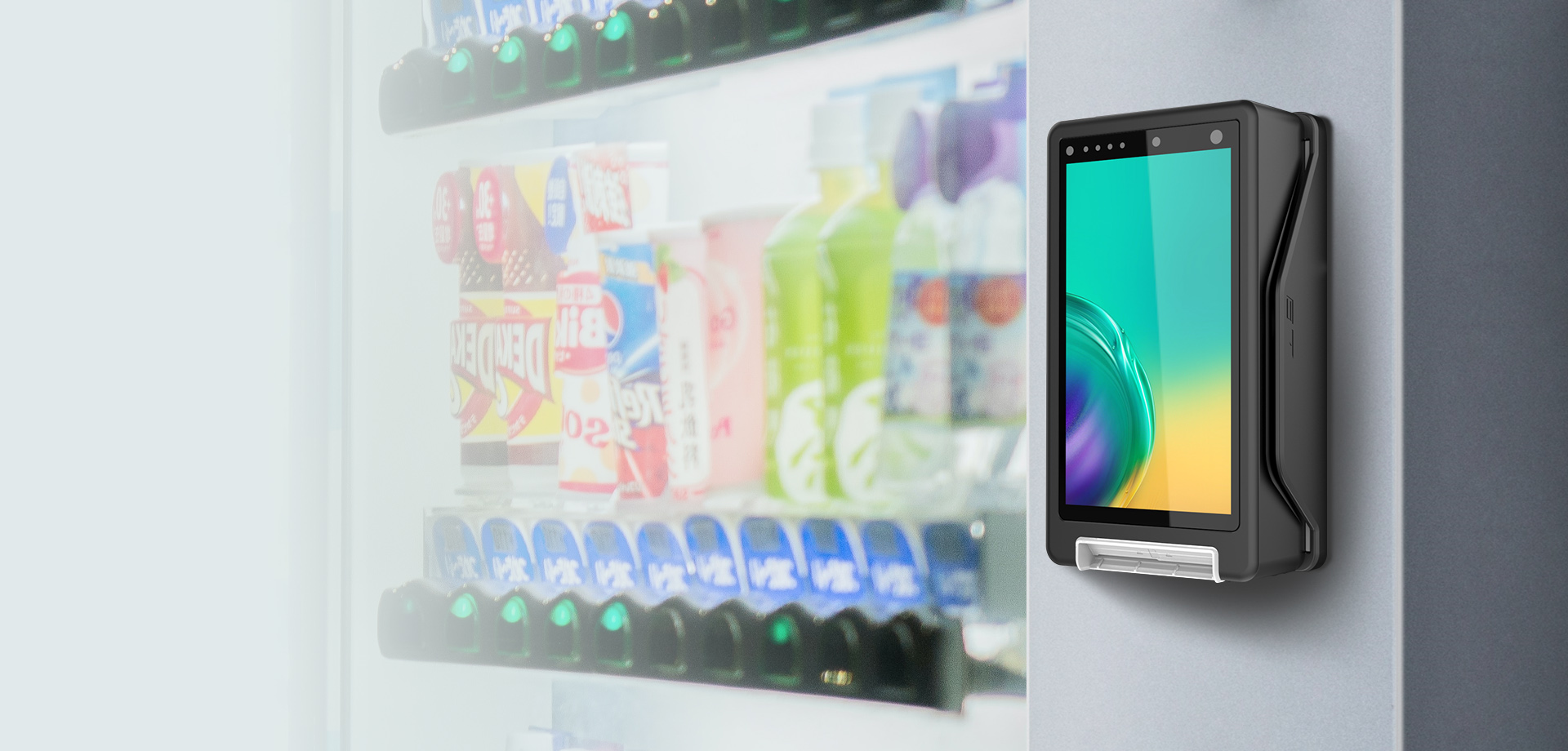

Designed to use in an unattended environment

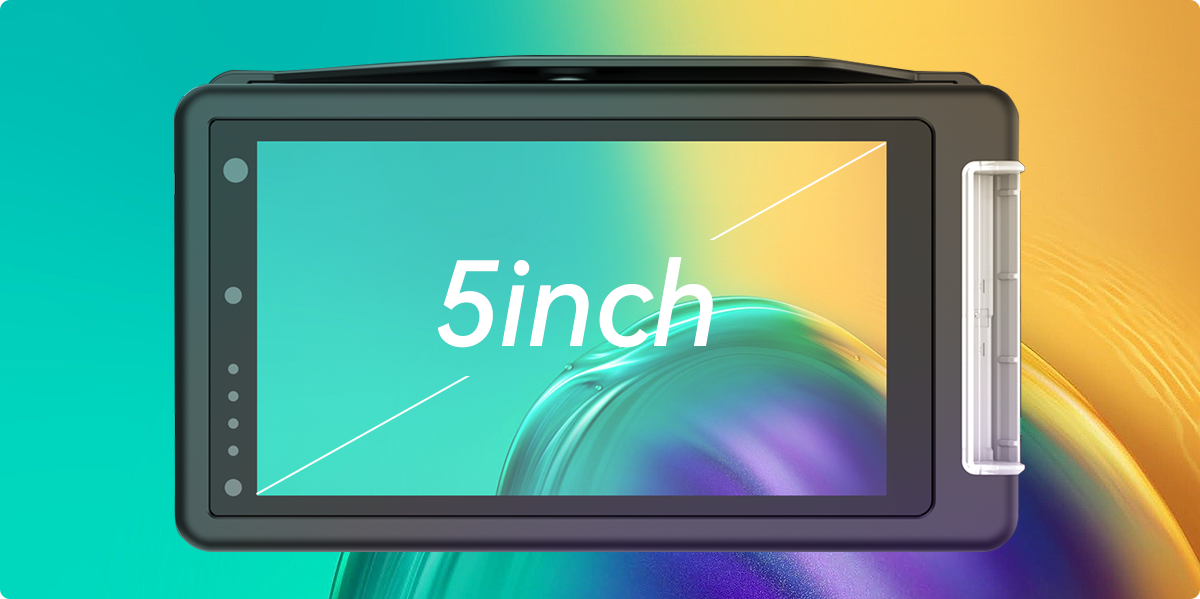

Splendid Screen Display
The 5.0-inch touch screen adjusts its brightness based on ambient lighting conditions and provides you with vivid images and fascinating interaction experience.
  • Multiple Network Connections
    With the help of multiple network connection, you can quickly and securely make payments or process data via 4G/ RS-232/Ethernet/ MDB/Wi-Fi.
  • Multiple Configurations
    NEW5310 is equipped with multiple superior interfaces and configurations that meet various needs.

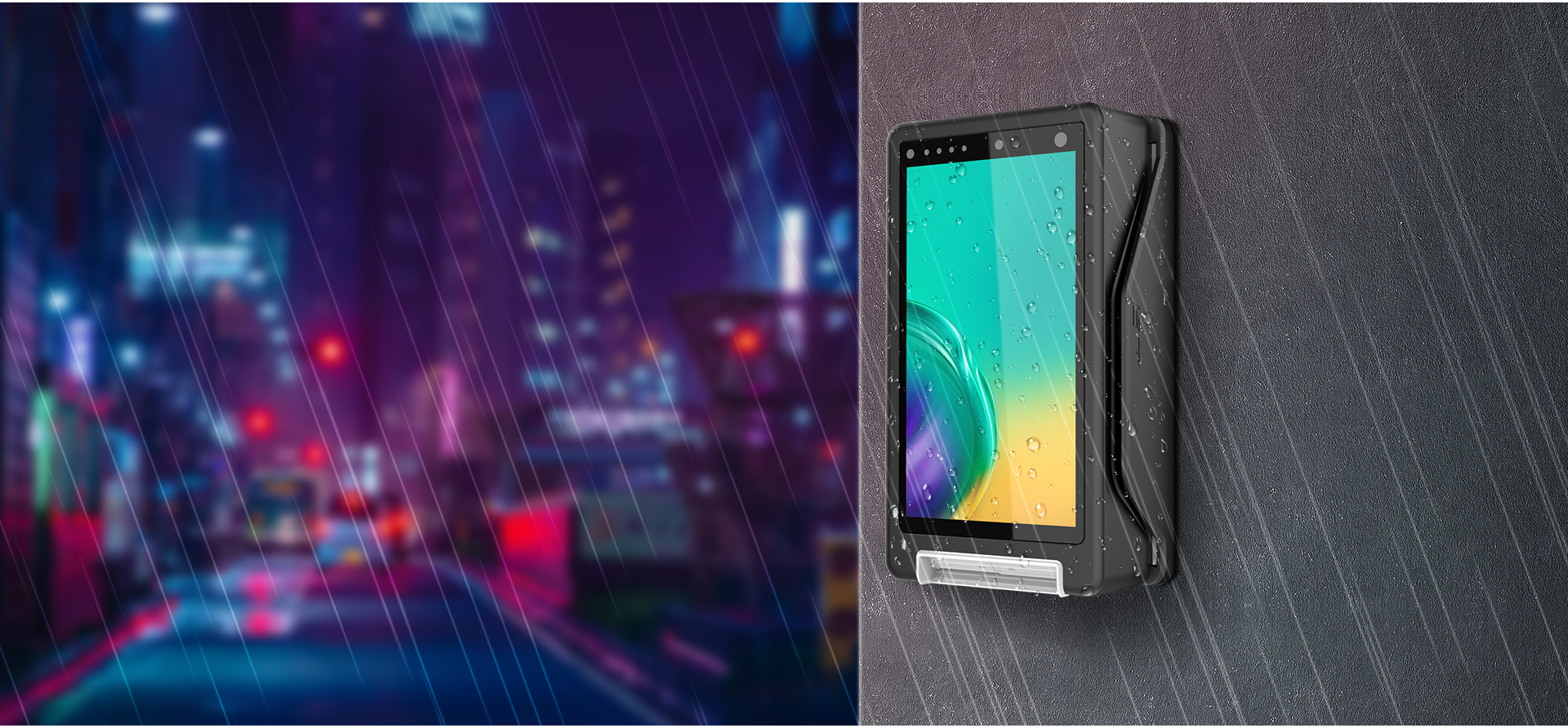

Excellent Durability

IP65 and IK08 protection of NEW5310 ensures the long-term outdoor use.

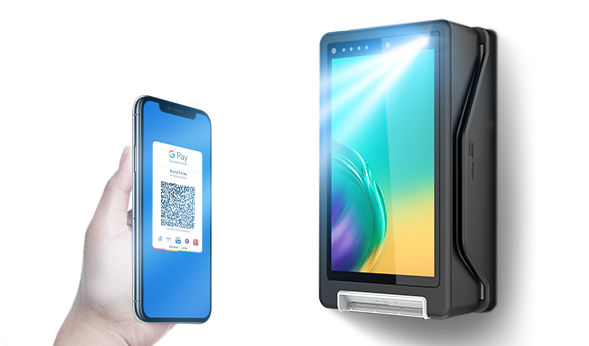

Supporting All Payments

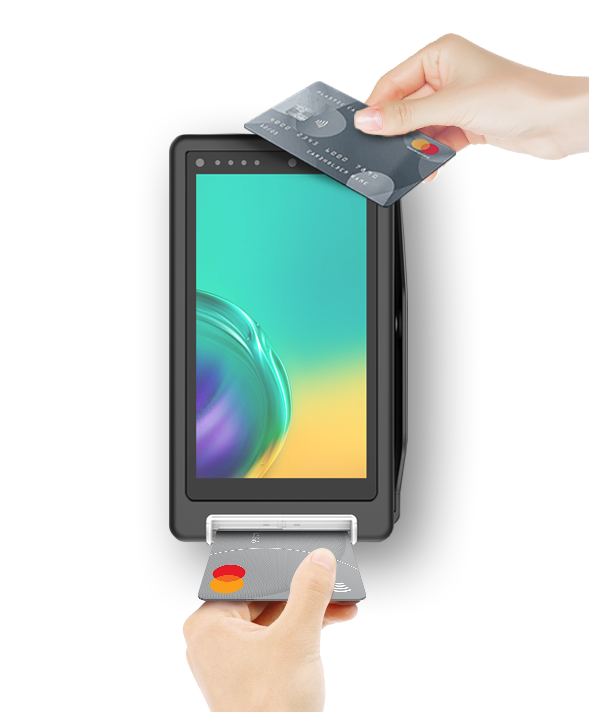

The NEW5310 accepts any payment method, from traditional Magnetic Card, IC card and contactless Card, to QR code transactions.

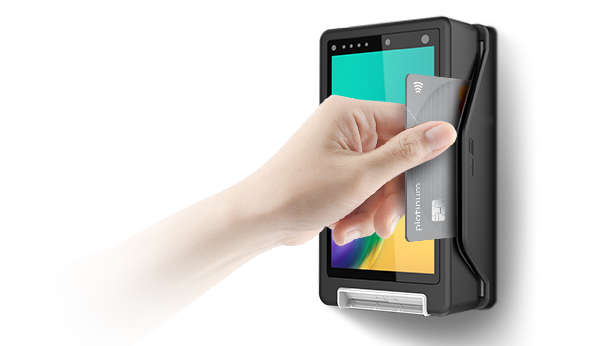

  • NFC / IC Card
  • QR Code
  • Magnetic Card
Specifications
  • CPU
    Quad-core
  • Memory
    1GB RAM+8GB ROM
    Supports Micro TF Card,
    up to 32GB.
  • Display
    5.0"HD
    720x1280 Pixels
  • Communication
    Wi-Fi, 4G(optional)
    RS-232, Ethernet 10/100M
    MDB
  • OS
    Asmart

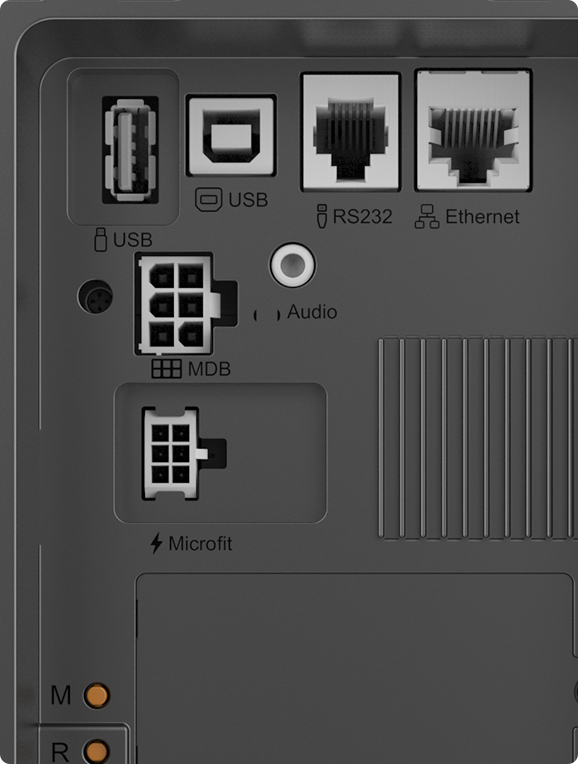

  • Wire communication
    Ethernet (8P8C) RS232 (6P6C, with power output 12V/0.5A) Micro fit 43045, power input socket. MDB (24~45 VDC),USB Host USB Device
  • Card Slots
    1×SIM
    1×SAM
    1×SD Card
  • Camera
    2MP, Reads 1D & 2D Codes
  • Buttons
    1 key for reset
    1 key for setup menu
  • Audios
    1 Built-in speaker
  • Power Supply
    12V DC, 2A
    (when using Micro fit)
    24 ~ 45V DC
    (when using MDB)
  • Flammability Rating
    ANSI/UL 94 V-0
  • Ingress Protection
    Ip65
  • Shock Protection
    Ik08
  • Working Environment
    Temperature:
    -20 ℃~60 ℃(-4℉~140℉)
    Humidity:
    5%~90% (non-condense)
  • Storage Environment
    Temperature:
    -25℃~70℃(-13℉~158℉)
    Humidity:
    5% ~95% (non-condense)
  • Dimensions
    L×W×H(mm):
    158.9×93.8×46.5
  • Weight
    710g
  • Certifications
    PCI PTS 5.x, EMV, PBOC, CE, FCC, RoHS, IP65 /ANSI UL 94V-0 , IK08, American express, Discover, JCB, PayPass, PayWave
