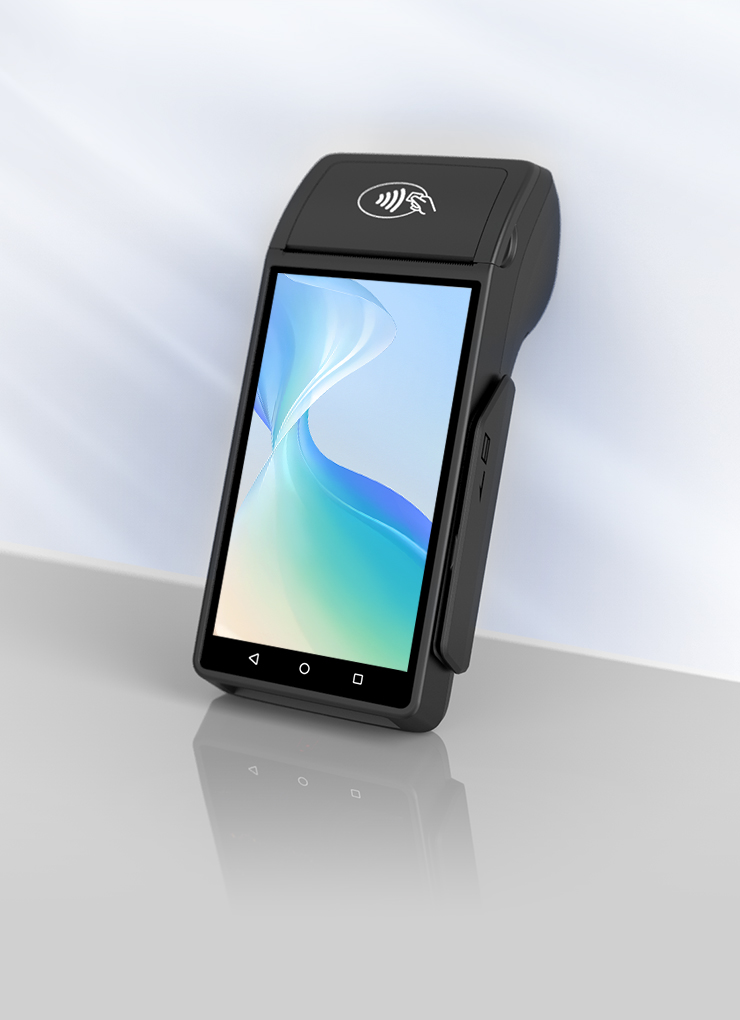

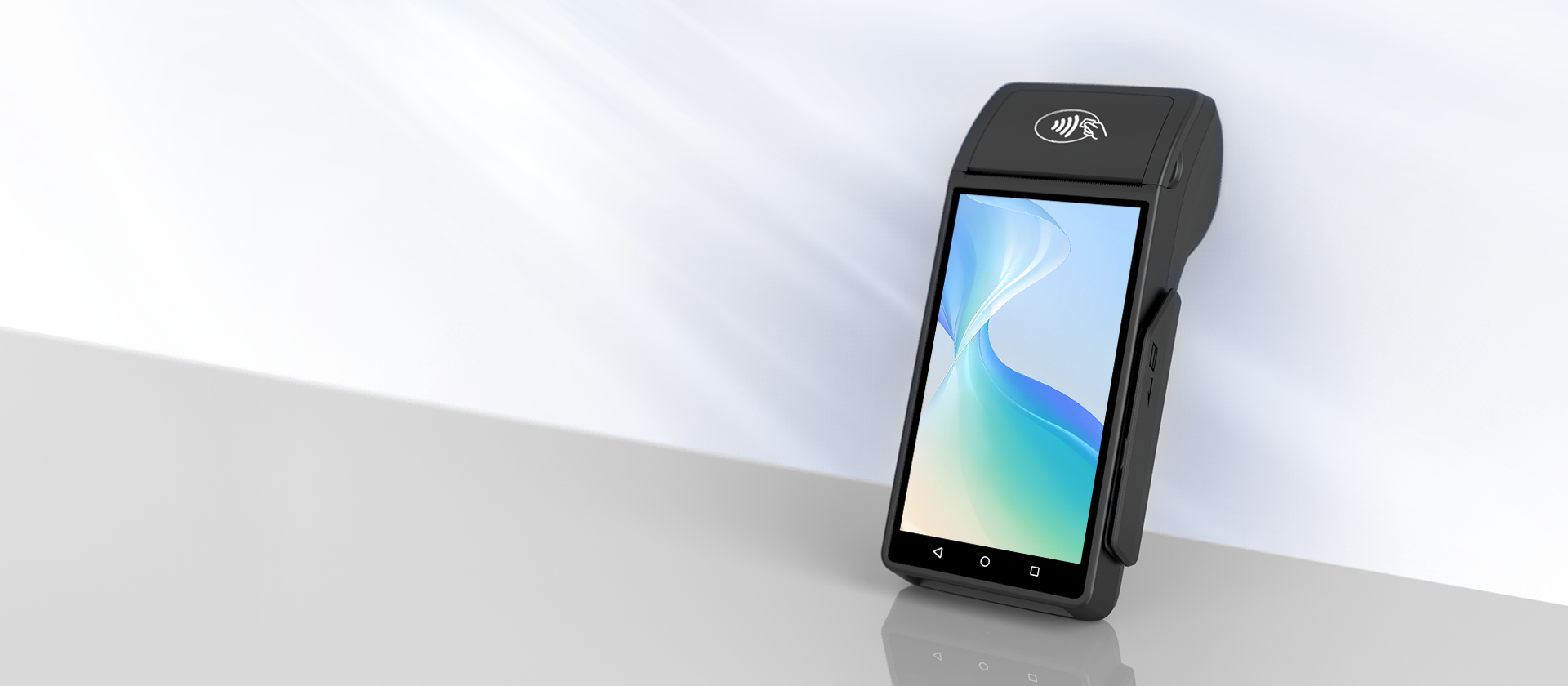

NEW9210H

Smart POS Terminal

Lightweight application, Smooth experience

CPU

ARM Cortex A5

Communication

2G/4G、WIFI
Laege Screen

480X854 Pixels
58mm

High-Speed Thermal printer
Battery

3.6V/5200mAh

Lightweight Service, Efficient Management

Lightweight applications run smoothly. Developed with JS high-level language, NEW9210H supports high-speed development and unified application programs, which adapt to multiple terminals and greatly benefit terminal management.

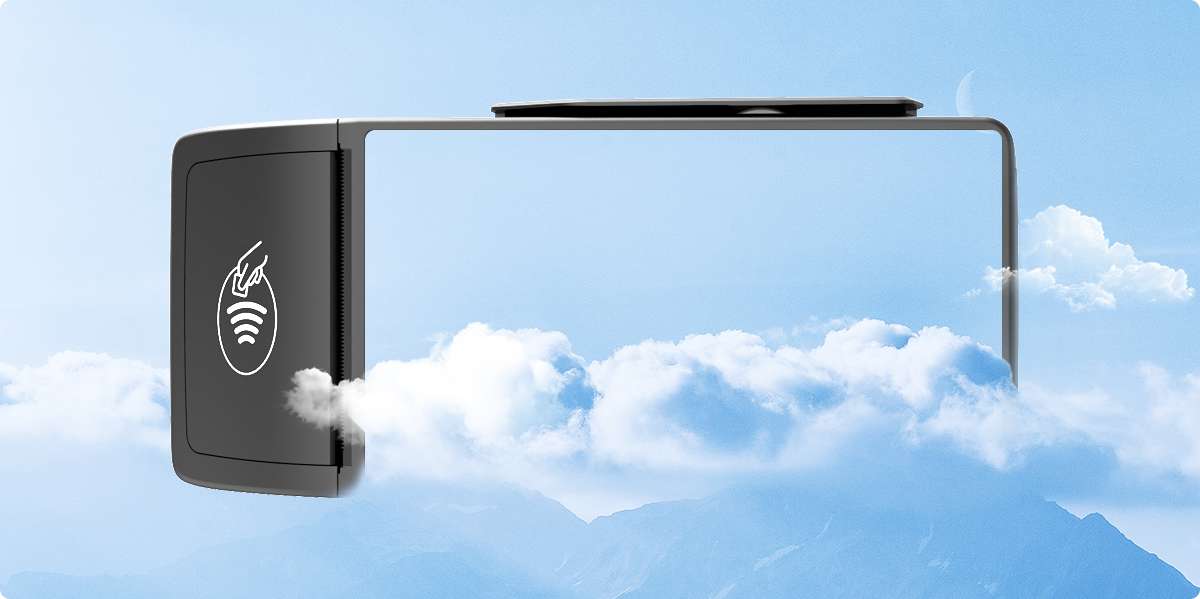

Sky in Your Hand

With a 5-inch full touch screen that fits perfectly for single-hand use and a user-friendly graphical UI design, NEW9210H presents you with clear images and an extraordinary interaction experience.

Multiple Connectivity Options

With the help of multiple wireless connectivity solutions, you can quickly and securely make payments or process data indoors and outdoors via 2G/4G, Wi-Fi.

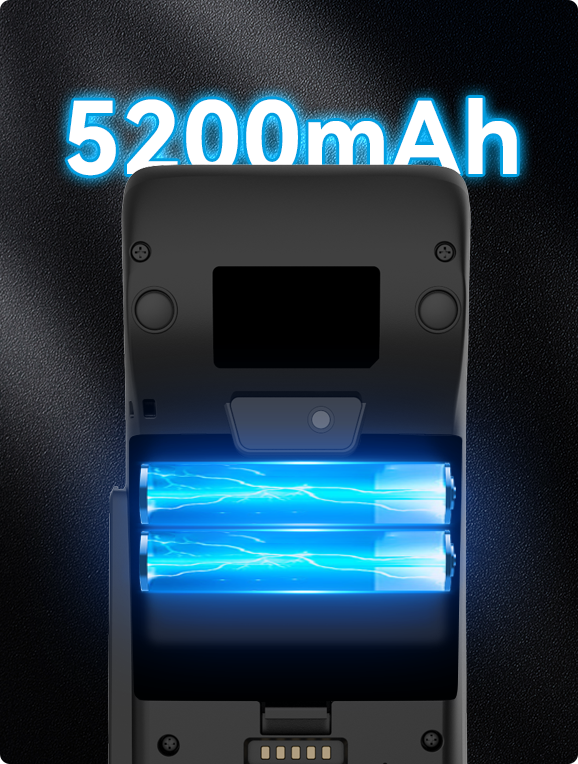

All-day Battery Life

Equipped with a 3.6V/5200mAh rechargeable large-capacity Li-ion battery, NEW9210H can be used continuously for a whole day.

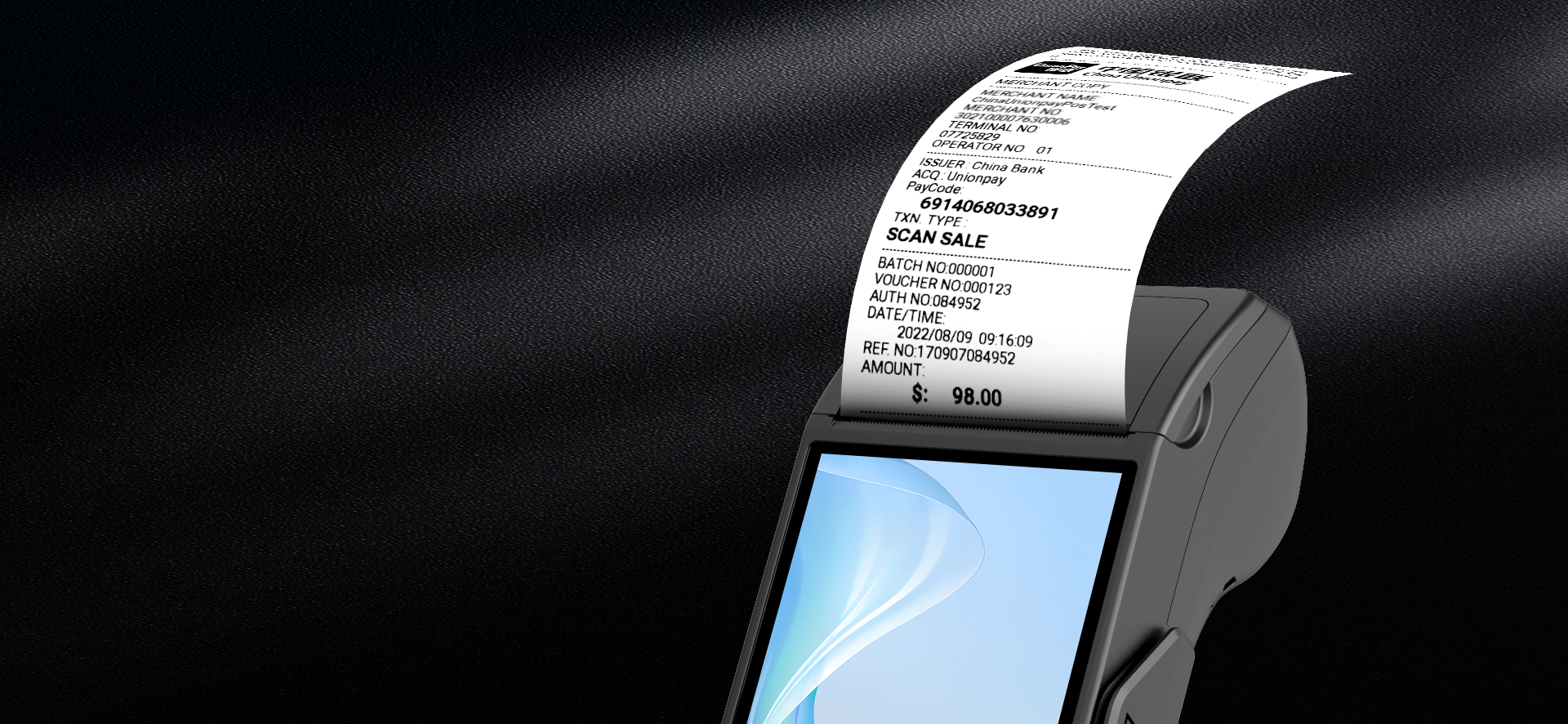

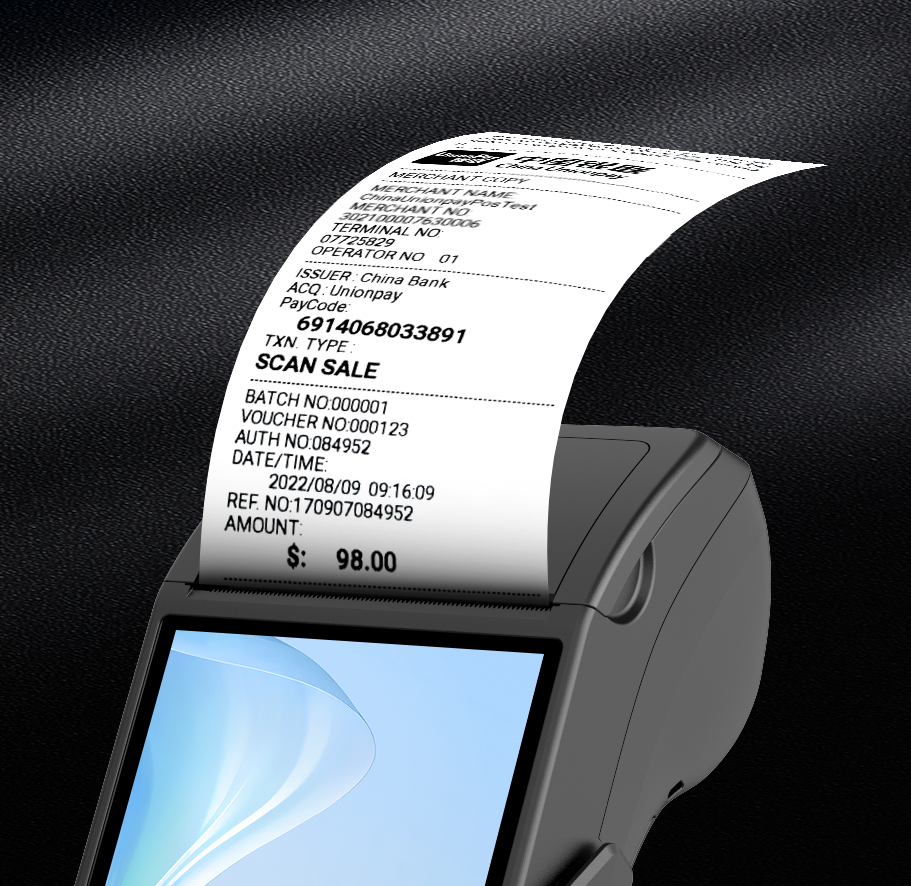

High-Speed and Portable Printer

The NEW9210H has a built-in high-speed thermal printer, which can easily and quickly print receipts anytime, anywhere.

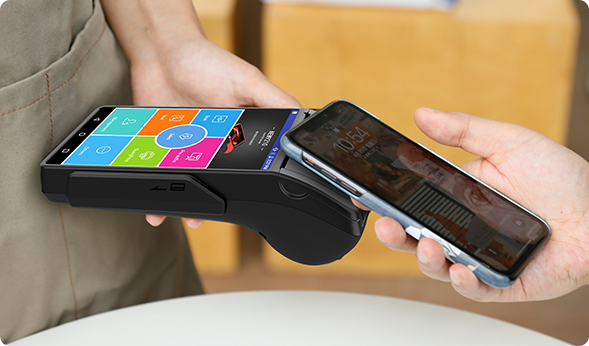

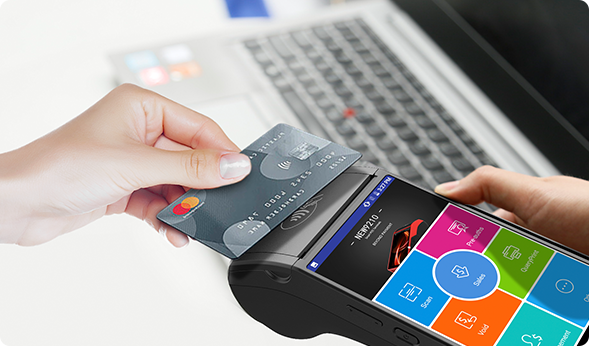

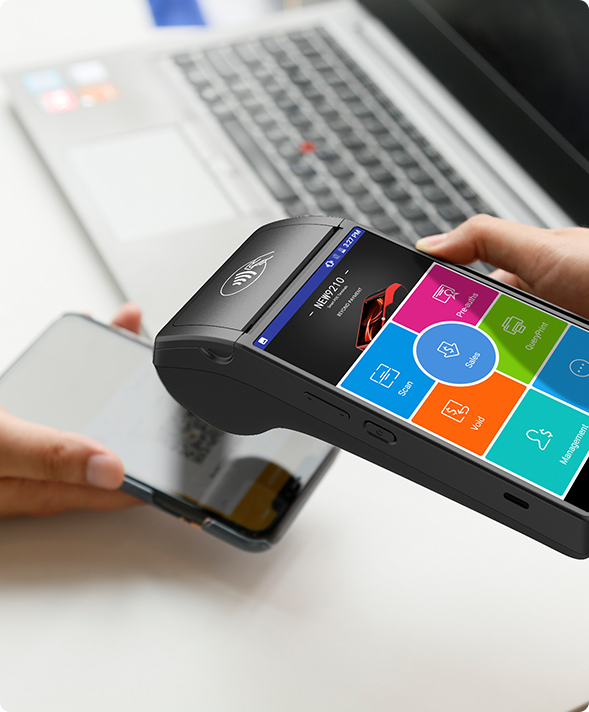

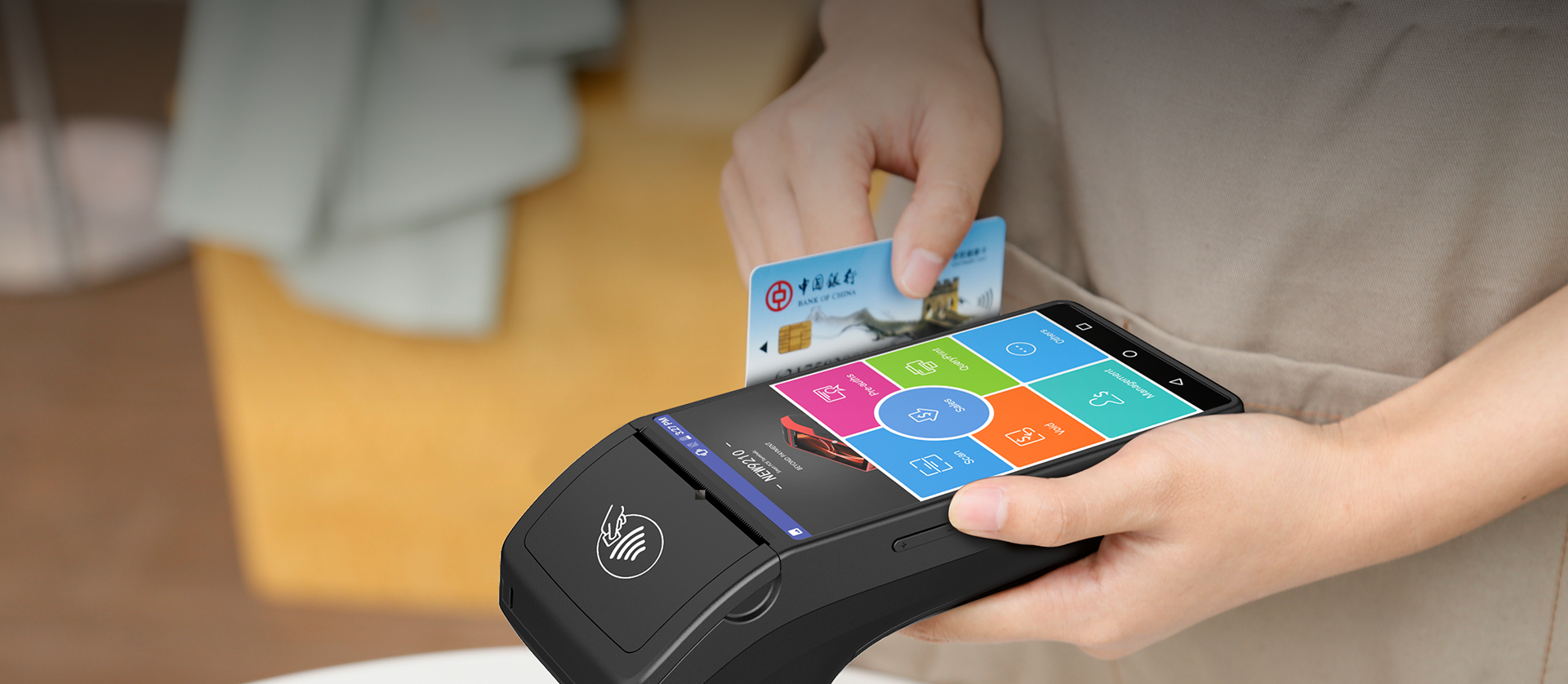

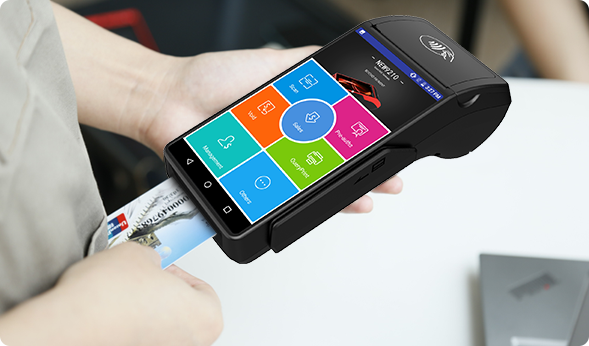

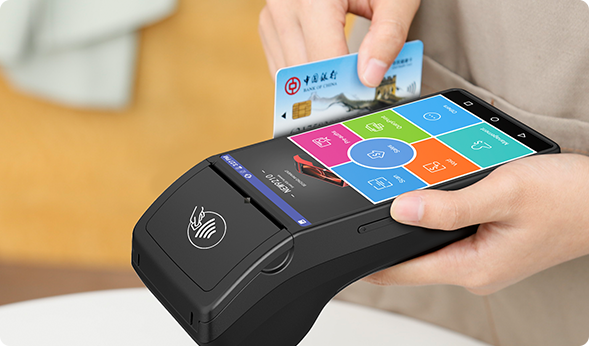

Supporting All Payments

The NEW9210H accepts any payment method, from traditional Magnetic Card、 IC card and contactless Card, to QR code transactions.

1D/2D QR
IC Card
Magnetic Card
Contactless Card
NFC

Flexible Adaptability

Dining room Bookstore Cafeteria Bar

Specifications

OS

Rsmart, Powered by RTOS
Processor

High performance application CPU + Secure Processor
Memory

16MB RAM + 24MB Flash
Card Readers

Magnetic Stripe | Chip & PlN | Contactless
Camera

0.3MP
Displays

5.0-inch LCD, 480×854 Pixels
Capacitive Touchscreen
Communications

2G/4G (LTE Cat.1)
Wi-Fi (802.11b/g/n), 2.4GHz
Battery

3.6V/5200mAh/18.72Wh
Printer

High-Speed Thermal Printer | Paper Roll Outer Diameter: 40mm | Paper width: 58mm
Card Slot

1 SIM + 1 SAM
2 SIM
Buttons

1 Power ON/OFF | Volume +/-
Audio

1 Speaker
Ports

1 USB Type-C Device
Adapter

Input: 100-240V AC, 50Hz/60Hz | Output: DC 5V/1A
Physical

184 x 84 x 58mm, 360g (including battery)
Operating Environment

Operating Temperature: 0°C~50°C (32°F~122°F)
Relative Humidity: 10%~90% (Non-Condensing)
Storage Environment

Storage Temperature: -20°C~60°C (-4°F~140°F )
Relative Humidity: 5%~95% (Non-Condensing )
Certifications

PCI PTS 6.x | EMV L1 & L2 | EMV CL1 | Visa PayWave | MasterCard PayPass | Unionpay Quickpass | American Express | Discover D-PAS | MasterCard TQM | CE | RoHS
